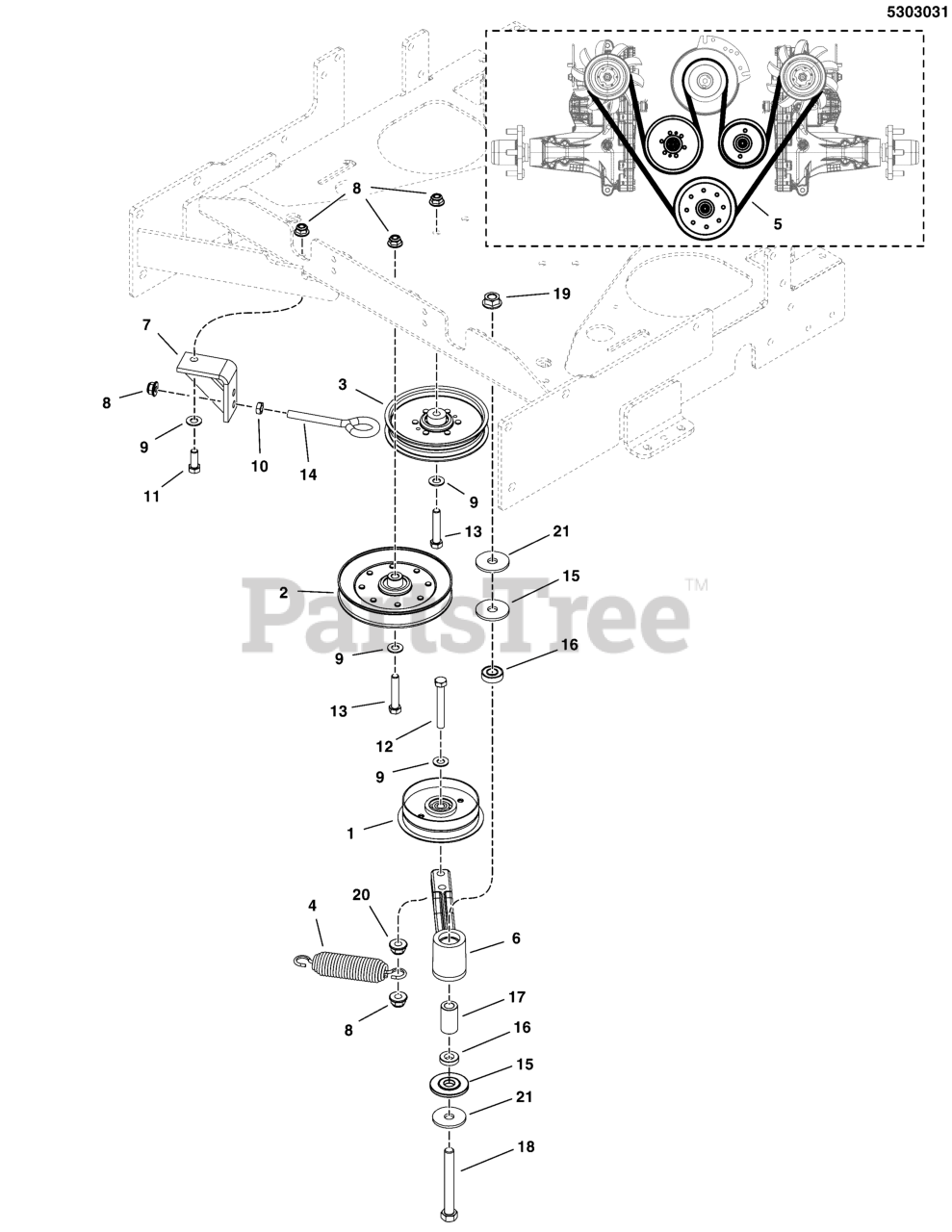

FM (5900520) - Ferris FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki Pump Drive Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki

Pump Drive Group Parts Diagram

  • Title

1

Ferris 5102496

PULLEY, IDLER, SINGLE FLANGE, 4" OD

$57.99

$

Usually ships in 2-12 days

0

2

Ferris 5102093

PULLEY-IDLER-V, 5.83OB, .38ID, .94W, STL
(Superseded to 5102093YP)

$52.99

$

In Stock, only 1 left!

0

3

Ferris 5101193

PULLEY-IDLER, 5.00OD, .385ID, .75W, STL
(Superseded to 5101193YP)

$65.99

$

In Stock, only 1 left!

0

4

Ferris 5100633

SPRING-EXT, 1.25 ODX5.70LGX.142WR, BLK
(Superseded to 5100633YP)

$34.99

$

Usually ships in 2-12 days

0

5

Ferris 5100034

BELT, A-SEC, 100.00EL, ARAMID, WRPD
(Superseded to 5100034FS)

$67.99

$

Usually ships in 2-12 days

0

6

Ferris 5411066

ASSM, IDLER ARM, PUMP DRIVE, 1/2ID, CAST

Note: (Includes item #15-17)

$130.99

$

Usually ships in 2-12 days

0

7

Ferris 5045200B

WELD, ANCHOR EYEBOLT

$29.99

$

In Stock, only 2 left!

0

8

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 5

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

12

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

13

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

15

Ferris 5103262

SPACER, IDLER ARM, 1/2"
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 5

0

16

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 6

0

17

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

$7.99

$

In Stock, only 2 left!

0

18

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

19

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 4 left!

0

20

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

21

Ferris 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

$3.99

$

In Stock, only 1 left!

0
