FM (5900520) - Ferris FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki Rotor & Blades Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki

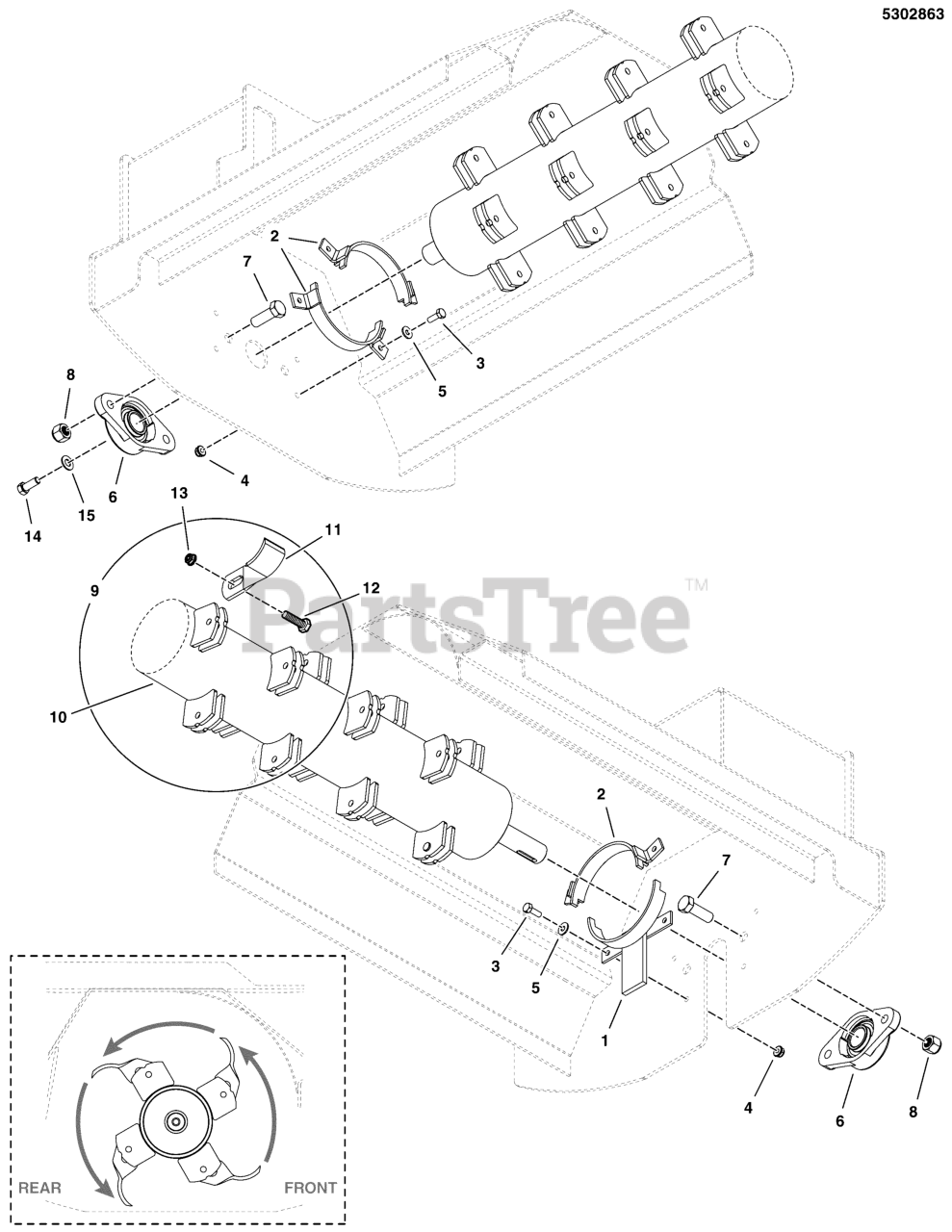

Rotor & Blades Group Parts Diagram

  • Title

1

Ferris 5408747A

WELD, ROTOR GUARD, LH BTM - BLK
(Superseded to 5408747AFS)

$62.99

$

Usually ships in 2-12 days

0

2

Ferris 5408786A

WELD, ROTOR GUARD - BLK
(Superseded to 5408786AFS)

$53.99

$

Usually ships in 2-12 days

0

3

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

4

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5103201

BEARING, 2 BOLT FLANGE, 1", CAST
(Superseded to 5103201FS)

Note: (S/N: 4000223355 and below)

$67.99

$

Usually ships in 2-12 days

0

6

Ferris 5107775

BEARING, 2-BOLT FLANGE, 25MM
(Superseded to 5107775FS)

Note: (S/N: 4000223356 and above)

$39.99

$

Usually ships in 2-12 days

0

7

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

In Stock, only 1 left!

0

8

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

9

Ferris 5104006

48" ROTOR ASM. & BAL, FLAIL

Note: (S/N: 4000223355 and below)

$

$

Currently unavailable

9

Ferris 5107774

ROTOR ASSM, 48, FLAIL
(Superseded to 5107774FS)

Note: (S/N: 4000223356 and above)

$2845.99

$

Usually ships in 2-12 days

0

10

48" ROTOR

Note: (Replace with item #9).

$

$

Not available

11

Ferris 5103210

CUTTER, FLAIL, 1-3/8 X 3.0, FINISH

$6.99

$

Usually ships in 2-12 days

0

12

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

13

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

Note: (S/N: 4000223355 and below)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025692

BOLT, M12 X 1.75 X 25MM, CZ

Note: (S/N: 4000223356 and above)

$

$

Currently unavailable

15

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

Note: (S/N: 4000223355 and below)

$4.49

$

In Stock, only 1 left!

0

15

Ferris 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

Note: (S/N: 4000223356 and above)

$6.99

$

Usually ships in 2-12 days

0
