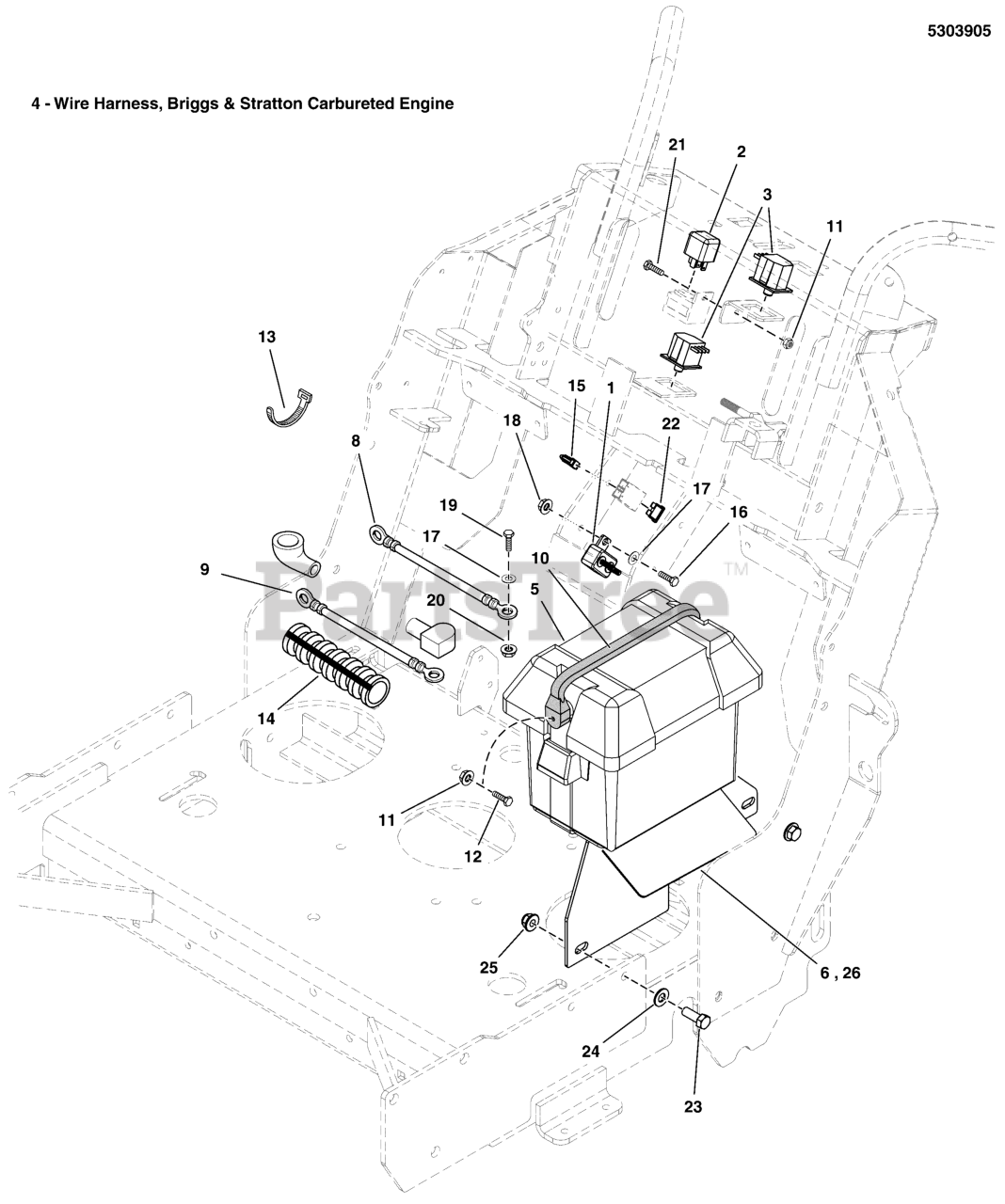

FM (5901453) - Ferris FM Series 48" Walk-Behind Flail Mower, 26hp Briggs & Stratton Electrical Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 26hp Briggs & Stratton

Electrical Group Parts Diagram

  • Title

1

Ferris 1665238

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB
(Superseded to 1665238SM)

Note: (S/N: 4000223355 and below)

$14.99

$

In Stock, only 1 left!

0

2

Ferris 5021766

RELAY, 12 VOLT, 40 AMP
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

3

Ferris 5101280

SWITCH, PLUNGER, NO/NC SNAP-IN, LOW PROFILE
(Superseded to 5101280YP)

$30.99

$

Usually ships in 2-12 days

0

4

Ferris 5413416

WIRE HARNESS, SW35, BV, NO BRAKE

Note: (S/N: 4000223355 and below)

$432.99

$

Usually ships in 2-12 days

0

4

Ferris 5105538

HARNESS, WALK BEHIND, WIRING
(Superseded to 5105538FS)

Note: (S/N: 4000223356 and above)

$195.99

$

Usually ships in 2-12 days

0

5

Ferris 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

6

Ferris 5412210A

WELD, BATTERY MOUNT, SW35 - BLK

Note: (S/N: 2017170234 and Below)

$136.99

$

Usually ships in 2-12 days

0

7

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

8

Ferris 5101396

CABLE, BATTERY, NEG, 30, 1/4-5/16
(Superseded to 5101396YP)

$35.99

$

Usually ships in 2-12 days

0

9

Ferris 5044876

BATTERY CABLE, POS, 35, 1/4-5/16
(Superseded to 5044876SM)

$29.99

$

Usually ships in 2-12 days

0

10

Ferris 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

Usually ships in 2-12 days

0

11

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

14

Ferris 5050927X27

WIRE LOOM, 3/8 ID X 27" LONG
(Superseded to 5050927X27FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

16

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

17

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

19

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

20

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

22

Ferris 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

26

Ferris 5413945A

WELD, BATTERY MOUNT, W35 - BLK

Note: (S/N: 2017170235 and Above)

$

$

Currently unavailable
