FM (5901453) - Ferris FM Series 48" Walk-Behind Flail Mower, 26hp Briggs & Stratton Motion Control Group - Drive Levers & Operator Presence Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 26hp Briggs & Stratton

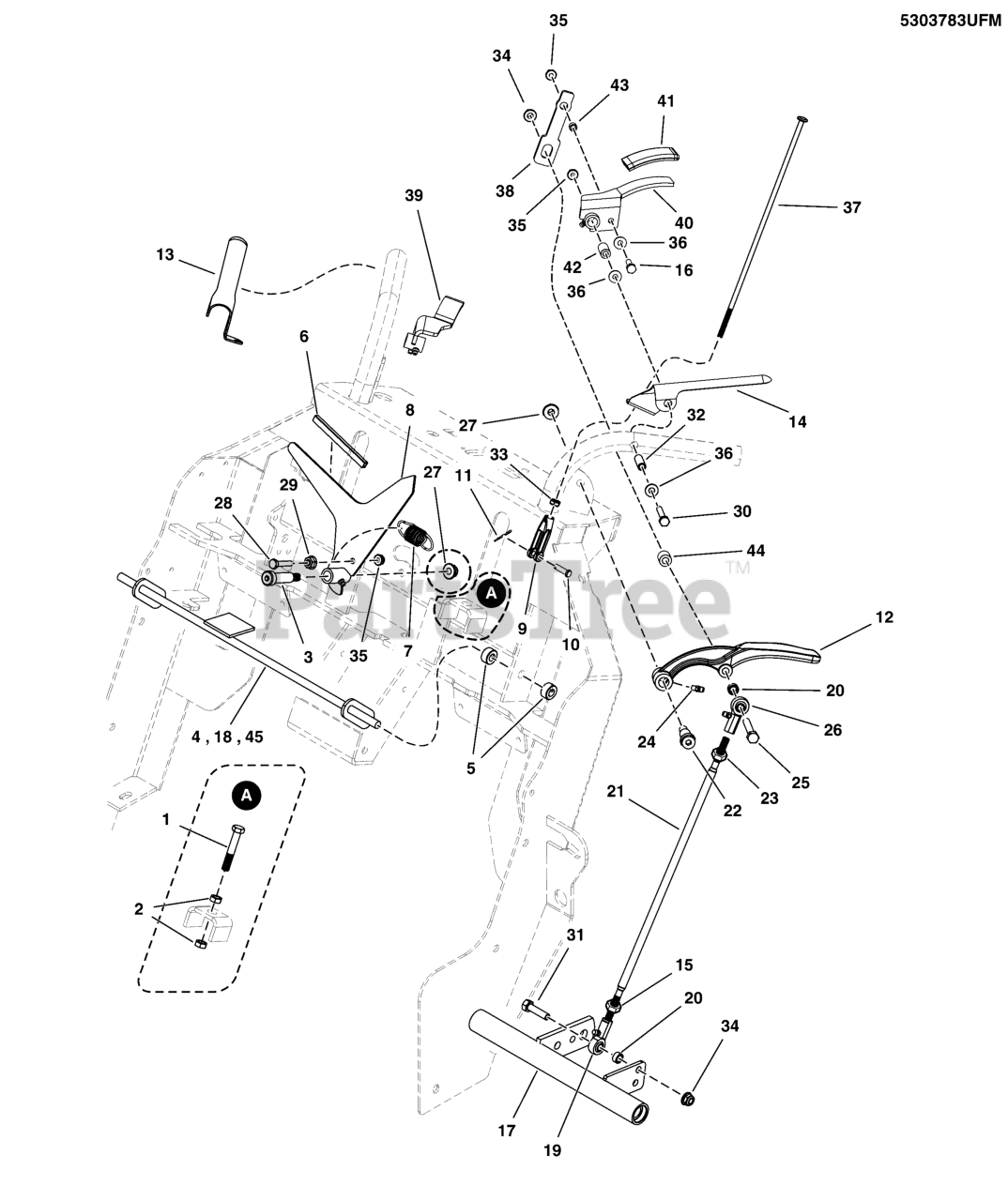

Motion Control Group - Drive Levers & Operator Presence Parts Diagram

  • Title

1

Ferris 5025426

BOLT, 1/2-20 X 2-1/2, FLT
(Superseded to 5025426FS)

$14.99

$

Usually ships in 2-12 days

0

2

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$4.49

$

In Stock, only 2 left!

0

3

Ferris 5025220

BOLT-3/8-16 x 1-1/2, 1/2 SHOULDER
(Superseded to 5025220SM)

$12.99

$

Usually ships in 2-12 days

0

4

Ferris 5412020A

WELD, OPC ROD, WALK - BLK

Note: (S/N: 2017118253 & Below)

$65.99

$

Usually ships in 2-12 days

0

5

Ferris 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

In Stock, only 2 left!

0

6

Ferris 5104568

U-CHANNEL, RPVC #6236 X 4"
(Superseded to 5104568FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5105337

SPRING, EXT, 0.525 X 0.058 X 2.250 SS
(Superseded to 5105337FS)

$8.49

$

Usually ships in 2-12 days

0

8

Ferris 5413413A

WELD, SPEED INDICATOR, LOCK OUT - BLK

$36.99

$

Usually ships in 2-12 days

0

9

Ferris 84007748

CLEVIS

$14.99

$

Usually ships in 2-12 days

0

10

Ferris 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

11

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5102556A

HANDLE, REVERSING - BLK
(Superseded to 5102556AAFS)

$40.99

$

Usually ships in 2-12 days

0

13

Ferris 5104201A

NLA - FLAP, OPS - BLK
(Superseded to 5104201AAFS)

$33.99

$

Usually ships in 2-12 days

0

14

Ferris 5104202A

NLA - FLAP, OPS - BLK

$

$

Not available

15

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

In Stock, only 1 left!

0

16

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 11

0

17

SEE MOTION CONTROL GROUP - FORWARD SPEED CONTROL LEVER AND SPRING ASSEMBLIES

$

$

Not available

18

Ferris 5413926A

WELD, OPC ROD, WALK - BLK

Note: (S/N: 2017118254 - 2017170235)

$64.99

$

Usually ships in 2-12 days

0

19

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$19.99

$

In Stock, only 2 left!

0

20

Ferris 5102463

SPACER, .33 X .50 X .25, CZ
(Superseded to 5102463YP)

$5.99

$

In Stock, only 4 left!

0

21

Ferris 5104159

ROD, 5/16-24 X 15.48, LH-RH, CZ
(Superseded to 5104159FS)

$9.99

$

Usually ships in 2-12 days

0

22

Ferris 5109888

BOLT, 3/8-16 X 1/2, 1.00 SHOULDER, CZ
(Superseded to 5109888FS)

$8.49

$

Usually ships in 2-12 days

0

23

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5025011X24

BOLT, 5/16-18 X 3" GD5
(Superseded to 5025011X24SM)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$19.99

$

In Stock, only 2 left!

0

27

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

28

Ferris 5025010X10

BOLT, 1/4-20 X 1-1/4, GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 7

0

29

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

30

Ferris 5025010X24

BOLT, 1/4-20 X 3" GD5
(Superseded to 5025010X24YP)

$3.99

$

Usually ships in 2-12 days

0

31

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4, GD5
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

32

Ferris 5101215

SPACER, .26 X .38 X 1.25, CZ
(Superseded to 5101215YP)

$8.99

$

Usually ships in 2-12 days

0

33

Ferris 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

34

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

35

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

36

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

37

Ferris 5101242

ROD, OPC LINK, SNP PRO WB
(Superseded to 5101242FS)

$5.49

$

Usually ships in 2-12 days

0

38

Ferris 5408615AA

LINK, THUMB CONTROL - BLACK
(Superseded to 5408615AAFS)

$5.99

$

Usually ships in 2-12 days

0

39

Ferris 5408617A

WELD, THUMB CONTROL, RH - BLK

$

$

Currently unavailable

40

Ferris 5408616A

WELD, THUMB CONTROL, LH - BLK

$51.99

$

Usually ships in 2-12 days

0

41

Ferris 5103457

GRIM, FOAM, 1/8" X 1.13" X 2.75"
(Superseded to 5103457FS)

$4.49

$

Usually ships in 2-12 days

0

42

Ferris 5100832

SLEEVE CRUISE CONTROL, ROLLER
(Superseded to 5100832FS)

$6.49

$

Usually ships in 2-12 days

0

43

Ferris 5102813

SPACER, .265 X .375 X .250, CZ
(Superseded to 5102813FS)

$15.99

$

Usually ships in 2-12 days

0

44

Ferris 5103225

SPACER, .33 X .625 X .88, STEP, CZ
(Superseded to 5103225FS)

$10.99

$

Usually ships in 2-12 days

0

45

Ferris 5414516A

WELD, OPC ROD, WALKBEHIND - BLK

Note: (S/N: 2017170235 & Above)

$71.99

$

Usually ships in 2-12 days

0
