FM 60 (59A40032727) - Cub Cadet Yanmar Tractor 60" Finishing Mower

Tractor 60" Finishing Mower

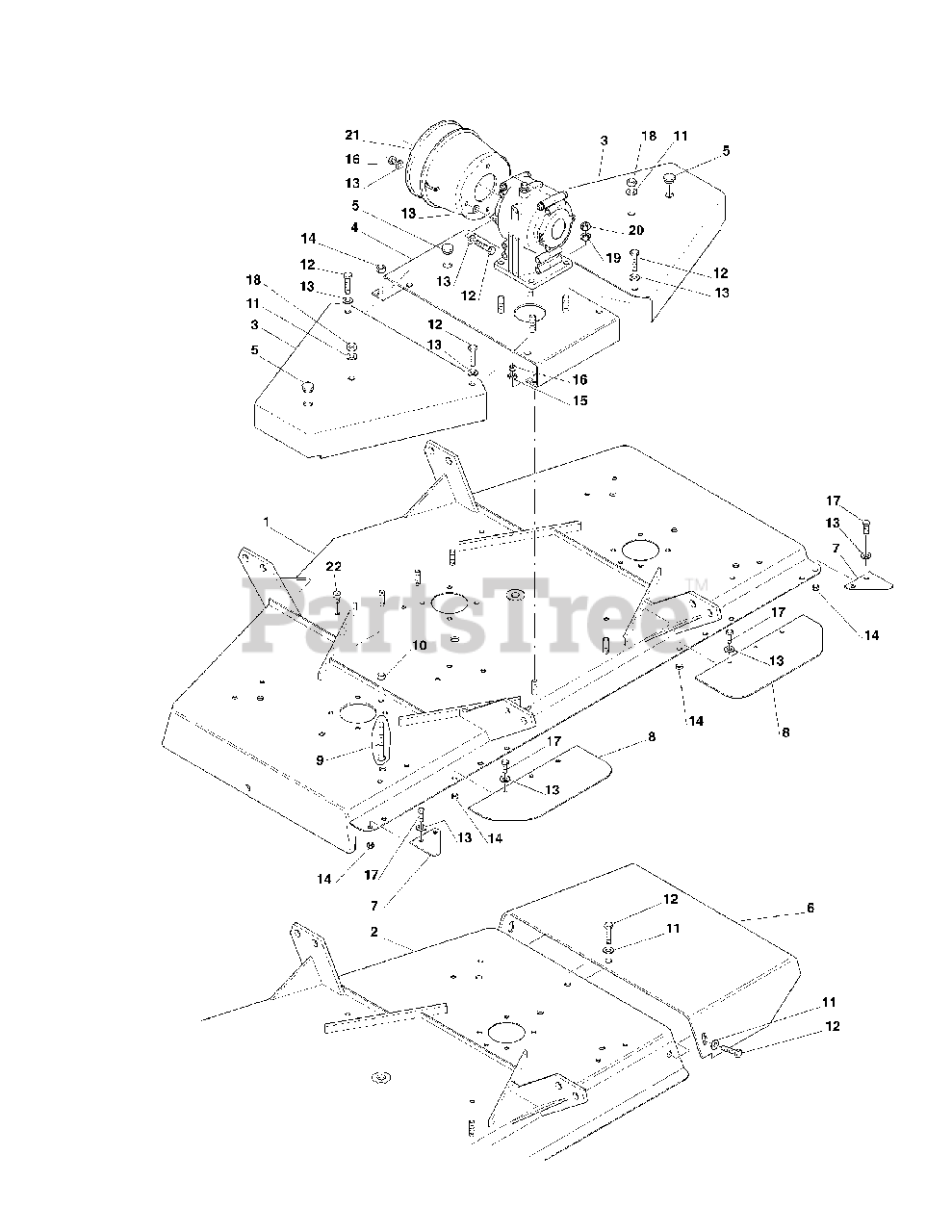

FM 60 (59A40032727) - Cub Cadet Yanmar Tractor 60" Finishing Mower > Parts Diagrams (13) > Frame Version 1

  • Title
YS-015-1501P

1

Frame 48'' Rear Discharge

Part# YS-015-1501P

Note: (Version B)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-025-1501P

1

Frame 60'' Rear Discharge

Part# YS-025-1501P

Note: (Version B)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-035-1501P

1

Frame 72'' Rear Discharge

Part# YS-035-1501P

Note: (Version B)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-010-8817

3

Belt Shield 48''

Part# YS-010-8817

Note: (Version A)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-020-8817

3

Belt Shield 60''

Part# YS-020-8817 (Superseded to BF-020-8817)

Note: (Version A)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-030-8817

3

Belt Shield 72''

Part# YS-030-8817

Note: (Version A)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-005-1581

4

Central Plate 48''

Part# YS-005-1581

OEM Warranty Repair Part for Cub Cadet

Not available

YS-005-1583

4

Central Plate 60''

Part# YS-005-1583

OEM Warranty Repair Part for Cub Cadet

Not available

YS-005-1585

4

Central Plate 72''

Part# YS-005-1585

OEM Warranty Repair Part for Cub Cadet

Not available

YS-000-6647

5

Cap

Part# YS-000-6647 (Superseded to BF-000-6647)

OEM Warranty Repair Part for Cub Cadet

Not available

N/A

6

Deflector 60''

Part# N/A

OEM Warranty Repair Part for Cub Cadet

Currently unavailable

YS-005-1858

7

Side Rear Protection 60''

Part# YS-005-1858

OEM Warranty Repair Part for Cub Cadet

Not available

YS-005-1859

7

Side Rear Protection 72''

Part# YS-005-1859

OEM Warranty Repair Part for Cub Cadet

Not available

YS-005-1856

8

Central Rear Protection

Part# YS-005-1856

OEM Warranty Repair Part for Cub Cadet

Not available

YS-000-8818

9

Bolt TE 10 x 110

Part# YS-000-8818 (Superseded to BF-000-8818)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-001-4106

10

Nut D. 10

Part# YS-001-4106 (Superseded to BF-001-4106)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-003-0157

11

Flat Washer D. 10

Part# YS-003-0157 (Superseded to BF-003-0157)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-003-3176

12

Bolt TE 10 x 110

Part# YS-003-3176 (Superseded to BF-003-3176)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-000-2034

13

Flat Washer D. 10

Part# YS-000-2034 (Superseded to BF-000-2034)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-003-0156

14

Nut D. 10

Part# YS-003-0156 (Superseded to BF-003-0156)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-000-1280

15

Spring Washer D. 10

Part# YS-000-1280 (Superseded to BF-000-1280)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-000-1279

16

Nut D. 10

Part# YS-000-1279 (Superseded to BF-000-1279)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-000-6349

17

Bolt TE 10 x 110

Part# YS-000-6349 (Superseded to BF-000-6349)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-001-5237

18

Nut D. 10

Part# YS-001-5237 (Superseded to BF-001-5237)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-000-1077

19

Spring Washer D. 12

Part# YS-000-1077 (Superseded to BF-000-1077)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-000-3038

20

Nut D. 12

Part# YS-000-3038 (Superseded to BF-000-1106)

OEM Warranty Repair Part for Cub Cadet

Not available

YS-000-8663

21

Shaft Protection

Part# YS-000-8663

Note: If equipped

OEM Warranty Repair Part for Cub Cadet

Not available

YS-005-1570

22

Cap

Part# YS-005-1570

OEM Warranty Repair Part for Cub Cadet

Not available
