FM 60 (59A40032727) - Cub Cadet Yanmar Tractor 60" Finishing Mower Hitch 1 Parts Diagram

Tractor 60" Finishing Mower

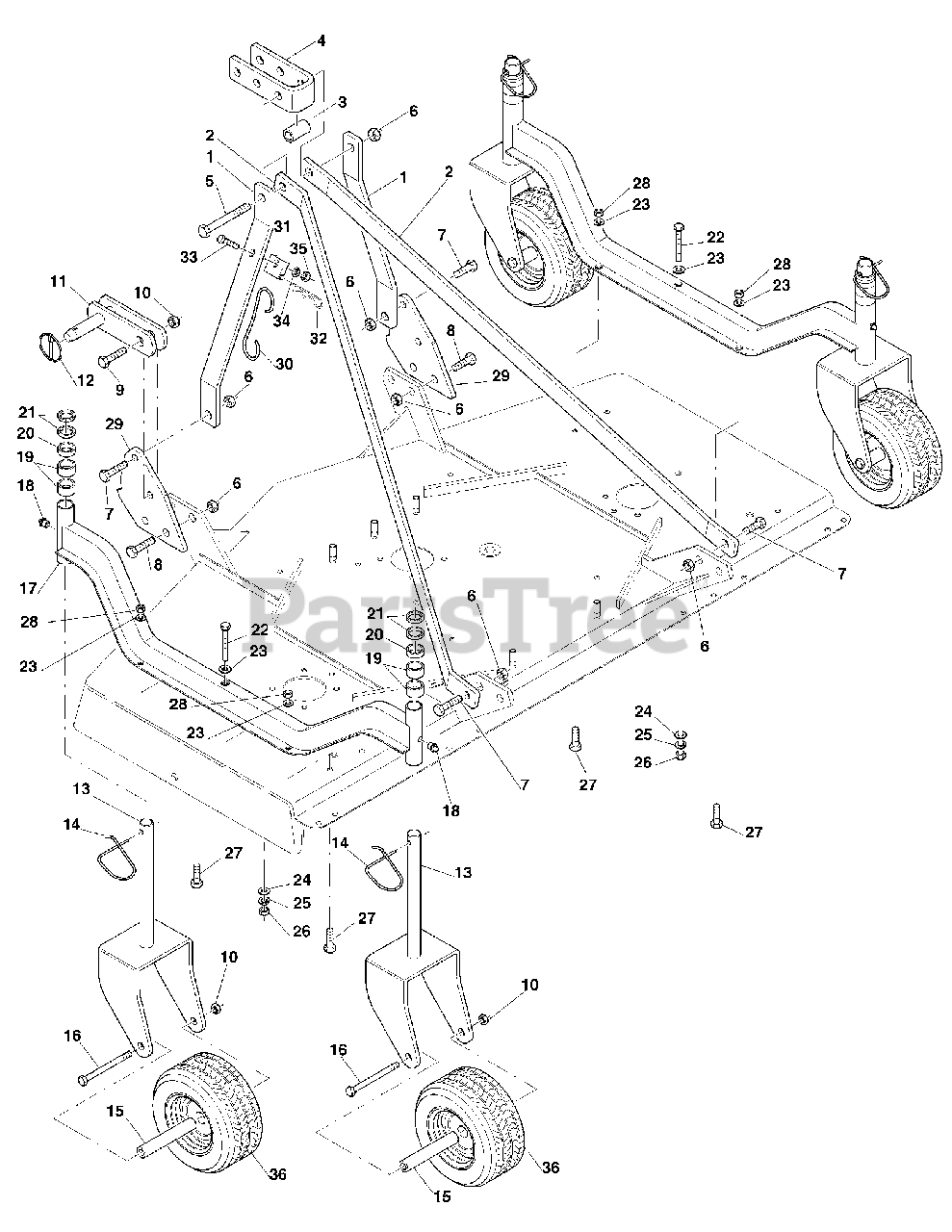

Hitch 1 Parts Diagram

  • Title

1

Cub Cadet BF-005-6511

Top Hitch Support

Note: (Version A)

$

$

Not available

2

Cub Cadet BF-015-6521

Top Hitch Arm 48''

Note: (Version A)

$

$

Not available

2

Cub Cadet BF-025-6521

Top Hitch Arm 60''

Note: (Version A)

$

$

Not available

2

Cub Cadet BF-035-6521

Top Hitch Arm 72''

Note: (Version A)

$

$

Not available

3

Cub Cadet BF-000-6829

Spacer

Note: (Since 1/2007)

$

$

Not available

4

Cub Cadet BF-000-6828

Upper Plate

$

$

Not available

5

Cub Cadet BF-000-6891

Bolt TE 16 x 140

$

$

Not available

6

Cub Cadet BF-000-5581

Nut D. 16

$

$

Not available

7

Cub Cadet BF-003-2687

Bolt TE 16 x 40

$

$

Not available

8

Cub Cadet BF-000-6578

Bolt TE 16 x 45

$

$

Not available

9

Cub Cadet BF-003-7349

Bolt TE 14 x 45

$

$

Not available

10

Cub Cadet BF-003-0358

Nut D. 14

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet BF-005-6525

Hitch Block

Note: (Since 1/3/2005)

$

$

Not available

12

Cub Cadet BF-001-8266

Lynch Pin

$

$

Not available

13

Cub Cadet BF-000-8785

Wheel Yoke

$225.99

$

Usually ships in 3-6 days

0

14

Cub Cadet BF-000-6610

Cotter Pin
(Superseded to BF-000-8783)

$11.99

$

In Stock, only 2 left!

0

15

Cub Cadet BF-000-8528

Spacer

$43.99

$

Usually ships in 3-6 days

0

16

Cub Cadet BF-000-6615

Bolt TE 14 x 140

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet BF-010-8761

Wheel Arm 48''

$

$

Not available

17

Cub Cadet BF-020-8761

Wheel Arm 60''

$

$

Not available

17

Cub Cadet BF-030-8761

Wheel Arm 72''

$

$

Not available

18

Cub Cadet BF-000-1065

Grease Fitting

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet BF-000-6586

Spacer 1''

$16.99

$

Usually ships in 3-6 days

0

20

Cub Cadet BF-000-6587

Spacer 1/2''

$21.99

$

Usually ships in 3-6 days

0

21

Cub Cadet BF-000-6589

Spacer 1/4''

$17.99

$

Usually ships in 3-6 days

0

22

Cub Cadet BF-002-6185

Bolt TE 10 x 90

$

$

Not available

23

Cub Cadet BF-003-0157

Flat Washer D. 10

$

$

Not available

24

Cub Cadet BF-000-2034

Flat Washer D. 10

$

$

Not available

25

Cub Cadet BF-000-1280

Spring Washer D. 10

$

$

Not available

26

Cub Cadet BF-000-1279

Nut D. 10

$

$

Not available

27

Cub Cadet BF-000-1278

Bolt TE 10 x 30

$

$

Not available

28

Cub Cadet BF-003-0156

Nut D.10

$

$

Not available

29

Cub Cadet BF-005-6523

Linking Plate

$

$

Not available

30

Cub Cadet BF-002-2433

Driveline Hook

Note: If equipped

$

$

Not available

31

Cub Cadet BF-002-2435

Hook Support

Note: If equipped

$

$

Not available

32

Cub Cadet BF-005-4422

Cotter Pin D.2

Note: If equipped

$

$

Not available

33

Cub Cadet BF-009-1446

Bolt TE 8 x 25

$

$

Not available

34

Cub Cadet BF-000-3144

Spring Washer D.8

$

$

Not available

35

Cub Cadet BF-000-1806

Nut D. 8

$

$

Not available

36

Cub Cadet BF-000-8526

Hard Tire

$182.99

$

Usually ships in 3-6 days

0

36

Cub Cadet BF-000-8797

Air Tire

$

$

Not available
