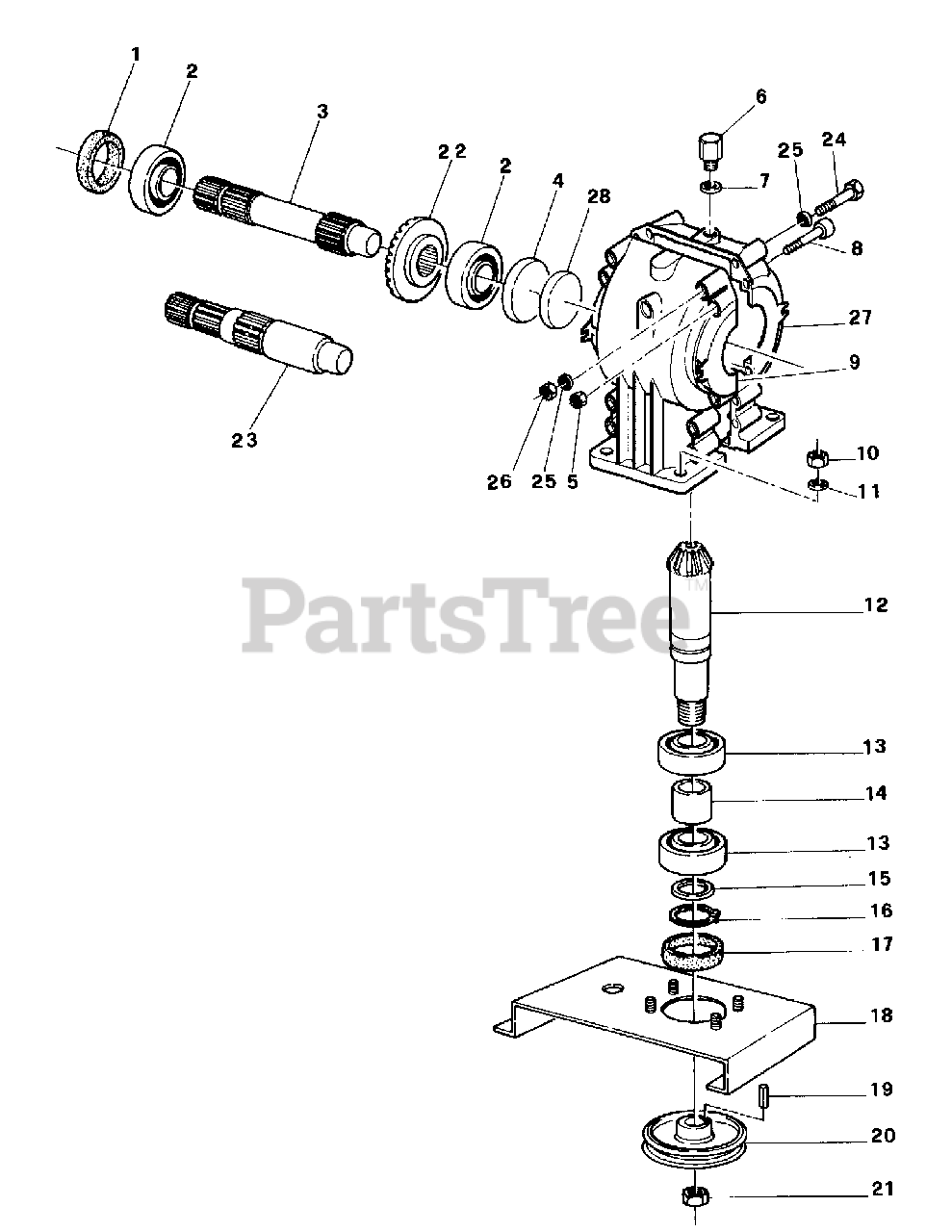

FM 72 (59A40033727) - Cub Cadet Yanmar Tractor 72" Finishing Mower Gearbox Version 1 Parts Diagram

Tractor 72" Finishing Mower

Gearbox Version 1 Parts Diagram

  • Title

1

Cub Cadet YS-001-0192

Oil Seal 40.68.10
(Superseded to BF-001-0192)

$24.99

$

In Stock, only 1 left!

0

2

Cub Cadet YS-001-2149

Bearing 6208
(Superseded to BF-001-2149)

$

$

Not available

3

Cub Cadet YS-000-8892

Input Shaft
(Superseded to BF-000-8892)

$

$

Not available

4

Cub Cadet YS-000-8609

Cover
(Superseded to BF-000-8609)

$

$

Not available

5

Cub Cadet YS-000-6513

Nut M8
(Superseded to BF-000-6513)

$

$

Not available

6

Cub Cadet YS-001-0727

Breather Cap
(Superseded to BF-001-0727)

$

$

Not available

7

Cub Cadet YS-000-8601

Gasket
(Superseded to BF-000-8601)

$

$

Not available

8

Cub Cadet YS-001-0173

Bolt TCEI 8 x 50
(Superseded to BF-001-0173)

$

$

Not available

9

Cub Cadet YS-005-6681

Gearbox Housing w/o Hole

$

$

Not available

10

Cub Cadet YS-000-3038

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

11

Cub Cadet YS-000-1077

Lock Washer M12
(Superseded to BF-000-1077)

$

$

Not available

12

Cub Cadet YS-005-0192

Pinion Gear
(Superseded to BF-005-0192)

$

$

Not available

13

Cub Cadet YS-002-5332

Bearing 6207
(Superseded to BF-002-5332)

$

$

Not available

14

Cub Cadet YS-001-0196

Spacer
(Superseded to BF-001-0196)

$

$

Not available

15

Cub Cadet YS-003-4196

Spacer Washer
(Superseded to BF-003-4196)

$

$

Not available

16

Cub Cadet YS-004-2122

Snap Ring Outer M36
(Superseded to BF-004-2122)

$

$

Not available

17

Cub Cadet YS-000-2295

Oil Seal 35.62.10
(Superseded to BF-000-2295)

$26.99

$

Usually ships in 3-6 days

0

18

Cub Cadet YS-020-8430

Central Plate 60''
(Superseded to BF-020-8430)

$

$

Not available

Cub Cadet YS-030-8430

Central Plate 72''

$

$

Not available

19

Cub Cadet YS-000-6688

Key 7 x 8 x 35
(Superseded to BF-000-6688)

$

$

Not available

20

Cub Cadet YS-000-8623

Pulley SPB 250 x 1
(Superseded to BF-000-8623)

$

$

Not available

21

Cub Cadet YS-000-6698

Nut M25
(Superseded to BF-000-6698)

$20.99

$

In Stock, only 1 left!

0

22

Cub Cadet YS-000-8893

Ring Gear
(Superseded to BF-000-8893)

$

$

Not available

23

Cub Cadet YS-005-1187

Input Shaft w.CCW Rotation

$

$

Currently unavailable

24

Cub Cadet YS-001-5263

Bolt 10 x 120
(Superseded to BF-001-5263)

$

$

Not available

25

Cub Cadet YS-000-2034

Flat Washer M10
(Superseded to BF-000-2034)

$

$

Not available

26

Cub Cadet YS-003-0156

Nut M10
(Superseded to BF-003-0156)

$

$

Not available

Cub Cadet YS-050-0668

Gearbox Complete

$

$

Not available
