FM 7300 (7084320) - Snapper 73" PTO Driven Finishing Mower Caster Assembly Parts Diagram

73" PTO Driven Finishing Mower

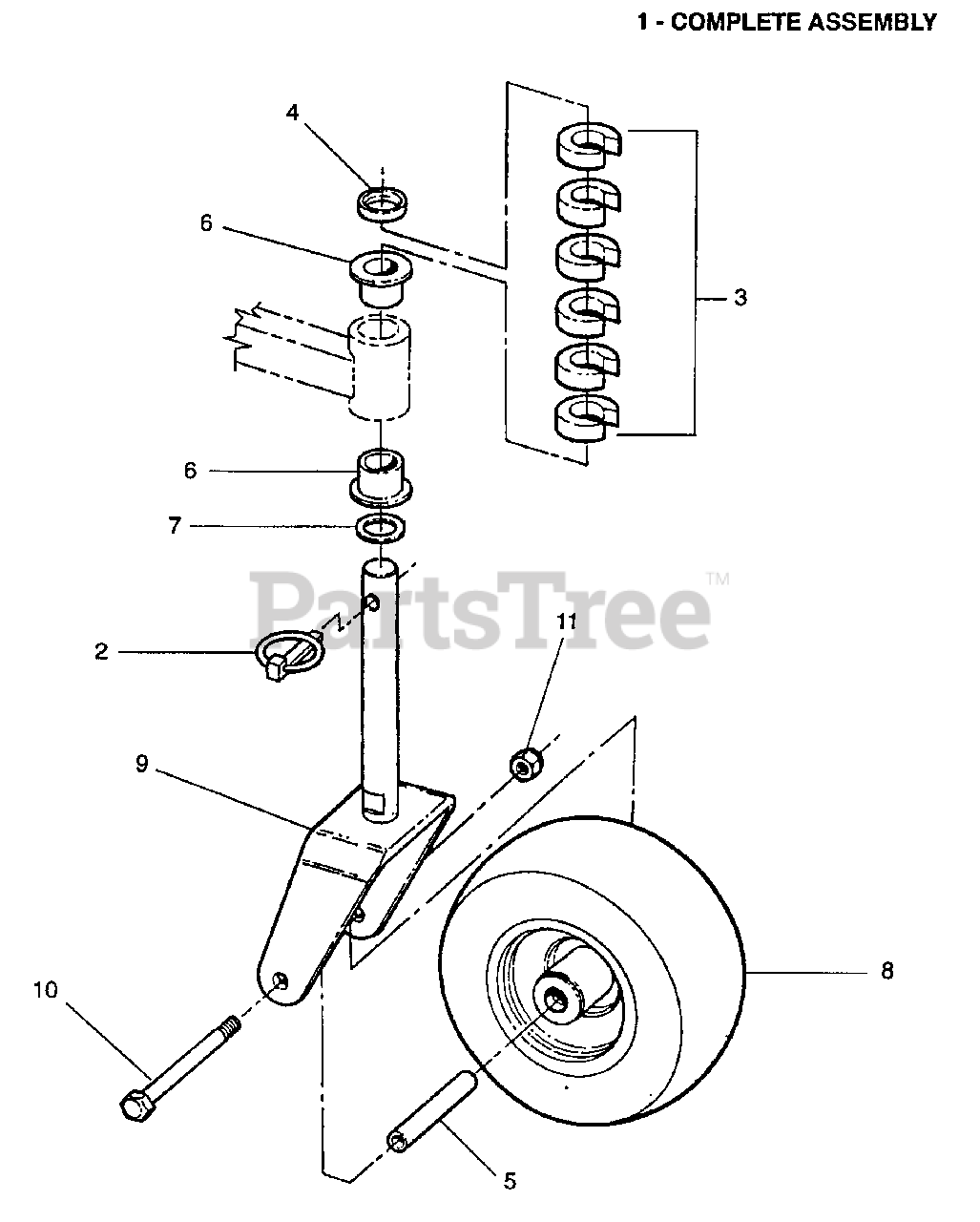

Caster Assembly Parts Diagram

  • Title

1

ASSEMBLY, Caster, 73" Finishing Deck

Note: (Incl. 2 thru 11)

$

$

Not available

2

Snapper Pro 7017711

PIN, 6/16" Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 4 left!

0

3

Snapper Pro 7019152

SPACER, Caster
(Superseded to 7019152YP)

$7.49

$

In Stock, Qty 12

0

4

Snapper Pro 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

5

Snapper Pro 7022151

SPACER, Axle Sleeve
(Superseded to 7022151YP)

$43.99

$

In Stock, only 4 left!

0

6

Snapper Pro 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, only 4 left!

0

7

Snapper Pro 7023747

BUSHING, 1" Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, only 3 left!

0

8

Snapper Pro 7059065

ASSEMBLY, Wheel/Tire 9 x 3.50-4
(Superseded to 7059065YP)

Note: Was 57762

$225.99

$

In Stock, only 1 left!

0

9

Snapper Pro 7046523

YOKE, Caster (Weldment)
(Superseded to 7046523YP)

$170.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025017X44

BOLT, 1/2-13 X 5-1/2" GD5 YZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0
