FMD52 - Exmark 52" Turf Tracer Hydro Walk-Behind Mower (SN: 090000 - 101999) (1994) Engine Controls Pg. 44 Parts Diagram

52" Turf Tracer Hydro Walk-Behind Mower

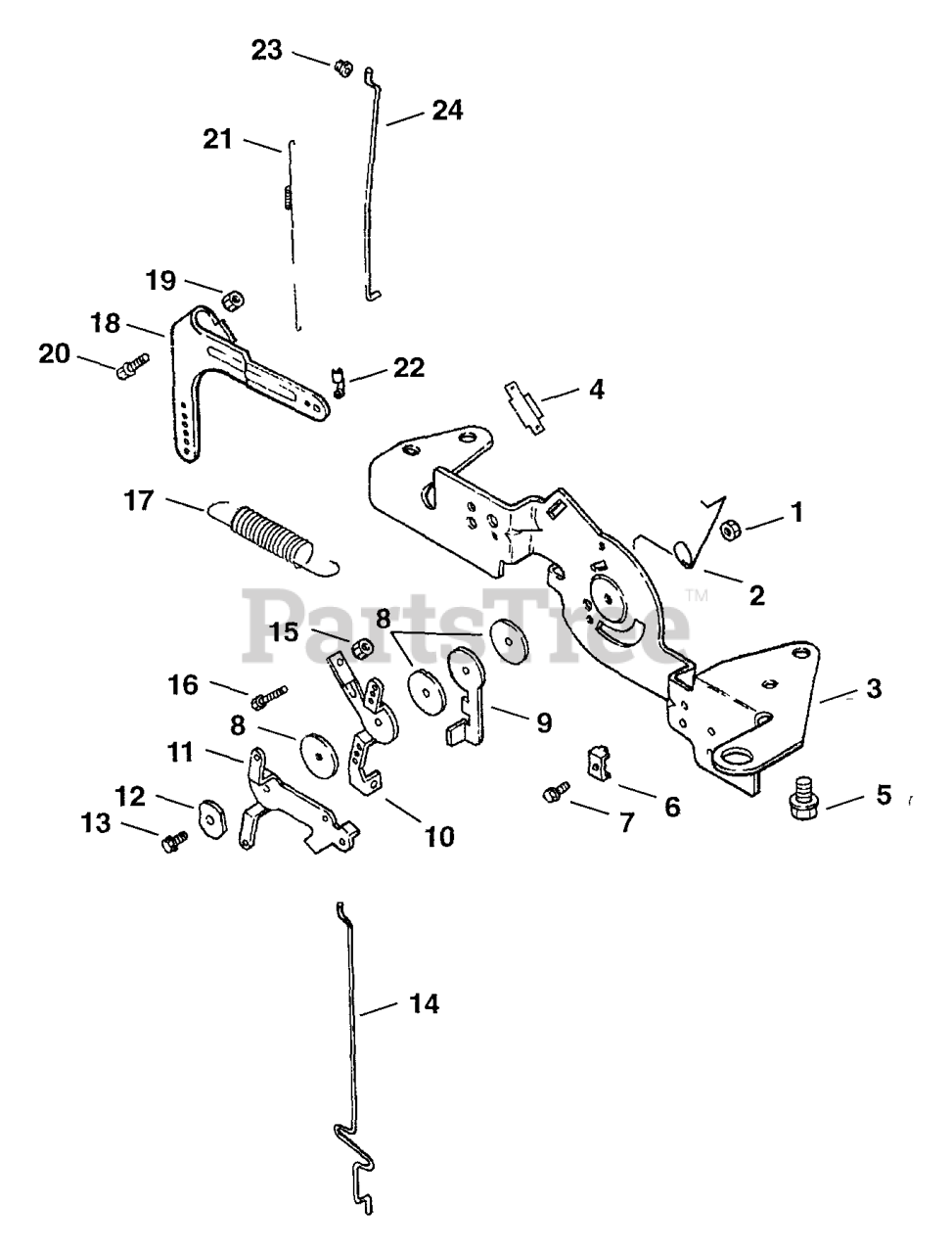

Engine Controls Pg. 44 Parts Diagram

  • Title
5

Exmark M-0645016

Screw, Hex. Flange M6x1.0x16

$

$

Currently unavailable

6

Exmark 1223701-S

Clamp, Cable

$

$

Currently unavailable

7

Exmark M-0545016

Screw, Hex. Flange M5x0.8x16

$

$

Currently unavailable

15

Exmark M-0446030

Nut, Hex. Flange M4x0.7

$

$

Currently unavailable

16

Exmark M-0401030

Screw, Hex. Cap M4x0.7x30

$

$

Currently unavailable

18

Exmark 2409014-S

Lever, Governor

$

$

Currently unavailable

19

Exmark M-0641060

Nut, Hex. Flange M6x1.0

$

$

Currently unavailable

20

Exmark SM-0642025

Screw, Hex. Cap M6x1.0x25

$

$

Currently unavailable

21

Exmark 2408901-S

Spring, Linkage

$

$

Currently unavailable

22

Exmark 2515811-S

Bushing, Linkage - Black

$

$

Currently unavailable

23

Exmark 2515808-S

Bushing, Linkage - Natural

$

$

Currently unavailable

24

Exmark 2407904-S

Linkage, Throttle

$

$

Currently unavailable
