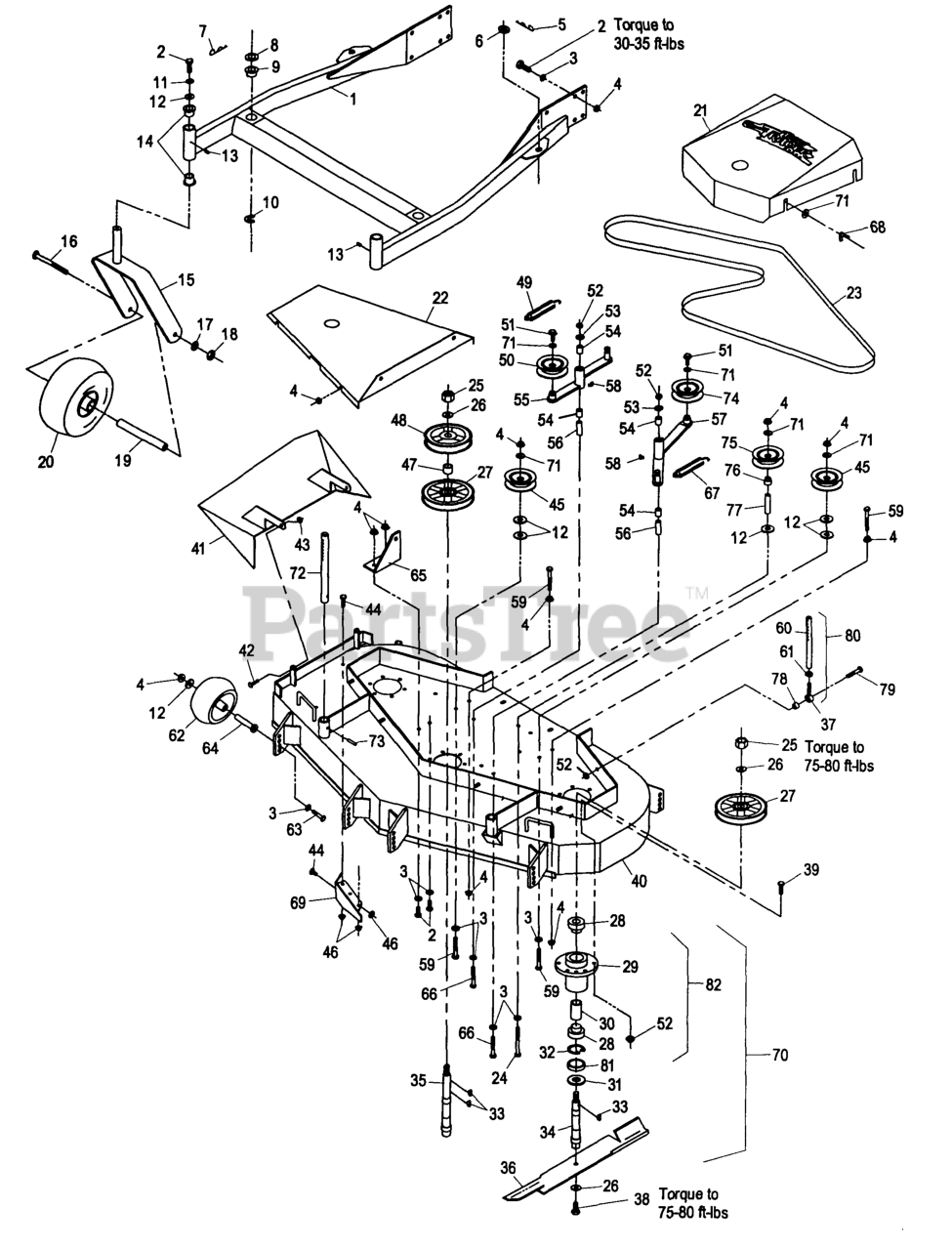

FMD523 - Exmark 52" Turf Tracer Hydro Walk-Behind Mower (SN: 150000 - 189999) (1998)

52" Turf Tracer Hydro Walk-Behind Mower

FMD523 - Exmark 52" Turf Tracer Hydro Walk-Behind Mower (SN: 150000 - 189999) (1998) > Parts Diagrams (10) > 52" Mower Deck

  • Title
1-604960

1

Support, Deck 612092 W/Bushings & Decals

Part# 1-604960

OEM Warranty Repair Part for Exmark

Not available

1-800292

2

Capscrew, 3/8-16 X 1

Part# 1-800292 (Superseded to 323-6)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

1-303327

3

Washer, Disc Spring 3/8

Part# 1-303327 (Superseded to 98-5975)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-809007

4

Nut, Whizlock 3/8-16

Part# 1-809007 (Superseded to 3290-357)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-806006

5

Hairpin, 5/8

Part# 1-806006

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-303164

6

Spacer, Blade Driver

Part# 1-303164 (Superseded to 1-323539)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.00

1-806007

7

Hairpin, 7/8

Part# 1-806007 (Superseded to 1-806009)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-413425

8

Washer

Part# 1-413425

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-513336

9

Bushing, Deck Support

Part# 1-513336

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

1-808507

10

Ring, Retaining (External)

Part# 1-808507 (Superseded to 32120-33)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.27

1-805006

11

Washer, Lock 3/8 Hvy Spring

Part# 1-805006 (Superseded to 3253-5)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

1-373034

12

Washer, Pivot

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.33

1-811001

13

Zerk, 1/8 Npt (Straight)

Part# 1-811001 (Superseded to 302-52)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.84

1-303514

14

Bearing, Flange Thrust

Part# 1-303514

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

1-522143-01

15

Fork, Caster

Part# 1-522143-01 (Superseded to 116-7941-01)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $60.95

1-800334

16

Capscrew, 1/2-13 X 6

Part# 1-800334 (Superseded to 325-20)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-805008

17

Washer, Lock 1/2

Part# 1-805008 (Superseded to 3253-7)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

1-804509

18

Nut, 1/2-13

Part# 1-804509 (Superseded to 3217-9)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

1-513547

19

Spacer, Front Caster

Part# 1-513547

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-513648

20

Tire/Wheel Assy, 9 X 3.50-4

Part# 1-513648 (Superseded to 103-2171)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $89.43

1-513807

Wheel

Part# 1-513807 (Superseded to 103-2171)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $89.43

1-513808

Tire 9 X 3.50-4

Part# 1-513808

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.53

1-513809

Bearing

Part# 1-513809

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

1-513810

Bushing

Part# 1-513810

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-614041

21

Cover W/Decal

Part# 1-614041

OEM Warranty Repair Part for Exmark

Not available

1-602545-01

22

Cover, Deck

Part# 1-602545-01

OEM Warranty Repair Part for Exmark

Not available

1-603576

23

Belt, Blade Drive

Part# 1-603576

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.50

1-800302

24

Capscrew, 3/8-16 X 4

Part# 1-800302 (Superseded to 323-16)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-804510

25

Nut, 5/8-18 Unf

Part# 1-804510 (Superseded to 3219-6)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

1-513208

26

Spring, Disk

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-553039

27

Sheave, Blade Drive

Part# 1-553039

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $136.39

1-513016

28

Bearing, Ball

Part# 1-513016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.57

1-323532

29

Housing, Bearing

Part# 1-323532 (Superseded to 103-8280)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $178.87

1-323528

30

Spacer, Bearing

Part# 1-323528

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-633573

31

Guard, Dust

Part# 1-633573

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-808502

32

Snap Ring

Part# 1-808502 (Superseded to 32120-8)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.32

1-807006

33

Key, Woodruff #61

Part# 1-807006 (Superseded to 3257-32)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

1-633574

34

Spindle, Outer Blade

Part# 1-633574

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $63.72

1-553038

35

Spindle, Center Blade

Part# 1-553038

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $93.90

1-633482

36

Blade, Notched Air Foil

Part# 1-633482 (Superseded to 103-6584-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.35

1-613251

Blade, Solid Air Foil

Part# 1-613251 (Superseded to 103-1578-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.70

1-633485

Blade, Low Lift

Part# 1-633485 (Superseded to 103-6580-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

1-633484

Blade, Mulching

Part# 1-633484 (Superseded to 103-6582-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.35

1-804525

37

Nut, Hex 3/8-24

Part# 1-804525 (Superseded to 3219-3)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

1-800340

38

Capscrew, 5/8-11 X 1 (Rh)

Part# 1-800340 (Superseded to 103-1026)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

1-800293

39

Capscrew, 3/8-16 X 1 1/4

Part# 1-800293 (Superseded to 323-7)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-612155

40

Deck, 612153 With Support Rods & Baffle

Part# 1-612155

OEM Warranty Repair Part for Exmark

Not available

1-602571-01

41

Chute, Discharge

Part# 1-602571-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $121.26

1-800273

42

Capscrew, 5/16-18 X 1

Part# 1-800273 (Superseded to 322-5)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.42

1-804256

43

Nut, Nylock 5/16-18

Part# 1-804256 (Superseded to 3296-29)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

1-800270

44

Capscrew, 5/16-18 X 5/8

Part# 1-800270 (Superseded to 322-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.86

1-303516

45

Pulley, V-Idler

Part# 1-303516

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.88

1-809001

46

Nut, Whizlock 5/16-18

Part# 1-809001 (Superseded to 32128-20)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-603504

47

Spacer, Tube

Part# 1-603504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.41

1-603581

48

Sheave, Mower Drive

Part# 1-603581

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $101.73

1-603413

49

Spring, Extension

Part# 1-603413

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

1-603497

50

Pulley, Idler

Part# 1-603497

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.00

1-803016

51

Screw, Whizlock 3/8-16 X 1

Part# 1-803016 (Superseded to 3234-11)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.12

1-804257

52

Nut, Nylock 3/8-16

Part# 1-804257 (Superseded to 3296-39)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

1-805260

53

Washer, 3/8

Part# 1-805260 (Superseded to 3256-4)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

1-513034

54

Bearing, Pivot

Part# 1-513034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.92

1-602604

55

Idler Arm Assy W/Bearings

Part# 1-602604

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $96.14

1-602591

Arm, Deck Idler

Part# 1-602591

OEM Warranty Repair Part for Exmark

Currently unavailable

1-603384

56

Bushing, Idler Pivot

Part# 1-603384

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

1-602865

57

Idler Arm, W/Bearings Deck Drive

Part# 1-602865

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $98.44

1-602867

Arm, Deck Drive Idler

Part# 1-602867

OEM Warranty Repair Part for Exmark

Currently unavailable

1-811008

58

Zerk, 1/4-28 (90°)

Part# 1-811008 (Superseded to 302-40)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.37

1-800297

59

Capscrew, 3/8-16 X 2-1/4

Part# 1-800297 (Superseded to 323-11)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

1-613203

60

Link, Rear Deck Support

Part# 1-613203

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $98.21

1-613204

61

Balljoint

Part# 1-613204

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.59

1-603299

62

Roller, Anti Scalp

Part# 1-603299

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

1-800807

63

Capscrew, 3/8-16 X 4 Gr8

Part# 1-800807 (Superseded to 98-5961)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-603602

64

Bushing, Roller

Part# 1-603602

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.76

1-603620-01

65

Bracket, Spring Anchor

Part# 1-603620-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.05

1-800805

66

Capscrew, 3/8-16 X 3 1/2

Part# 1-800805

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-603414

67

Spring, Extension

Part# 1-603414

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.65

1-543678

68

Wingnut, Nylock

Part# 1-543678

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.63

1-602913-01

69

Baffle

Part# 1-602913-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.77

1-554033

70

Housing, Cutter Complete (Center)

Part# 1-554033

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $541.60

1-554019

Housing, Cutter Complete (Outer)

Part# 1-554019

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $387.24

1-805259

71

Washer, 3/8 SAE Flat

Part# 1-805259 (Superseded to 3256-24)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

1-603001

72

Rod, Deck Support

Part# 1-603001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.60

1-806332

73

Roll Pin, 1/4 X 1-1/2

Part# 1-806332 (Superseded to 32121-15)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

1-613098

74

Idler

Part# 1-613098

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.08

1-603805

75

Idler

Part# 1-603805

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.94

1-513791

76

Bushing

Part# 1-513791

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-603494

77

Spacer

Part# 1-603494

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.82

1-603050

78

Spacer

Part# 1-603050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-800295

79

Capscrew, 3/8-16 X 1 3/4

Part# 1-800295 (Superseded to 323-9)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

1-614213

80

Link Assy

Part# 1-614213 (Superseded to 1-411532)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $98.21

1-323533

81

Spacer, Shv/Brg

Part# 1-323533

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-634619

82

Housing W/Brg, Spacer & Ring

Part# 1-634619 (Superseded to 103-8280)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $178.87

1-850337

Exmark Red Touch Up Spray Paint

Part# 1-850337

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.82

1-601806

Idler Pulley Kit

Part# 1-601806

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $74.16

MK523

Mulching Kit

Part# MK523

OEM Warranty Repair Part for Exmark

Currently unavailable
