FMD524 - Exmark 52" Turf Tracer Front Mount Deck (SN: 000920000 - 000999999) (2011)

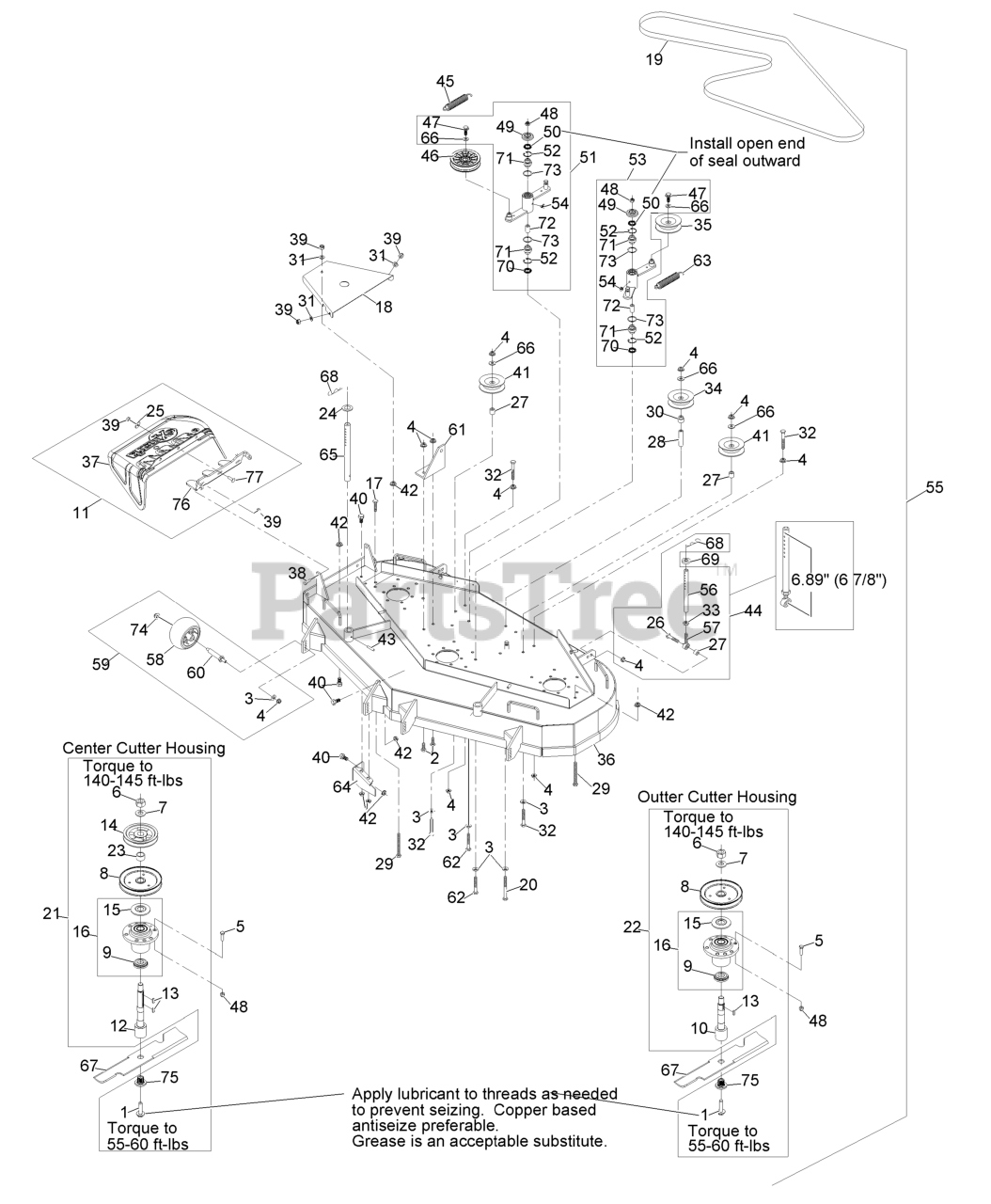

52" Turf Tracer Front Mount Deck

FMD524 - Exmark 52" Turf Tracer Front Mount Deck (SN: 000920000 - 000999999) (2011) > Parts Diagrams (3) > Deck Assembly

  • Title
109-5958

1

Screw-Hex Flange 1/2-20

Part# 109-5958 (Superseded to 109-9220)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.76

323-6

2

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

98-5975

3

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3290-357

4

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

323-7

5

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3217-46

6

Nut-Hex 3/4-16 Heavy

Part# 3217-46

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

103-2802

7

Washer-Spring Disc 3/4

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.18

103-2794

8

Sheave, Blade Drive

Part# 103-2794

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $49.63

103-2535

9

Spacer-Guard Bottom

Part# 103-2535

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.07

103-9086

10

Kit, Splined Spindle 103-3036

Part# 103-9086

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $154.66

109-4722

11

Asm, Discharge Chute

Part# 109-4722

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $110.61

103-9087

12

Kit, Center Blade Spindle (Long)

Part# 103-9087

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $155.03

103-2982

13

Key-Machine 1/4 X 3/16 X 3/4

Part# 103-2982

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

103-2793

14

Sheave, Mower Drive

Part# 103-2793

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $116.57

103-1330

15

Guard-Bearing Top

Part# 103-1330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.14

103-8280

16

Kit, Cutter Housing

Part# 103-8280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $184.68

322-3

17

Screw-Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

103-2969-01

18

Cover, Deck

Part# 103-2969-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.24

103-2329

19

Belt, Blade Drive

Part# 103-2329

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $52.61

323-23

20

Screw-Hh 3/8-16 X 4-1/2

Part# 323-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.23

103-9084

21

Housing, Cutter Complete (Center)

Part# 103-9084

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $478.97

103-9076

22

Housing, Cutter Complete (Outer)

Part# 103-9076

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $326.39

103-3209

23

Spacer, Tube

Part# 103-3209

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.76

1-413425

24

Spacer

Part# 1-413425

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.82

3256-82

25

Washer

Part# 3256-82

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.65

323-9

26

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

1-603050

27

Spacer

Part# 1-603050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.01

1-633988

28

Spacer-Anchor, Clutch

Part# 1-633988

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.01

1-800017

29

Bolt-Hh 5/16-18 X 3 1/4 Tap

Part# 1-800017

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.65

1-513791

30

Bushing

Part# 1-513791

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

3256-3

31

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

323-12

32

Screw-Hh 3/8-16 X 2 1/2

Part# 323-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.99

3220-3

33

Nut-Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.29

1-603805

34

Pulley-Idler

Part# 1-603805

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $39.23

1-613098

35

Pulley-Idler

Part# 1-613098

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

109-4652

36

Deck, (116-3587-01) W/ Decals

Part# 109-4652 (Superseded to 116-5949)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2154.18

109-2738

37

Chute,Discharge

Part# 109-2738

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $51.05

322-5

38

Screw-Hh 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

3296-29

39

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

322-2

40

Screw-Hh 5/16-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

1-303516

41

Pulley, V-Idler

Part# 1-303516

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.08

32128-20

42

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

1-806332

43

Rollpin 1/4 X 1 1/2

Part# 1-806332 (Superseded to 32121-15)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-411532

44

Kit, Support Link W/Pin

Part# 1-411532

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $101.40

1-603413

45

Spring-Extension

Part# 1-603413

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

109-4077

46

Pulley, Idler

Part# 109-4077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.99

3234-11

47

Screw-Hh Flg 3/8-16 X 1

Part# 3234-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.22

3296-39

48

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

103-2916

49

Guard-Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.63

103-3506

50

Seal-Single Lip

Part# 103-3506

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.27

103-8072

51

Kit, Idler Arm W/Bearings

Part# 103-8072

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $132.74

32120-10

52

Ring-Retaining

Part# 32120-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

103-8071

53

Kit, Idler Arm W/Bearings

Part# 103-8071

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $141.98

302-40

54

Zerk-90deg 1/4-28

Part# 302-40

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.45

103-2327

55

Asm, Complete Deck

Part# 103-2327

OEM Warranty Repair Part for Exmark

Currently unavailable

1-413525

56

Link, Rear Deck Support

Part# 1-413525

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.37

1-613204

57

Balljoint

Part# 1-613204

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.38

1-603299

58

Roller-Scalp, Anti

Part# 1-603299

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

103-4051

59

Kit, Anti Scalp

Part# 103-4051 (Superseded to 116-9981)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.08

99-2842

60

Spacer

Part# 99-2842 (Superseded to 126-2928)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.61

1-603620-01

61

Bracket, Spring Anchor

Part# 1-603620-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.65

98-5961

62

Screw-Hh 3/8-16 X 4 Gr8

Part# 98-5961

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.75

1-603414

63

Spring-Extension

Part# 1-603414

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.84

116-2072-01

64

Baffle

Part# 116-2072-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.87

1-603001

65

Rod, Deck Support

Part# 1-603001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.60

3256-24

66

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

103-6402

67

Blade-Notched

Part# 103-6402 (Superseded to 103-6402-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

103-6382

67

Blade, Solid

Part# 103-6382 (Superseded to 103-6382-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.38

103-6387

67

Blade, Low Lift

Part# 103-6387 (Superseded to 103-6387-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.08

103-6392

67

Blade, Mulching

Part# 103-6392 (Superseded to 103-6392-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

103-6397

67

Blade, Extreme

Part# 103-6397 (Superseded to 116-5175-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

1-806009

68

Hairpin-Cotter #206

Part# 1-806009

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

1-323539

69

Spacer-Blade Drive

Part# 1-323539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.07

103-3505

70

Seal-Double Lip

Part# 103-3505

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-3504

71

Bearing-Spherical

Part# 103-3504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.68

1-413088

72

Spacer

Part# 1-413088

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.11

106-7159

73

O-Ring

Part# 106-7159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

109-6658

74

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

103-3037

75

Bushing,Splined

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.14

109-4573-01

76

Bracket, Discharge Chute

Part# 109-4573-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $68.77

3230-22

77

Bolt-Carriage 5/16-18 X 1 Sp

Part# 3230-22 (Superseded to 3230-22)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87
