FMD524 - Exmark 52" Turf Tracer Front Mount Deck (SN: 000920000 - 000999999) (2011) Deck Support Assembly Parts Diagram

52" Turf Tracer Front Mount Deck

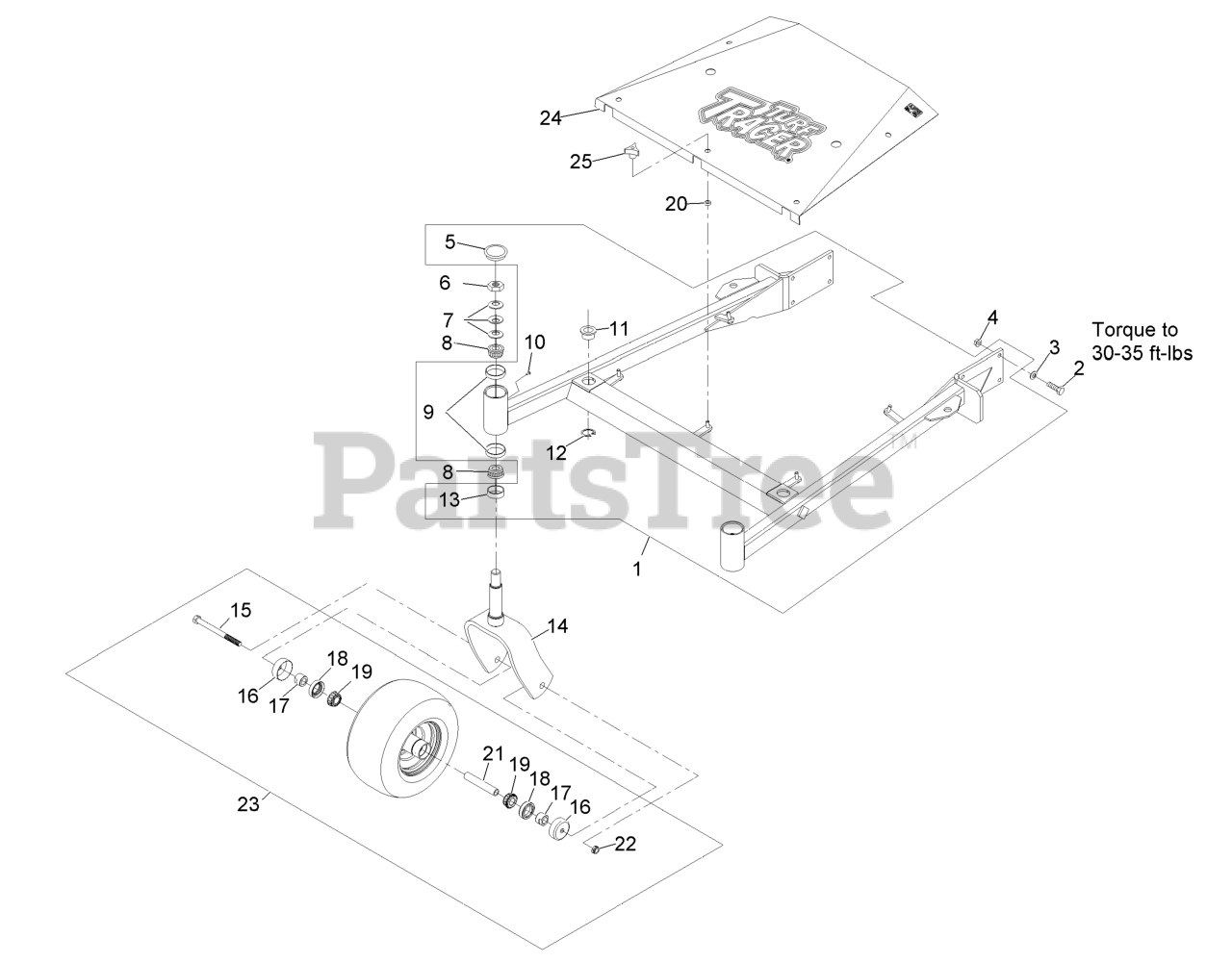

Deck Support Assembly Parts Diagram

  • Title

1

Exmark 103-1895

ASM,524 FMD DK SUPPORT,SE

$1286.99

$

Usually ships in 3-6 days

0

2

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

4

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Exmark 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

6

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, Qty 20+

0

7

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

8

Exmark 1-543509

Cone-Bearing Tapered Roller

$14.99

$

In Stock, Qty 20+

0

9

Exmark 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 12

0

10

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

11

Exmark 1-513336

BUSHING-DECK

$26.99

$

In Stock, Qty 20+

0

12

Exmark 32120-33

RING-RETAINING

$7.99

$

In Stock, Qty 20+

0

13

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

14

Exmark 103-1891-01

WLD, CASTER FORK

$124.99

$

Usually ships in 3-6 days

0

15

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

16

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

17

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

18

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 20+

0

19

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$22.99

$

In Stock, Qty 20+

0

20

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

21

Exmark 103-3157

126-5359
(Superseded to 126-5359)

$19.99

$

In Stock, Qty 15

0

22

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

23

Exmark 109-3524

ASM,WHEEL&BEARINGS

$266.99

$

In Stock, Qty 20+

0

24

Exmark 116-2708

KIT, SHIELD TT W/ DECALS

$221.99

$

In Stock, only 1 left!

0

25

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0
