FMD60 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 102000 - 114999) (1995) 52" Mower Deck Parts Diagram

60" Turf Tracer Hydro Walk-Behind Mower

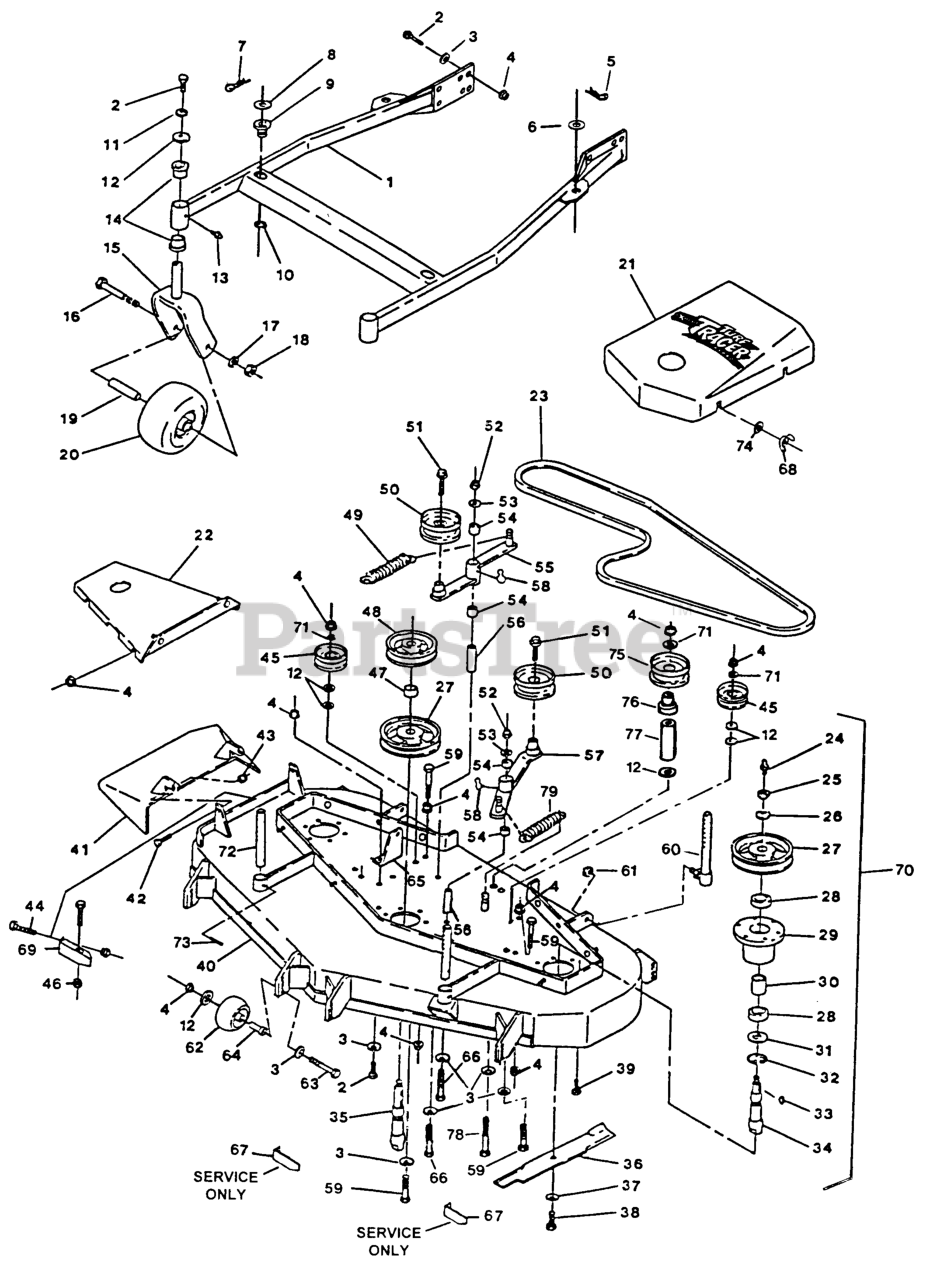

52" Mower Deck Parts Diagram

  • Title

1

Exmark 1-604960

DISCONTINUED

Note: 60293 w/ bushings & decals

$

$

Not available

2

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

3

Exmark 1-303327

98-5975
(Superseded to 98-5975)

Note: Part available in P/N 601806, Idler Pulley Kit; each Idler Pulley Kit contains one.

$3.99

$

In Stock, Qty 20+

0

4

Exmark 1-809007

3290-357
(Superseded to 3290-357)

Note: Part available in P/N 601806, Idler Pulley Kit; each Idler Pulley Kit contains one.

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-806006

PIN,HAIR COTTER

$1.49

$

In Stock, Qty 5

0

6

Exmark 1-303164

1-323539
(Superseded to 1-323539)

Note: blade driver

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-806007

1-806009
(Superseded to 1-806009)

$2.99

$

In Stock, Qty 20+

0

8

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

9

Exmark 1-513336

BUSHING-DECK

Note: deck support

$26.99

$

In Stock, Qty 20+

0

10

Exmark 1-808507

32120-33
(Superseded to 32120-33)

$7.99

$

In Stock, Qty 20+

0

11

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 15

0

12

Exmark 1-373034

WASHER

Note: Part available in P/N 601806, Idler Pulley Kit; each Idler Pulley Kit contains one.

$3.99

$

In Stock, Qty 20+

0

13

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

14

Exmark 1-303514

BEARING-FLANGED

Note: flange thrust

$13.99

$

In Stock, Qty 20+

0

15

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

Note: caster

$101.99

$

In Stock, Qty 17

0

16

Exmark 1-800334

325-20
(Superseded to 325-20)

$8.49

$

In Stock, Qty 20+

0

17

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

19

Exmark 1-513547

SPACER

Note: front caster

$13.99

$

In Stock, Qty 12

0

20

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$137.99

$

In Stock, Qty 20+

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$137.99

$

In Stock, Qty 20+

0

Exmark 1-513808

TIRE

$45.99

$

In Stock, only 2 left!

0

Exmark 1-513809

BEARING

$37.99

$

In Stock, Qty 20+

0

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

21

Exmark 1-612047

1-614041
(Superseded to 1-614041)

Note: (deck drive belt)

$

$

Not available

22

Exmark 1-602545-01

DISCONTINUED

Note: deck

$

$

Not available

23

Exmark 1-603576

BELT,BLADE DRIVE
(Superseded to 1-603576-SL)

Note: blade drive

$79.99

$

In Stock, only 3 left!

0

24

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

25

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

26

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

27

Exmark 1-513207

SHEAVE,BLADE DRIVE

Note: blade drive

$

$

Not available

28

Exmark 1-303057

1-303543
(Superseded to 1-303543)

$45.99

$

In Stock, Qty 20+

0

29

Exmark 1-513186

1-414315
(Superseded to 1-414315)

Note: bearing

$238.99

$

Usually ships in 3-6 days

0

30

Exmark 1-513188

SPACER,BEARING

Note: bearing

$24.99

$

In Stock, Qty 9

0

31

Exmark 1-513193

SEAL,MECHANICAL DUST

Note: dust

$7.49

$

In Stock, Qty 20+

0

32

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.49

$

In Stock, only 3 left!

0

33

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 20+

0

34

Exmark 1-603031

SPINDLE-OUTER BLADE

Note: outer blade

$180.99

$

In Stock, only 2 left!

0

35

Exmark 1-603022

SPINDLE-CENTER BLADE

Note: center blade

$195.99

$

Usually ships in 3-6 days

0

36

Exmark 1-603637

103-3229
(Superseded to 103-3229)

$31.99

$

In Stock, only 3 left!

0

Exmark 1-603844

DISCONTINUED

$

$

Not available

Exmark 1-603873

103-3227
(Superseded to 103-3227)

Note: Requires installation of Micro-Mulch Accessory for proper mulching

$

$

Not available

37

Exmark 1-513435

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

38

Exmark 1-800531

3213-1
(Superseded to 3213-1)

$2.49

$

In Stock, Qty 8

0

39

Exmark 1-809035

SCRW,TPTTE HH
(Superseded to 126-1696)

$1.49

$

In Stock, Qty 15

0

40

Exmark 1-602961

1-612155
(Superseded to 1-612155)

Note: 612007 With support rods & baffle

$

$

Not available

41

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$213.99

$

Usually ships in 3-6 days

0

42

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

43

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

44

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

45

Exmark 1-303516

IDLER,PULLEY

Note: V-Idler

$62.99

$

In Stock, only 3 left!

0

46

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-603504

SPACER-TUBE

Note: tube

$20.99

$

Usually ships in 3-6 days

0

48

Exmark 1-603581

SHEAVE,MOWER DRIVE

Note: mower drive

$173.99

$

Usually ships in 3-6 days

0

49

Exmark 1-603413

SPRING-EXTENSION

Note: extension

$25.99

$

In Stock, only 3 left!

0

50

Exmark 1-603497

IDLER,PULLEY

Note: idler

$64.99

$

In Stock, only 2 left!

0

51

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 20+

0

52

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

53

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

54

Exmark 1-513034

SLEEVE-BEARING

Note: pivot

$7.99

$

In Stock, Qty 20+

0

55

Exmark 1-602604

ASM,IDLER ARM

$159.99

$

Usually ships in 3-6 days

0

Exmark 1-602591

Arm Weldment - Deck Idler

Note: deck idler

$

$

Currently unavailable

56

Exmark 1-603384

BUSHING-PIVOT, IDLER

Note: idler pivot

$14.99

$

In Stock, Qty 20+

0

57

Exmark 1-602865

ASM,IDLER ARM

Note: deck drive

$152.99

$

In Stock, only 1 left!

0

Exmark 1-602867

Arm, Deck

Note: drive idler

$

$

Currently unavailable

58

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

59

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

60

Exmark 1-603540

1-411532
(Superseded to 1-411532)

Note: rear deck support

$164.99

$

In Stock, Qty 9

0

61

Exmark 1-803031

DISCONTINUED (EXMARK)

$

$

Not available

62

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

63

Exmark 1-800807

98-5961
(Superseded to 98-5961)

$5.49

$

In Stock, Qty 20+

0

64

Exmark 1-603602

BUSHING-ROLLER

Note: roller

$25.99

$

In Stock, Qty 20+

0

65

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

Note: spring anchor

$28.99

$

Usually ships in 3-6 days

0

66

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

67

Exmark 1-602911-01

DISCONTINUED

Note: Service Only. Requires (2 ea.) 8090011 Ref No. 46 and (2 ea.) 800270 Ref. No. 44 for installation

$

$

Not available

68

Exmark 1-543678

NUT-WING

$13.99

$

In Stock, Qty 5

0

69

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$54.99

$

In Stock, only 2 left!

0

70

Exmark 1-604621

DISCONTINUED

$

$

Not available

Exmark 1-604262

CH-52&60 OUTER CUTTR

$

$

Not available

71

Exmark 1-805258

3256-3
(Superseded to 3256-3)

Note: Part available in P/N 601806, Idler Pulley Kit; each Idler Pulley Kit contains one.

$0.99

$

In Stock, Qty 20+

0

72

Exmark 1-603001

ROD,DECK SUPPORT

Note: deck support

$52.99

$

In Stock, Qty 6

0

73

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

74

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

75

Exmark 1-603805

PULLEY-IDLER

Note: Part available in P/N 601806, Idler Pulley Kit; each Idler Pulley Kit contains one.

$58.99

$

In Stock, Qty 20+

0

76

Exmark 1-513791

BUSHING,IDLER

Note: Part available in P/N 601806, Idler Pulley Kit; each Idler Pulley Kit contains one.

$5.99

$

In Stock, only 2 left!

0

77

Exmark 1-603494

SPACER-FENDER

Note: Part available in P/N 601806, Idler Pulley Kit; each Idler Pulley Kit contains one.

$

$

Not available

78

Exmark 1-800302

323-16
(Superseded to 323-16)

Note: Part available in P/N 601806, Idler Pulley Kit; each Idler Pulley Kit contains one.

$3.49

$

In Stock, Qty 16

0

79

Exmark 1-603414

SPRING-EXTENSION

Note: extension

$22.99

$

In Stock, Qty 13

0

Exmark 1-601806

KIT - IDLER PULLEY

Note: Includes Items 3, 4, 12, 71 and 75 - 78. Each kit contains one item each of items 3, 4, 12, 71, 75, 76, 77, and 78.

$

$

Not available
