FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 370000 - 439999) (2003)

60" Turf Ranger Front Mount Mower

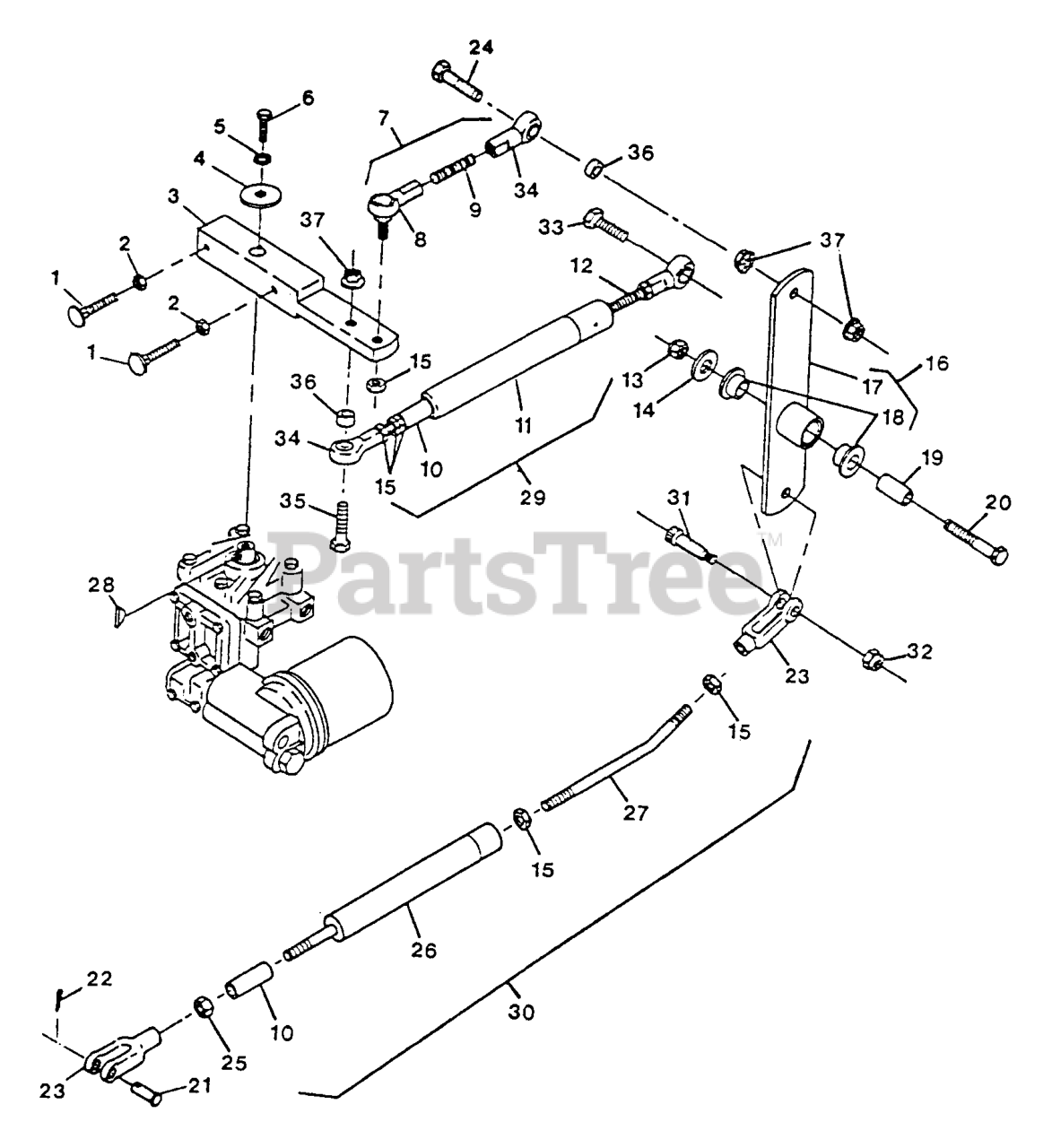

FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 370000 - 439999) (2003) > Parts Diagrams (17) > Motion Controls

  • Title
1-807522

1

Bolt, Carriage 5/16-18 X 2

Part# 1-807522

OEM Warranty Repair Part for Exmark

Not available

3217-6

2

Nut, 5/16-18

Part# 3217-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.12

1-542916-01

3

Arm, Transaxle

Part# 1-542916-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $146.89

1-503033

4

Washer, Pulley Retainer

Part# 1-503033

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.15

1-805004

5

Washer,Lock 1/4 Hvy Spring

Part# 1-805004

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.63

1-800751

6

Capscrew, 1 /4-20 X 1-1 /2

Part# 1-800751

OEM Warranty Repair Part for Exmark

Currently unavailable

1-544722

7

Linkage, Motion Control

Part# 1-544722

OEM Warranty Repair Part for Exmark

Not available

1-513132

8

Joint, Ball

Part# 1-513132

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $32.11

1-543710

9

Rod, End

Part# 1-543710

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.00

1-840022

Pro-Lock,Nut Type (.5ml Tube)

Part# 1-840022

Note: Use on both Rod ends; Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.45

1-513479

10

Bushing, Spring Guide

Part# 1-513479

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.22

1-542724-01

11

Centering Spring Wldmnt

Part# 1-542724-01 (Superseded to 1-542725)

OEM Warranty Repair Part for Exmark

Not available

1-543148

12

Rod, End

Part# 1-543148

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.44

3296-29

13

Nut, Nylock 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

3256-3

14

Washer, 5/16 Stnd. Flat

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.37

3220-2

15

Nut, Jam 5/16-24 (Rh)

Part# 3220-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.14

1-544711

16

Idler Linkage S/A

Part# 1-544711

OEM Warranty Repair Part for Exmark

Not available

1-542144-01

17

Linkage, Idler

Part# 1-542144-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.07

1-513140

18

Bearing, Control

Part# 1-513140

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.92

1-543486

19

Bushing

Part# 1-543486

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.00

322-12

20

Capscrew, 5/16-18 X 2-1 /2

Part# 322-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.14

1-808280

21

Pin, Clevis 5/16 X 1

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

3272-5

22

Pin, Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.07

1-303105

23

Yoke, Adjustable

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.63

322-7

24

Capscrew, 5/16-18 X 1-1 /2

Part# 322-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

3219-2

25

Nut, 5/16-24

Part# 3219-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

1-512136-03

26

Housing, Override

Part# 1-512136-03

OEM Warranty Repair Part for Exmark

Not available

1-543052

27

Rod, Link

Part# 1-543052

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.18

3257-1

28

Key, Woodruff #3, 1/8x1/2

Part# 3257-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

1-542725

29

Spring Assy, Pedal (Center)

Part# 1-542725

OEM Warranty Repair Part for Exmark

Not available

1-542053

30

Spring, Pedal (Override)

Part# 1-542053

OEM Warranty Repair Part for Exmark

Not available

1-809057

31

Screw, 5/16x3/4 Sckt Hd Shld

Part# 1-809057

OEM Warranty Repair Part for Exmark

Not available

3296-42

32

Nut, Nylock 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.38

3210-5

33

Capscrew, 5/16-24 X 1

Part# 3210-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.04

1-543017

34

Ball Joint

Part# 1-543017

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

322-6

35

Capscrew, 5/16-18 X 1-1 /4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.38

1-603500

36

Spacer

Part# 1-603500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.87

32128-20

37

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74
