FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 370000 - 439999) (2003)

60" Turf Ranger Front Mount Mower

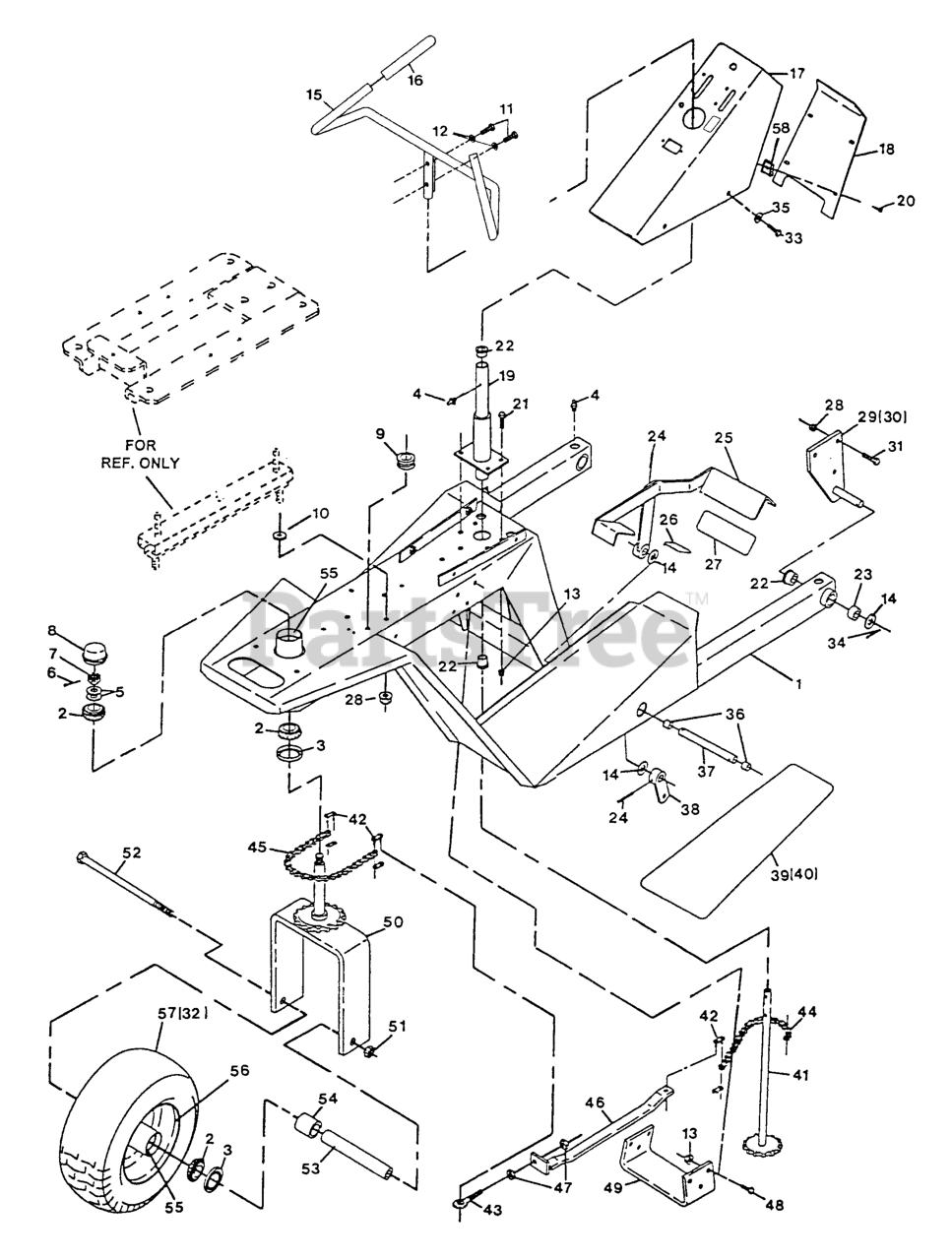

FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 370000 - 439999) (2003) > Parts Diagrams (17) > Rider Frame And Steering

  • Title
103-3440

1

Frame, Rider(1-542920-01) W/Pads,Decal,Bsgs, & Brg Cups

Part# 103-3440

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2340.13

1-543509

2

Bearing Cone, Tapered Roller

Part# 1-543509

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.77

1-543511

3

Seal, Grease

Part# 1-543511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

302-19

4

Zerk, 1/4-28 (Straight)

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.93

3256-28

5

Washer, 3/4SAE

Part# 3256-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.87

3272-17

6

Pin, Cotter 5/32 X 1.25

Part# 3272-17

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.42

32136-5

7

Nut, Slotted 3/4-16

Part# 32136-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.50

1-543513

8

Cap, Grease

Part# 1-543513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

1-543296

9

Grommet

Part# 1-543296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.08

3256-3

10

Washer, 5/16

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.37

323-7

11

Capscrew, 3/8-16 X 1-1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

98-5975

12

Washer, 3/8 Disc Spring

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

3290-357

13

Nut, Flange 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

1-303007

14

Washer, 6" Caster Pivot

Part# 1-303007

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.37

1-552023-03

15

Handle Bar

Part# 1-552023-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $219.05

1-303097

16

Grip, Handle Bar

Part# 1-303097 (Superseded to 104-9838)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.27

103-3438

17

Console (1-553063-01) W/ Decals

Part# 103-3438

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $154.61

1-543482-01

18

Cover, Console

Part# 1-543482-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.21

1-542728-03

19

Steering Post

Part# 1-542728-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $123.69

32104-60

20

Screw, 10-24 X 1/2

Part# 32104-60

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.78

323-4

21

Capscrew, 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

1-303199

22

Bushing, 6" Caster Flange

Part# 1-303199

OEM Warranty Repair Part for Exmark

Not available

1-303200

23

Sleeve, 6" Caster

Part# 1-303200

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.77

1-806331

24

Roll Pin, 1/4 X 1-1/4

Part# 1-806331

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.21

103-3439

25

Pedal, Ft (1-542183-01) W/Pad

Part# 103-3439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $170.10

1-543161

26

Pad, Reverse Control Pedal

Part# 1-543161

OEM Warranty Repair Part for Exmark

Not available

1-543160

27

Pad, Forward Control Pedal

Part# 1-543160

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.86

32128-20

28

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

1-542196-01

29

Bracket, Pivot (Rh)

Part# 1-542196-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $107.50

1-542194-01

30

Bracket, Pivot (Lh)

Part# 1-542194-01

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $107.50

322-5

31

Capscrew, 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

1-543679

32

Tire, 18 X 7.50-8

Part# 1-543679

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $115.00

321-3

33

Capscrew, 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.06

1-806332

34

Rollpin, 1/4 X 1-1/2

Part# 1-806332 (Superseded to 32121-15)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

3256-22

35

Washer, 1/4

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

1-513588

36

Bearing, Du

Part# 1-513588

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.15

1-543172-01

37

Shaft, Foot Pedal

Part# 1-543172-01

OEM Warranty Repair Part for Exmark

Currently unavailable

1-542140-01

38

Lever, Foot Pedal

Part# 1-542140-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $43.81

1-543159

39

Pad, Rider Anti-Skid (R)

Part# 1-543159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.45

1-543158

40

Pad, Rider Anti-Skid (L)

Part# 1-543158

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.45

1-552025

41

Shaft, Steering

Part# 1-552025

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $82.45

1-543573

42

Link, Connector #40

Part# 1-543573

OEM Warranty Repair Part for Exmark

Not available

1-543579

43

Eyebolt, 5/16-18

Part# 1-543579

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.05

1-543885

44

Chain, #40-29 Pitch

Part# 1-543885

OEM Warranty Repair Part for Exmark

Not available

1-543886

45

Chain, #40-33 Pitch

Part# 1-543886

OEM Warranty Repair Part for Exmark

Not available

1-542870-01

46

Link

Part# 1-542870-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $56.69

3218-2

47

Nut, Jam 5/16-18

Part# 3218-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

323-6

48

Capscrew, 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

1-553007-01

49

Stop, Actuator

Part# 1-553007-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.26

1-542872-01

50

Mount, Steering Wheel

Part# 1-542872-01

OEM Warranty Repair Part for Exmark

Not available

1-803042

51

Nut, Torque 5/8-11

Part# 1-803042

OEM Warranty Repair Part for Exmark

Not available

1-800346

52

Capscrew, 5/8-11 X 10-1/2

Part# 1-800346

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.58

1-543552

53

Bushing, Wheel

Part# 1-543552

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $47.72

1-543556

54

Spacer, Wheel (Short)

Part# 1-543556

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.55

1-543508

55

Bearing Cup

Part# 1-543508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.00

1-543674

56

Rim

Part# 1-543674

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $190.27

1-543397

57

Tire/Whl Assy, 18.0 X 7.50-8

Part# 1-543397

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $216.56

1-803055

58

U-Clip, #10-24

Part# 1-803055

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.55

1-850337

Exmark Red Touch Up Spray Paint

Part# 1-850337

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.61
