FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 370000 - 439999) (2003)

60" Turf Ranger Front Mount Mower

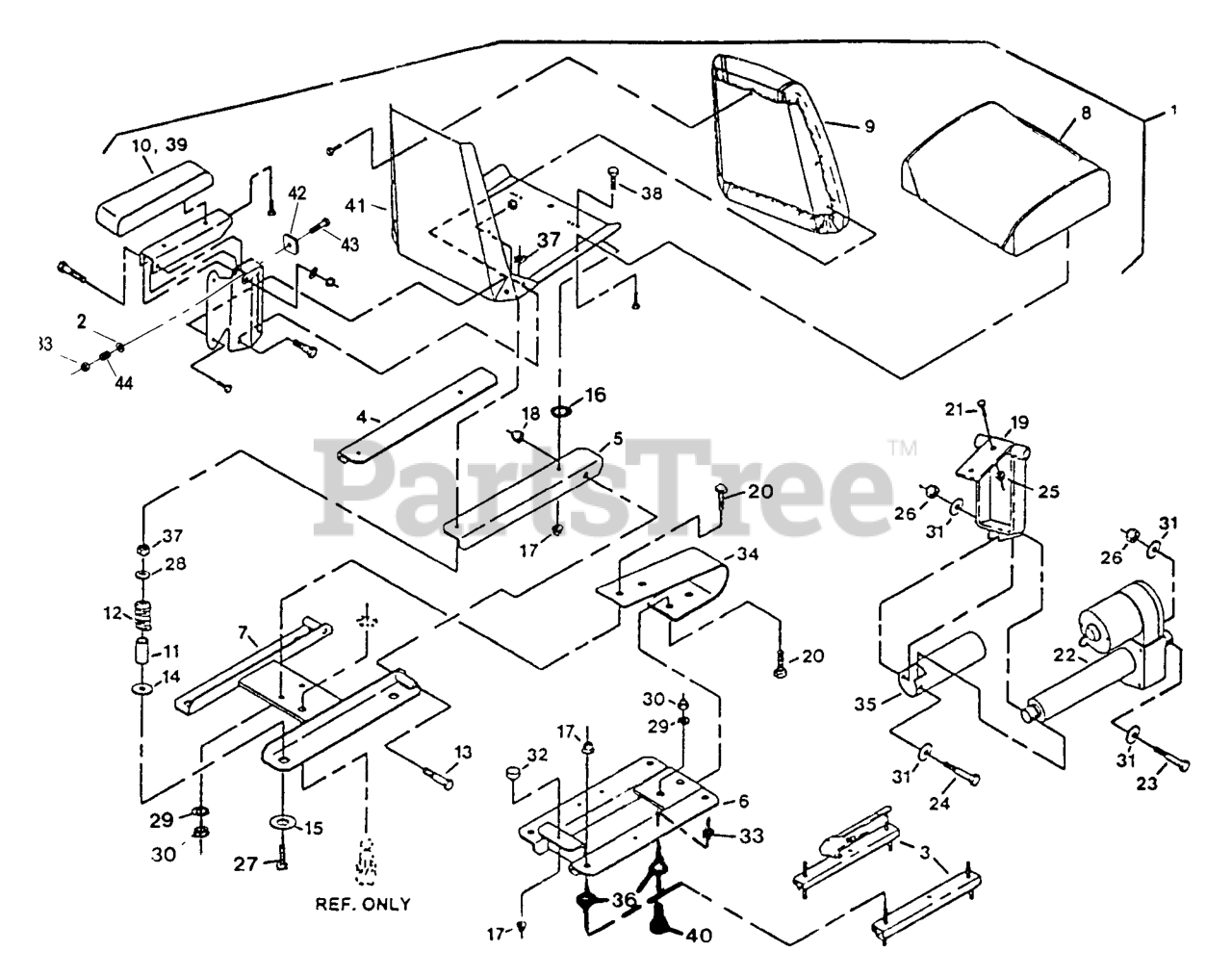

FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 370000 - 439999) (2003) > Parts Diagrams (17) > Seat Assy And Lift Actuator

  • Title
103-0465

1

Seat Complete W/Armrests

Part# 103-0465 (Superseded to 103-3524)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $499.21

3256-23

2

Washer, 5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

1-543357

3

Seat Track, Adjustable (6")

Part# 1-543357

OEM Warranty Repair Part for Exmark

Not available

1-543319-03

4

Rail, Seat (Lh)

Part# 1-543319-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $74.15

1-543321-03

5

Rail, Seat (Rh)

Part# 1-543321-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $74.15

1-542307

6

Base Rail, Seat

Part# 1-542307 (Superseded to 1-542307-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $136.58

1-542315-03

7

Seat Rail Wldmnt

Part# 1-542315-03

OEM Warranty Repair Part for Exmark

Not available

103-0290

8

Cushion, Seat

Part# 103-0290 (Superseded to 103-3521)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $204.23

103-0289

9

Cushion, Back Rest

Part# 103-0289 (Superseded to 103-3520)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $180.74

103-0292

10

Pad, Arm Rest (Rh)

Part# 103-0292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $71.65

1-513479

11

Bushing, Spring Guide

Part# 1-513479

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.22

1-513296

12

Spring

Part# 1-513296

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.68

325-13

13

Screw, 1/2-13 X 3 1/4

Part# 325-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.22

325-6

14

Washer, 1/2

Part# 325-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.74

1-213069

15

Strut, Adjustment Spacer

Part# 1-213069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.79

3256-4

16

Flatwasher, 3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

32128-20

17

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

3296-23

18

Nut, Nylock 1/2-13

Part# 3296-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

1-542283

19

Pivot Wldmnt, Actuator

Part# 1-542283 (Superseded to 1-542283-01)

OEM Warranty Repair Part for Exmark

Not available

325-5

20

Screw, 1/2-13 X 1 1/4

Part# 325-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

323-6

21

Screw, 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

1-543241

22

Actuator, Linear

Part# 1-543241

OEM Warranty Repair Part for Exmark

Not available

3212-9

23

Screw, 7/16-20 X 5

Part# 3212-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.11

3212-12

24

Screw, 7/16-20 X 3

Part# 3212-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.37

3290-357

25

Nut, Flange 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

3296-7

26

Nut, Nylock 7/16-20

Part# 3296-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.21

1-800015

27

Tap Bolt, 5/16-18 X 2 1/2

Part# 1-800015

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.23

3256-3

28

Washer, 5/16

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.37

3253-7

29

Washer, Lock 1/2

Part# 3253-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

3217-9

30

Nut, Nylock 1/2-13

Part# 3217-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

3256-25

31

Washer, 7/16

Part# 3256-25

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.18

1-543963

32

Bumper, Rubber

Part# 1-543963

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

3296-29

33

Nut, Nylock 5-16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

1-543356

34

Spring, Seat (Tr)

Part# 1-543356 (Superseded to 1-543356-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $124.79

1-543834

35

Guard, Actuator

Part# 1-543834

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.92

1-543401

36

Spacer, Track

Part# 1-543401

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.57

3217-6

37

Nut, 5/16-18

Part# 3217-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.12

323-3

38

Screw, 5/16-18 X 3/4

Part# 323-3 (Superseded to 323-34)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.05

103-0291

39

Pad, Arm Rest (Lh)

Part# 103-0291

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $71.65

32122-14

40

Screw, 5/16-18 X 3/4 Cr

Part# 32122-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

1-633859

41

Seat Frame

Part# 1-633859

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $160.15

103-0284

42

Tab, Armrest Adjustment

Part# 103-0284

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.86

322-7

43

Screw, 5/16-18 1 1/2

Part# 322-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

1-633349

44

Spring, Compression

Part# 1-633349

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.43

1-850337

Exmark Red Touch Up Spray Paint

Part# 1-850337

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.61
