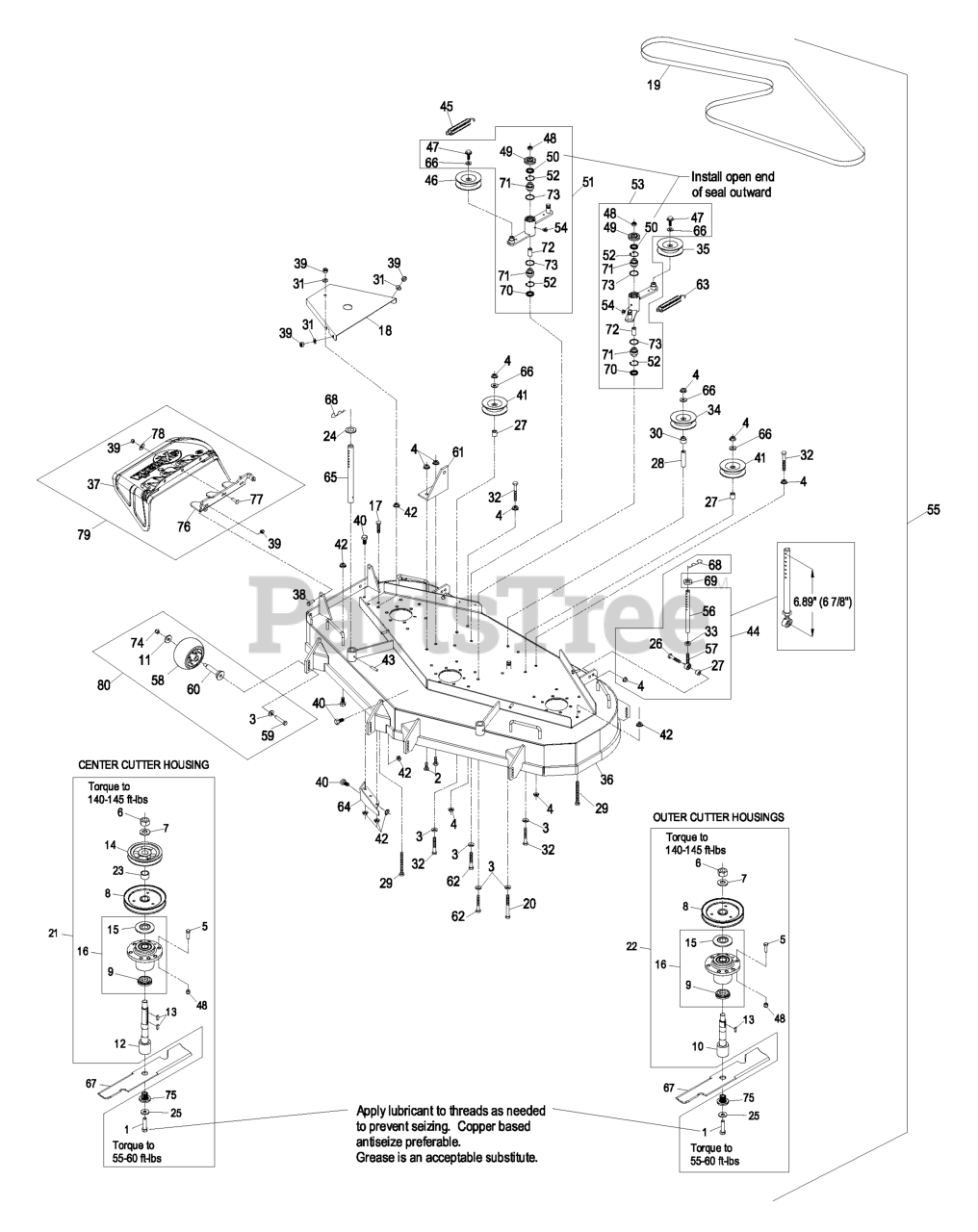

Exmark FMD604 - Exmark 60" Turf Tracer Front Mount Deck (SN: 000670000 - 000719999) (2007) Deck Group FMD524 52" Parts Lookup with Diagrams

1

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

4

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #6.

$13.99

$

Usually ships in 3-6 days

7

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$81.99

$

In Stock, Qty 8

9

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 4 left!

10

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$239.99

$

In Stock, only 1 left!

11

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

12

Exmark 103-9087

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$248.99

$

In Stock, only 2 left!

13

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 7

14

Exmark 103-2793

SHEAVE,MOWER DRIVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$192.99

$

Usually ships in 3-6 days

15

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, Qty 12

16

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$282.99

$

In Stock, Qty 14

17

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

18

Exmark 103-2969-01

SHIELD,BELT SIDE FMD524

$

Not available 

19

Exmark 103-2329

BELT,BLADE DRIVE FMD524

(Superseded to 103-2329-SL) 

$93.99

$

Usually ships in 3-6 days

20

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

21

Exmark 103-9084

ASM,CUTTER HSG FMD524 CTR

$813.99

$

Usually ships in 3-6 days

22

Exmark 103-9076

ASM, CUTTER HSG COMPLETE

$523.99

$

In Stock, only 4 left!

23

Exmark 103-3209

SPACER,TUBE

$8.99

$

Usually ships in 3-6 days

24

Exmark 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 20+

25

Exmark 1-513435

WASHER-SPRING

$5.99

$

In Stock, Qty 14

26

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

27

Exmark 1-603050

SPACER

$7.99

$

In Stock, Qty 7

28

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$13.99

$

In Stock, only 1 left!

29

Exmark 1-800017

BOLT,TAP HH

$7.99

$

In Stock, only 2 left!

30

Exmark 1-513791

BUSHING,IDLER

$5.99

$

In Stock, only 2 left!

31

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

32

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

33

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

34

Exmark 1-603805

PULLEY-IDLER

$58.99

$

In Stock, Qty 20+

35

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 20+

36

Exmark 109-4652

116-5949

(Superseded to 116-5949) 

$

Not available 

37

Exmark 109-2738

CHUTE,DISCHARGE

$86.99

$

In Stock, Qty 12

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

40

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

41

Exmark 1-303516

IDLER,PULLEY

$62.99

$

In Stock, only 3 left!

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

43

Exmark 1-806332

32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 20+

44

Exmark 1-411532

KIT,SUPPORT LINK W/PIN

Note: Link assembly nominal length is 6.89" (or approx. 6 7/8") between center of ball joint & center of furthest hole. See diagram on next page. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear of mower

$164.99

$

In Stock, Qty 8
