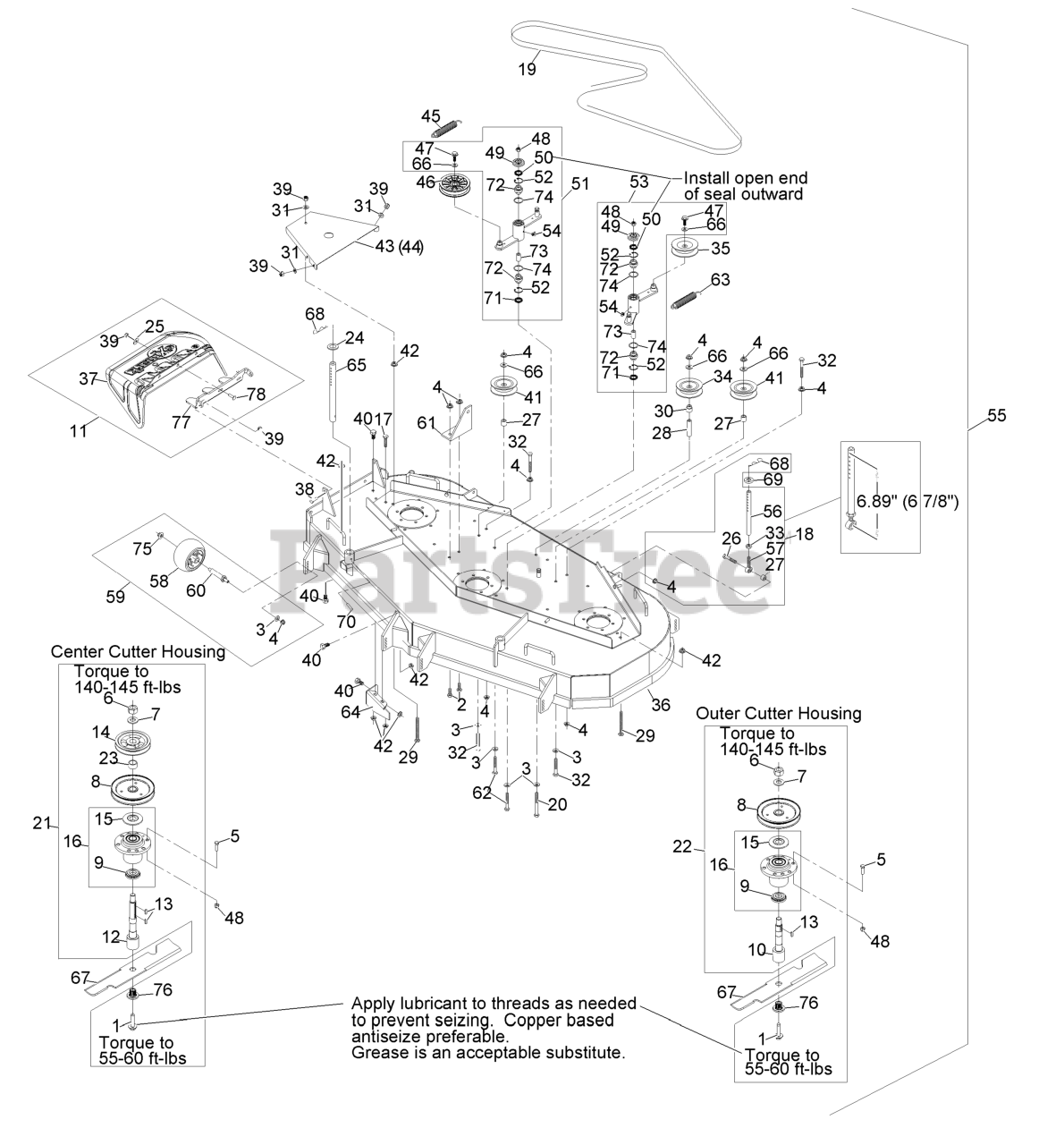

FMD604 - Exmark 60" Turf Tracer Front Mount Deck (SN: 000920000 - 000999999) (2011)

60" Turf Tracer Front Mount Deck

FMD604 - Exmark 60" Turf Tracer Front Mount Deck (SN: 000920000 - 000999999) (2011) > Parts Diagrams (3) > Deck Assembly

  • Title
109-5958

1

Screw-Hex Flange 1/2-20

Part# 109-5958 (Superseded to 109-9220)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

323-6

2

Screw-Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

98-5975

3

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

3290-357

4

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

323-8

5

Screw-Hh 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.66

3217-46

6

Nut-Hex 3/4-16 Heavy

Part# 3217-46

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

103-2802

7

Washer-Spring Disc 3/4

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

103-2794

8

Sheave, Blade Drive

Part# 103-2794

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $52.60

103-2535

9

Spacer-Guard Bottom

Part# 103-2535

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

103-9086

10

Kit, Splined Spindle 103-3036

Part# 103-9086

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $163.94

109-4722

11

Asm, Discharge Chute

Part# 109-4722

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $117.26

103-9087

12

Kit, Center Blade Spindle (Long)

Part# 103-9087

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $164.34

103-2982

13

Key-Machine 1/4 X 3/16 X 3/4

Part# 103-2982

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

103-2791

14

Sheave, Mower Drive

Part# 103-2791

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $55.05

103-1330

15

Guard-Bearing Top

Part# 103-1330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.33

103-8280

16

Kit, Cutter Housing

Part# 103-8280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $195.76

322-3

17

Screw-Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

1-411532

18

Kit, Support Link W/Pin

Part# 1-411532

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $107.50

1-633173

19

Belt, Blade Drive

Part# 1-633173

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $63.70

323-23

20

Screw-Hh 3/8-16 X 4-1/2

Part# 323-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.48

103-9083

21

Housing, Cutter Complete (Center)

Part# 103-9083

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $426.29

103-9076

22

Housing, Cutter Complete (Outer)

Part# 103-9076

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $345.98

103-3209

23

Spacer, Tube

Part# 103-3209

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.10

1-413425

24

Spacer

Part# 1-413425

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.06

3256-82

25

Washer

Part# 3256-82

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.68

323-9

26

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

1-603050

27

Spacer

Part# 1-603050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.31

1-633988

28

Spacer-Anchor, Clutch

Part# 1-633988

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.49

1-800017

29

Bolt-Hh 5/16-18 X 3 1/4 Tap

Part# 1-800017

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.94

1-513791

30

Bushing

Part# 1-513791

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

3256-3

31

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.37

323-12

32

Screw-Hh 3/8-16 X 2 1/2

Part# 323-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

3220-3

33

Nut-Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

1-603805

34

Pulley-Idler

Part# 1-603805

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $41.59

1-613098

35

Pulley-Idler

Part# 1-613098

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.69

109-4653

36

Deck, (116-3586-01) W/ Decals

Part# 109-4653 (Superseded to 116-5952)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2484.47

109-2738

37

Chute,Discharge

Part# 109-2738

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.10

322-5

38

Screw-Hh 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

3296-29

39

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

322-2

40

Screw-Hh 5/16-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.02

1-303516

41

Pulley, V-Idler

Part# 1-303516

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.36

32128-20

42

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

103-2967-01

43

Shield, Belt Rh

Part# 103-2967-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.95

103-2968-01

44

Shield, Belt Lh

Part# 103-2968-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.95

1-603413

45

Spring-Extension

Part# 1-603413

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.45

109-4077

46

Pulley, Idler

Part# 109-4077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.89

3234-11

47

Screw-Hh Flg 3/8-16 X 1

Part# 3234-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.41

3296-39

48

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

103-2916

49

Guard-Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.73

103-3506

50

Seal-Single Lip

Part# 103-3506

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.47

103-8072

51

Kit, Idler Arm W/Bearings

Part# 103-8072

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $140.70

32120-10

52

Ring-Retaining

Part# 32120-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.25

103-8071

53

Kit, Idler Arm W/Bearings

Part# 103-8071

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $150.49

302-40

54

Zerk-90deg 1/4-28

Part# 302-40

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.59

103-2279

55

Complete Deck Assy

Part# 103-2279

OEM Warranty Repair Part for Exmark

Currently unavailable

1-413525

56

Link, Rear Deck Support

Part# 1-413525

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $32.21

1-613204

57

Balljoint

Part# 1-613204

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.90

1-603299

58

Roller-Scalp, Anti

Part# 1-603299

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.57

103-4051

59

Kit, Anti Scalp

Part# 103-4051 (Superseded to 116-9981)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.36

99-2842

60

Spacer

Part# 99-2842 (Superseded to 126-2928)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.78

1-603620-01

61

Bracket, Spring Anchor

Part# 1-603620-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.76

98-5961

62

Screw-Hh 3/8-16 X 4 Gr8

Part# 98-5961

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.92

1-603414

63

Spring-Extension

Part# 1-603414

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.67

116-2072-01

64

Baffle

Part# 116-2072-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.18

1-603001

65

Rod, Deck Support

Part# 1-603001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.48

3256-24

66

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.55

103-6403

67

Blade, Notched 20.5 (.94 Hole)

Part# 103-6403 (Superseded to 103-6403-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.46

103-6383

67

Blade, Solid

Part# 103-6383 (Superseded to 103-6383-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.68

103-6388

67

Blade, Low Lift

Part# 103-6388 (Superseded to 103-6388-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.13

103-6393

67

Blade, Mulching

Part# 103-6393 (Superseded to 103-6393-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.24

103-6398

67

Blade, Extreme

Part# 103-6398 (Superseded to 116-5174-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.24

1-806009

68

Hairpin-Cotter #206

Part# 1-806009

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

1-323539

69

Spacer-Blade Drive

Part# 1-323539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.19

1-806332

70

Rollpin 1/4 X 1 1/2

Part# 1-806332 (Superseded to 32121-15)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

103-3505

71

Seal-Double Lip

Part# 103-3505

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.54

103-3504

72

Bearing-Spherical

Part# 103-3504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.69

1-413088

73

Spacer

Part# 1-413088

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.54

106-7159

74

O-Ring

Part# 106-7159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

109-6658

75

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

103-3037

76

Bushing,Splined

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

109-4573-01

77

Bracket, Discharge Chute

Part# 109-4573-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $72.89

3230-22

78

Bolt-Carriage 5/16-18 X 1 Sp

Part# 3230-22 (Superseded to 3230-22)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98
