FML 72 (59A40064727) - Cub Cadet Yanmar Tractor Finishing Mower Frame Parts Diagram

Tractor Finishing Mower

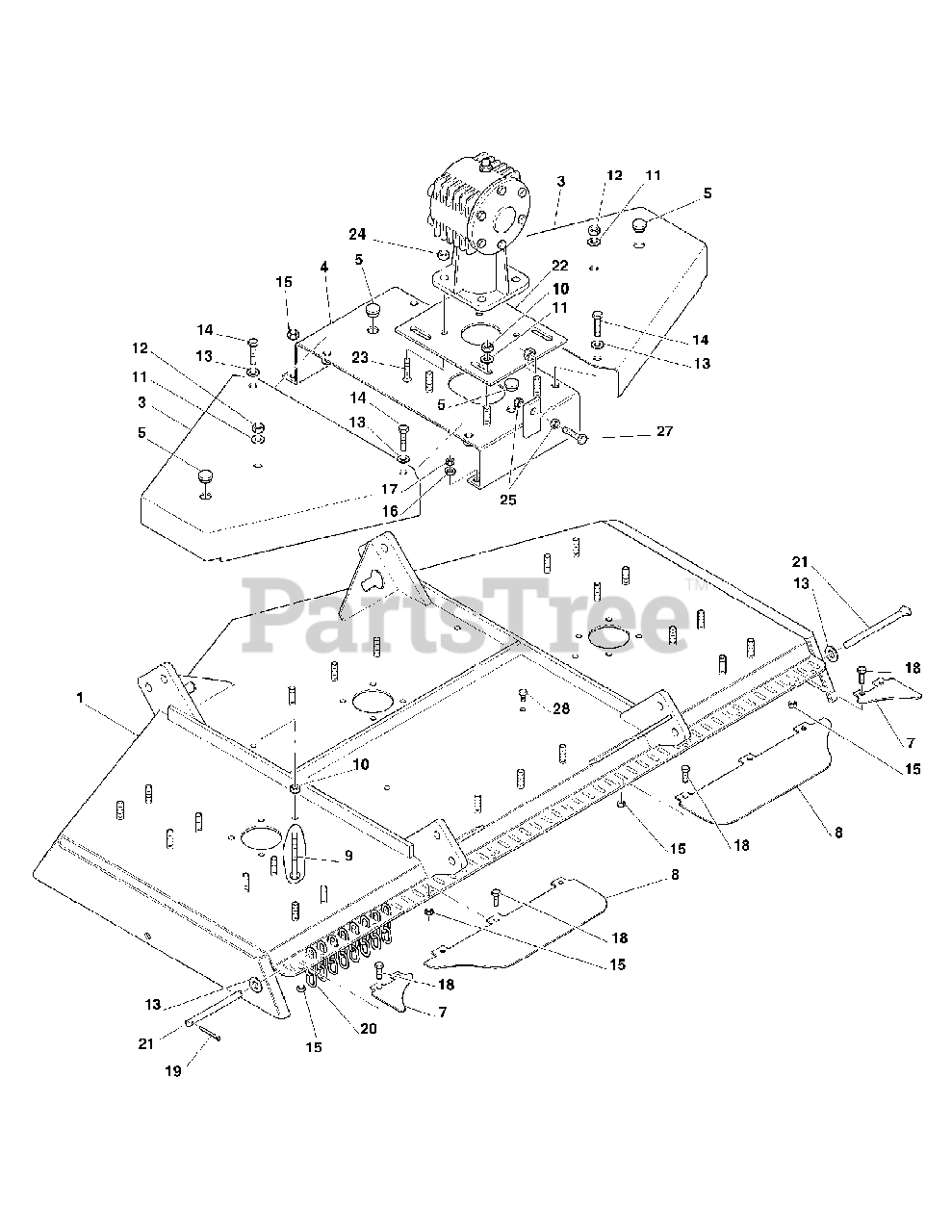

Frame Parts Diagram

  • Title

1

Cub Cadet YS-030-6900

Frame FML72

$

$

Not available

3

Cub Cadet YS-030-6989

Belt shield FML72

$

$

Not available

4

Cub Cadet YS-000-6913

Central plate FML72

$

$

Not available

5

Cub Cadet YS-000-6647

Cap
(Superseded to BF-000-6647)

$

$

Not available

7

Cub Cadet YS-002-0412

Side rear protection FML72

$

$

Not available

8

Cub Cadet YS-002-0415

Central rear protection

$

$

Not available

9

Cub Cadet YS-000-6943

Bolt TE 10x120
(Superseded to BF-000-6943)

$

$

Not available

10

Cub Cadet YS-001-4106

Locking nut M10
(Superseded to BF-001-4106)

$

$

Not available

11

Cub Cadet YS-003-0157

Flat washer M10
(Superseded to BF-003-0157)

$

$

Not available

12

Cub Cadet YS-001-5237

Locking nut M10
(Superseded to BF-001-5237)

$

$

Not available

13

Cub Cadet YS-000-2034

Flat washer Ø10
(Superseded to BF-000-2034)

$

$

Not available

14

Cub Cadet YS-003-3176

Bolt TE 10x25
(Superseded to BF-003-3176)

$

$

Not available

15

Cub Cadet YS-003-0156

Nut M10
(Superseded to BF-003-0156)

$

$

Not available

16

Cub Cadet YS-000-1280

Lock washer Ø10
(Superseded to BF-000-1280)

$

$

Not available

17

Cub Cadet YS-000-1279

Nut M10
(Superseded to BF-000-1279)

$

$

Not available

18

Cub Cadet YS-000-6349

Bolt TE 10x20
(Superseded to BF-000-6349)

$

$

Not available

19

Cub Cadet YS-004-4156

Cotter pin Ø4x25
(Superseded to BF-004-4156)

$

$

Not available

20

Cub Cadet YS-000-6764

Chain
(Superseded to BF-000-6764)

$

$

Not available

21

Cub Cadet YS-030-6762

Chain rod FML72

$

$

Not available

22

Cub Cadet YS-000-6541

Gearbox support plate
(Superseded to BF-000-6541)

$

$

Not available

23

Cub Cadet YS-007-4183

Bolt TSPEI 12x40

$

$

Not available

24

Cub Cadet YS-003-0064

Nut M12
(Superseded to BF-003-0064)

$

$

Not available

25

Cub Cadet YS-000-1106

Nut M12
(Superseded to BF-000-1106)

$

$

Not available

27

Cub Cadet YS-000-6547

Bolt TE 12x100
(Superseded to BF-000-6547)

$

$

Not available

28

Cub Cadet YS-005-1570

Cap

$

$

Not available

Cub Cadet YS-950-109B

Decal "DANGER - Avoid injury from PTO"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-111B

Decal "CAUTION - To avoid serious injury"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-818B

Decal "DANGER - Rotating blades; Thrown objects"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-406B

Decal "WARNING - Falling off"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-407B

Decal "WARNING - Crushing and pinching hazard"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-366B

Red reflective decal

Note: Not shown

$

$

Not available

Cub Cadet YS-950-445B

Decal "Cub Cadet Yanmar" Large

Note: Not shown

$

$

Not available

Cub Cadet YS-950-469B

Decal "FML72"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-461B

Decal "72 inch"

Note: Not shown

$

$

Not available
