FML 72 (59A40064727) - Cub Cadet Yanmar Tractor Finishing Mower Gearbox Parts Diagram

Tractor Finishing Mower

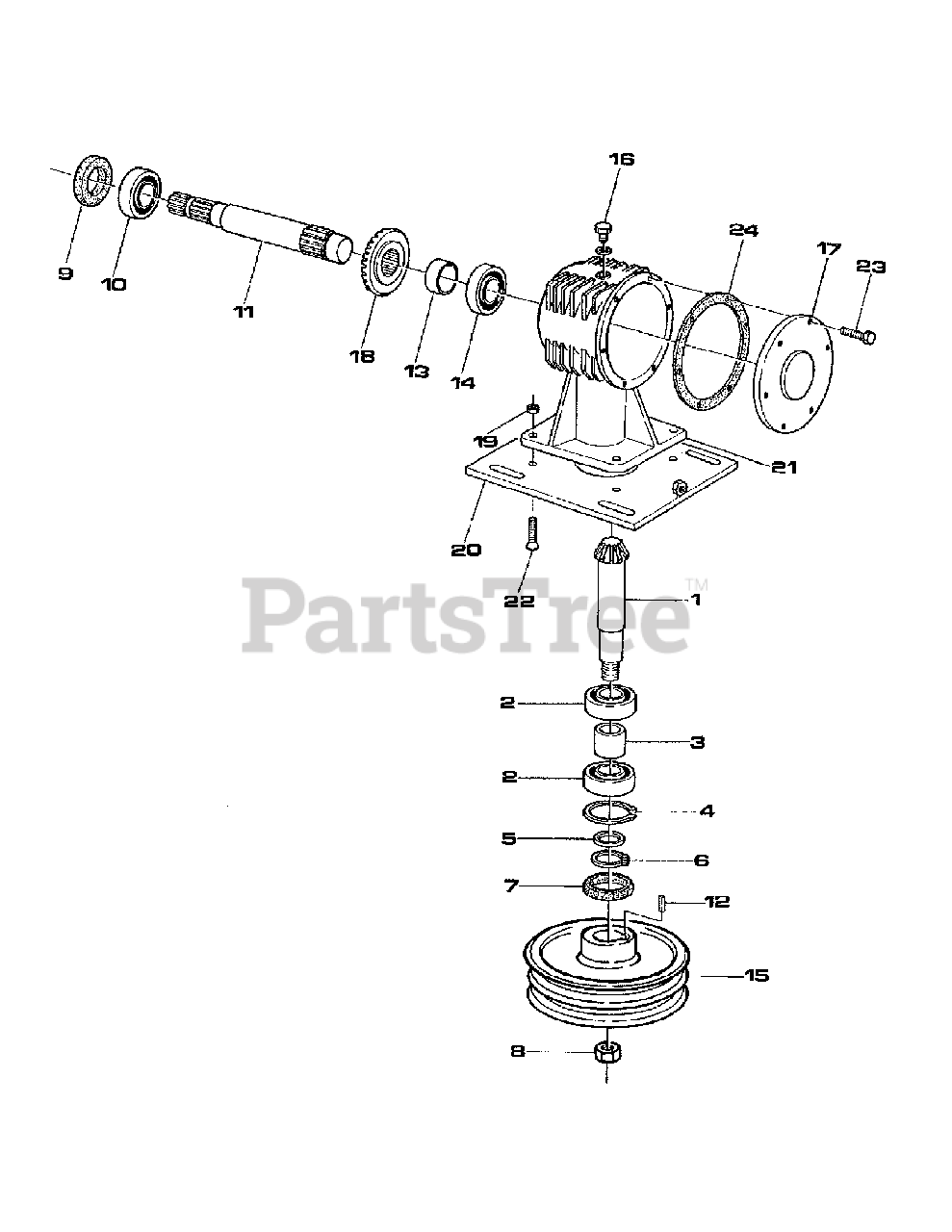

Gearbox Parts Diagram

  • Title

1

Cub Cadet YS-005-8479

Pinion Gear

$

$

Not available

2

Cub Cadet YS-001-2149

Bearing 6208
(Superseded to BF-001-2149)

$

$

Not available

3

Cub Cadet YS-000-6687

Spacer
(Superseded to BF-000-6687)

$

$

Not available

4

Cub Cadet YS-000-1154

Inner snap ring Ø80
(Superseded to BF-000-1154)

$

$

Not available

5

Cub Cadet YS-000-6685

Spacer washer
(Superseded to BF-000-6685)

$

$

Not available

6

Cub Cadet YS-000-8138

Outer snap ring Ø40
(Superseded to BF-000-8138)

$

$

Not available

7

Cub Cadet YS-000-6684

Oil seal 40.80.10
(Superseded to BF-000-6684)

$

$

Not available

8

Cub Cadet YS-000-6698

Nut M25
(Superseded to BF-000-6698)

$20.99

$

In Stock, only 1 left!

0

9

Cub Cadet YS-000-2295

Oil seal 35.62.10
(Superseded to BF-000-2295)

$28.99

$

Usually ships in 3-6 days

0

10

Cub Cadet YS-002-5332

Bearing 6207
(Superseded to BF-002-5332)

$

$

Not available

11

Cub Cadet YS-005-8464

Input shaft

$

$

Not available

12

Cub Cadet YS-000-6689

Key 8x7x30
(Superseded to BF-000-6689)

$

$

Not available

13

Cub Cadet YS-000-6661

Rear spacer

$

$

Not available

14

Cub Cadet YS-005-8472

Bearing 30206
(Superseded to BF-005-8472)

$

$

Not available

15

Cub Cadet YS-000-6692

Pulley SPB 250x2
(Superseded to BF-000-6692)

$

$

Not available

16

Cub Cadet YS-000-1107

Breather cap
(Superseded to BF-000-1107)

$

$

Not available

17

Cub Cadet YS-000-6656

Gear cover
(Superseded to BF-000-6656)

$

$

Not available

18

Cub Cadet YS-005-8477

Ring gear

$

$

Not available

19

Cub Cadet YS-003-0064

Nut M12
(Superseded to BF-003-0064)

$

$

Not available

20

Cub Cadet YS-000-6541

Gearbox support plate
(Superseded to BF-000-6541)

$

$

Not available

21

Cub Cadet YS-000-6658

Gearbox housing
(Superseded to BF-000-6658)

$

$

Not available

22

Cub Cadet YS-007-4183

Bolt TSPEI 12x40

$

$

Not available

23

Cub Cadet YS-000-6349

Bolt TE 10x20
(Superseded to BF-000-6349)

$

$

Not available

24

Cub Cadet YS-003-0193

Gasket (0.012)
(Superseded to BF-003-0193)

$

$

Not available

24

Cub Cadet YS-013-0193

Gasket (0.028)
(Superseded to BF-013-0193)

$

$

Not available

Cub Cadet YS-050-0642

Gearbox 540 rpm complete
(Superseded to BF-050-0642)

Note: Not shown

$

$

Not available
