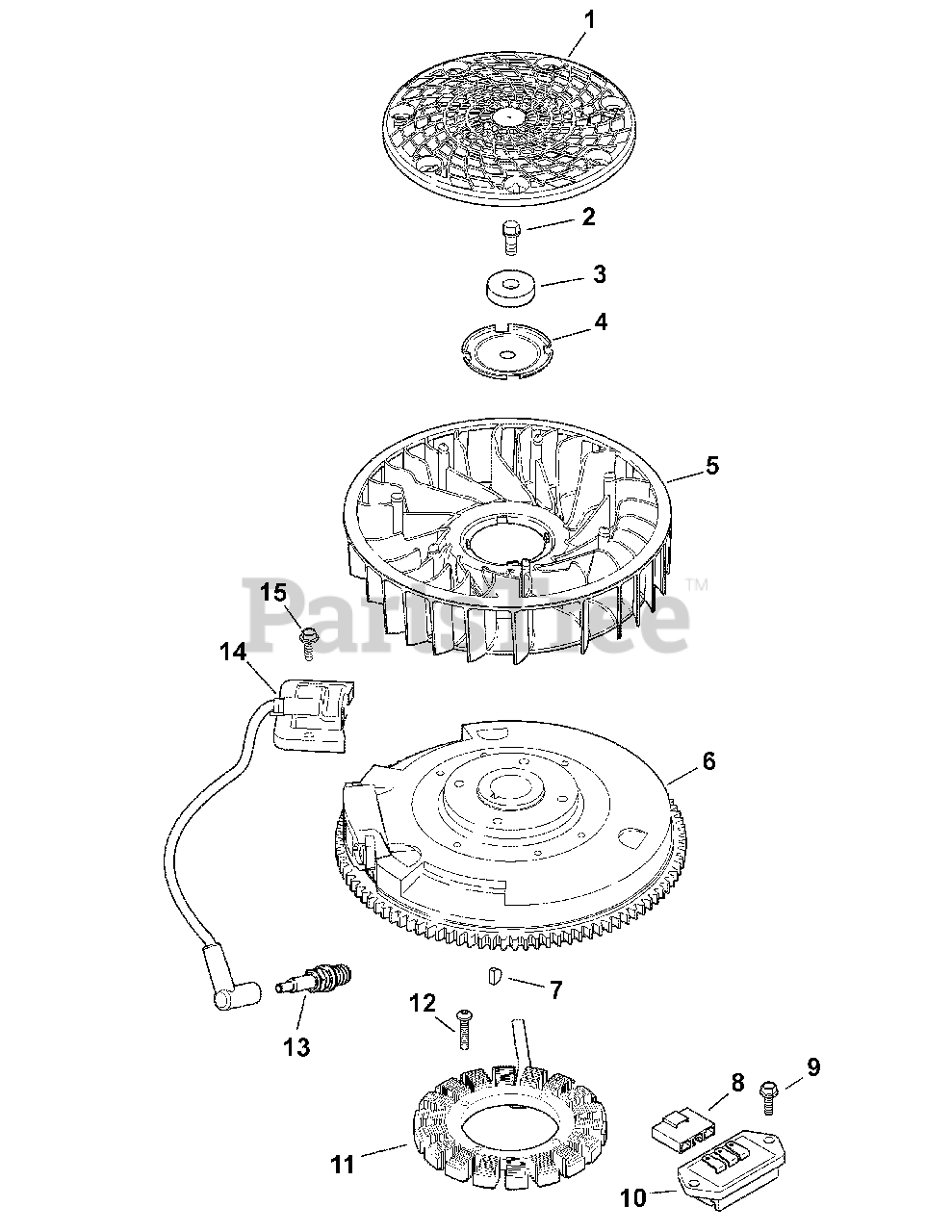

  • Title

1

Cub Cadet KH-32-162-03-S

Screen, Grass

$4.99

$

In Stock, Qty 13

0

2

Cub Cadet KH-12-086-14

Screw, Flange, M10 x 1.5 x 45
(Superseded to KH-25-086-361-S)

$3.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-12-468-03

Washer, Flat 13/32

$

$

Not available

4

Cub Cadet KH-20-146-05-S

Plate, Fan Mounting

$2.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-32-157-01-S

Fan
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, Qty 10

0

6

Cub Cadet KH-32-025-16-S

Flywheel
(Superseded to KH-32-025-22-S)

$346.99

$

In Stock, only 4 left!

0

7

Cub Cadet KH-X-42-15

Key, 3/16 x 5/8

$

$

Not available

8

Cub Cadet KH-25-155-41-S

Connector

$7.99

$

In Stock, Qty 11

0

9

Cub Cadet KH-M-545016-S

Screw, Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

10

Cub Cadet KH-41-403-10-S

Rectifi er-Regulator
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 6

0

11

Cub Cadet KH-237878

Kit, 15 Amp Stator

$149.99

$

In Stock, Qty 15

0

12

Cub Cadet KH-20-086-22-S

Screw, Torx Head Drive
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet 759-3336

Plug, Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-584-45-S

Module, Ignition
(Superseded to KH-24-584-201-S)

$102.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-M-545020-S

Screw, Flnge Thrd. Frmng M5 x 0.8x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

Cub Cadet KH-25-454-03-S

Tie, Wire

Note: Not Shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-32-176-14-S

Harness, Wiring

Note: Not Shown

$

$

Not available

Cub Cadet KH-25-452-01-S

Terminal

Note: Not Shown

$5.49

$

Usually ships in 2-5 days

0
