FMZ 50 (17AF4BFP209) - Cub Cadet 50" Zero-Turn Mower Engine Blower Housing and Baffles Parts Diagram

50" Zero-Turn Mower

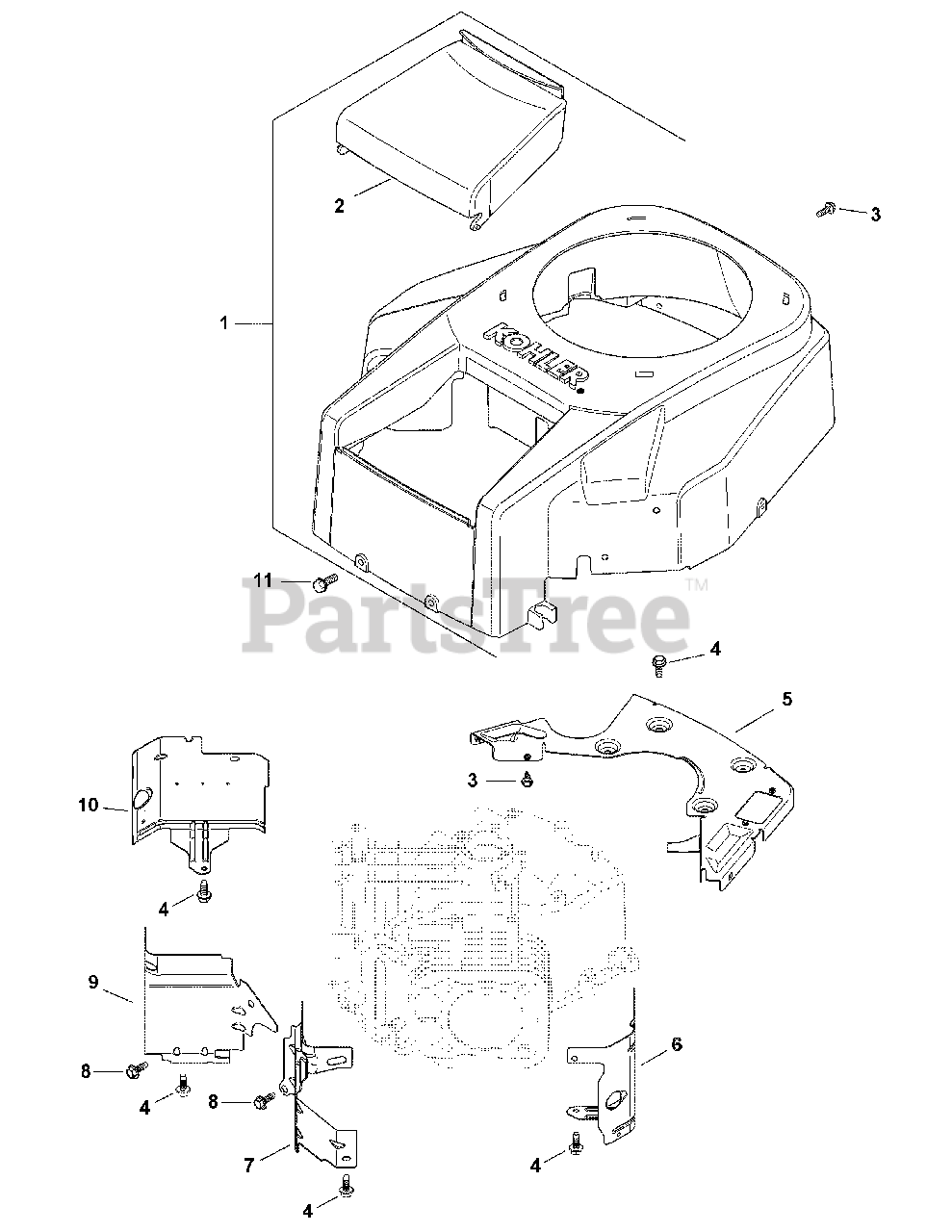

Engine Blower Housing and Baffles Parts Diagram

  • Title

1

Cub Cadet KH-32-027-03-S

Kit, Blower Hsng

Note: (Incl. Ref.2 & KH-41-037-10-S)

$

$

Not available

2

Cub Cadet KH-32-096-08-S

Cover, Air Cleaner

$8.99

$

In Stock, only 2 left!

0

3

Cub Cadet KH-M-545016-S

Screw, Flnge Thrd. Frmng M5 x 0.8x 16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-M-645016-S

Screw, Flnge Thrd. Frmng M6 x 1.0 x 16

$4.99

$

In Stock, Qty 9

0

5

Cub Cadet KH-32-146-05-S

Plate, Backing

$

$

Not available

6

Cub Cadet KH-32-063-12-S

Baffle, Cyl. Barrel - #2 Side

$19.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-32-063-02-S

Baffle, Valley #2 Side

$

$

Not available

8

Cub Cadet KH-M-545010

Screw, Flnge Thrd. Frmng M5 x 0.8x 10
(Superseded to KH-M-0545010)

$

$

Not available

9

Cub Cadet KH-32-063-03-S

Baffle, Valley #1 Side
(Superseded to KH-24-063-93-S)

$

$

Not available

10

Cub Cadet KH-32-063-10-S

Baffle, Cylinder Barrel - #1 Side

$15.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-086-12

Screw, Tap, M6 x 1.7 x 18

$

$

Not available

Cub Cadet KH-41-037-10-S

Nameplate, Service

Note: Not Shown

$12.99

$

In Stock, only 1 left!

0

Cub Cadet KH-32-113-52-S

Decal, Cub Kohler Courage

Note: Not Shown

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-32-113-47-S

Decal, Cub Cadet Kohler 22

Note: Not Shown

$

$

Not available
