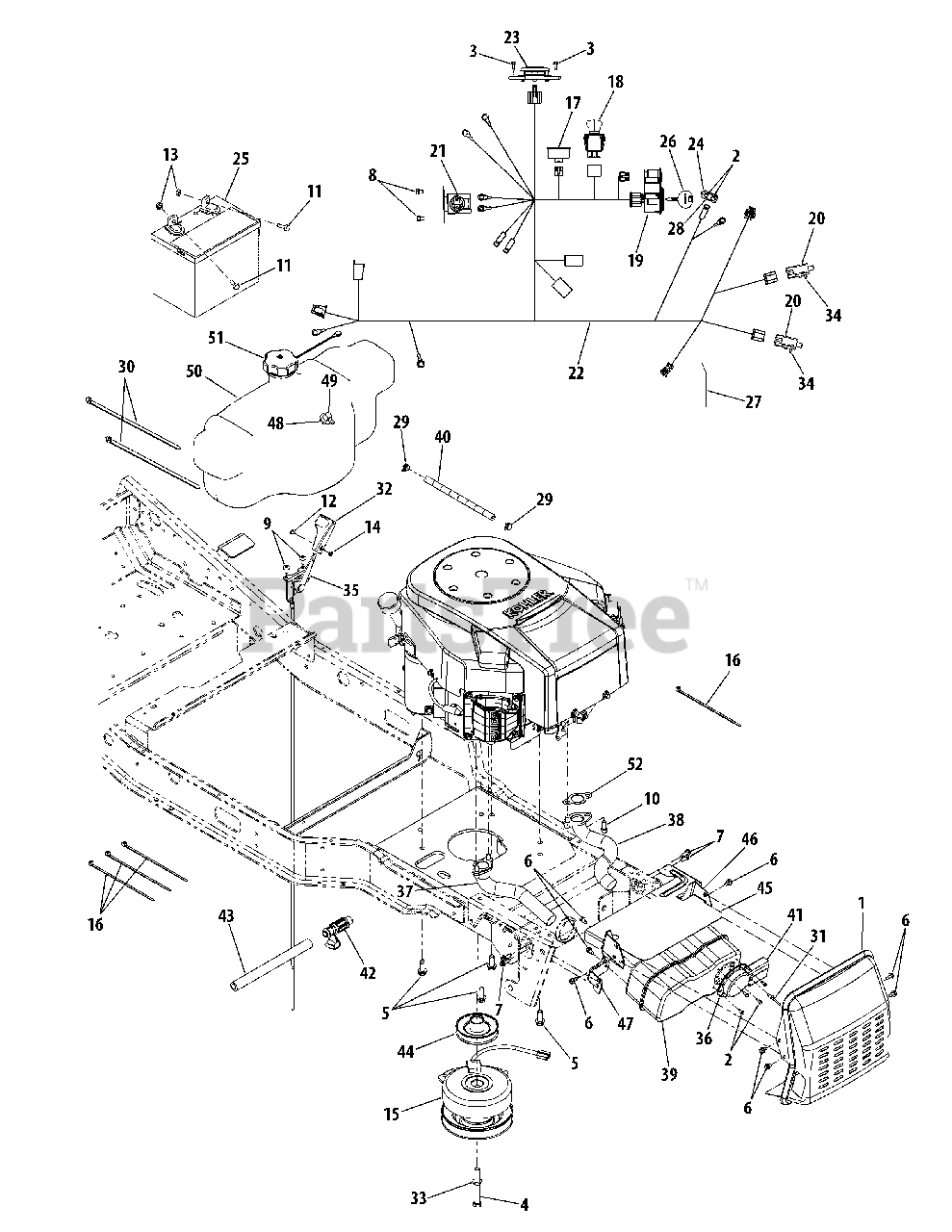

FMZ 50 (17AF4BFP710) - Cub Cadet 50" Zero-Turn Mower Engine Connections & Battery Parts Diagram

50" Zero-Turn Mower

Engine Connections & Battery Parts Diagram

  • Title

1

Cub Cadet 683-04256

Shield, Muffler
(Superseded to 683-04256-0637)

Variations

Cub Cadet 683-04256-0637

Muffler Shield Assembly - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0227

Screw, Hex Wash. Hd. Tapp, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04261

Screw, Hex Wash. Hd. Tapp, #12-16 x .5

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04379A

Screw, Hex Cap Lock, 7/16-20 x 3.5 Gr5

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04683

Screw, Hex Wash. Hd. Tapp, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0624

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .75

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0653

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .375

$4.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-1017

Screw, Truss Hd. Torx, 1/4-14 x .625

$8.99

$

In Stock, Qty 14

0

10

Cub Cadet 710-1314A

Screw, Socket Hd., 5/16-18 x .75

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 Gr5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3217

Screw, Truss Hd. Phillips Mach., #8-32 x .375

$7.49

$

In Stock, only 4 left!

0

13

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.99

$

In Stock, Qty 17

0

14

Cub Cadet 712-0142

Nut, Hex, #8-32 GrA

$4.99

$

In Stock, Qty 7

0

15

Cub Cadet 717-04552

Clutch, Electric PTO
(Superseded to 917-04552)

$563.99

$

In Stock, only 2 left!

0

16

Cub Cadet 725-0157

Tie, Cable, 3/16 x 7.4

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 725-04022B

Meter, Indicator/Hour
(Superseded to 925-04022B)

$155.99

$

In Stock, only 4 left!

0

18

Cub Cadet 725-04174

Switch, Electric PTO
(Superseded to 925-04174A)

$74.99

$

In Stock, Qty 20+

0

19

Cub Cadet 725-04227B

Module, Key Switch
(Superseded to 925-06119C)

$123.99

$

In Stock, Qty 20+

0

20

Cub Cadet 725-04363

Switch, Interlock

$16.99

$

In Stock, Qty 20+

0

21

Cub Cadet 725-04439

Solenoid
(Superseded to 725-04439B)

$42.99

$

In Stock, Qty 20+

0

22

Cub Cadet 725-04690

Harness, Wire
(Superseded to 925-04690)

$191.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 725-04708

Switch, Seat
(Superseded to 925-04708)

$

$

Not available

24

Cub Cadet 725-1644

Switch, Spring

$10.99

$

In Stock, Qty 10

0

25

Cub Cadet 925-1707D

Battery

$

$

Not available

26

Cub Cadet 725-2054A

Key, Ignition
(Superseded to 925-2054A)

$18.99

$

In Stock, Qty 20+

0

27

Cub Cadet 726-0154

Tie, Cable
(Superseded to 926-0154)

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 726-0320

Plate, Insulator
(Superseded to 926-0320)

$7.49

$

In Stock, Qty 9

0

29

Cub Cadet 726-0205

Clamp, Hose

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 726-0230

Tie, Cable

$28.99

$

In Stock, only 1 left!

0

31

Cub Cadet 728-04000

Rivet, Pop, .188 x .3

$7.49

$

In Stock, Qty 6

0

32

Cub Cadet 731-04914

Knob, Throttle Control

$13.99

$

In Stock, Qty 5

0

33

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.99

$

In Stock, Qty 11

0

34

Cub Cadet 738-04237A

Screw, Shoulder, #10-32 x .5

$6.49

$

In Stock, only 2 left!

0

35

Cub Cadet 746-04539

Cable, Throttle Control, 41.5 Long
(Superseded to 746P04539)

$45.99

$

In Stock, only 4 left!

0

36

Cub Cadet 751-0564B

Defl ector, Muffler

$14.99

$

In Stock, Qty 10

0

37

Cub Cadet 751-10006

Pipe, Exhaust RH

$162.99

$

In Stock, only 1 left!

0

38

Cub Cadet 751-10007

Pipe, Exhaust LH

$236.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 751-10161

Muffler, Dual Inlet
(Superseded to 951-10161)

$91.99

$

In Stock, only 2 left!

0

40

Cub Cadet 751-10349

Hose, Fuel Line

$9.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 751-10353

Deflector, Muffler
(Superseded to 751-11053B)

$5.99

$

In Stock, Qty 14

0

42

Cub Cadet 751-10517

Valve, Oil Drain
(Superseded to 951-10517A)

$25.99

$

In Stock, Qty 20+

0

43

Cub Cadet 751-3141

Hose, Oil Drain Extension
(Superseded to 751-3141-14)

$12.99

$

In Stock, Qty 18

0

44

Cub Cadet 756-0978B

Pulley, Engine

$70.99

$

In Stock, Qty 20+

0

45

Cub Cadet 783-04783A

Shield, Heat

$

$

Not available

46

Cub Cadet 783-04870

Bracket, Muffler LH
(Superseded to 783-04870-0637)

Variations

Cub Cadet 783-04870-0637

Muffler Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

47

Cub Cadet 783-04872

Bracket, Muffler RH
(Superseded to 783-04872-0637)

Variations

Cub Cadet 783-04872-0637

Muffler Bracket, RH - POWDER BLACK (0637)

$

$

Not available

$

$

48

Cub Cadet 735-0149

Bushing, Rubber
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

49

Cub Cadet 751-10442

Fitting, Fuel Pickup

$34.99

$

In Stock, Qty 13

0

50

Cub Cadet 751-10692

Tank, Fuel, 3.5 Gallon
(Superseded to 951-05137A)

$

$

Not available

51

Cub Cadet 751-10703

Cap, Fuel
(Superseded to 951-12428)

$45.99

$

In Stock, Qty 20+

0

52

Cub Cadet KH-24-041-49-S

Gasket, Exhaust

$3.49

$

Usually ships in 2-5 days

0
