FR-11 (136-001-190) - White Outdoor Front-Mount Riding Mower (1986)

Front-Mount Riding Mower

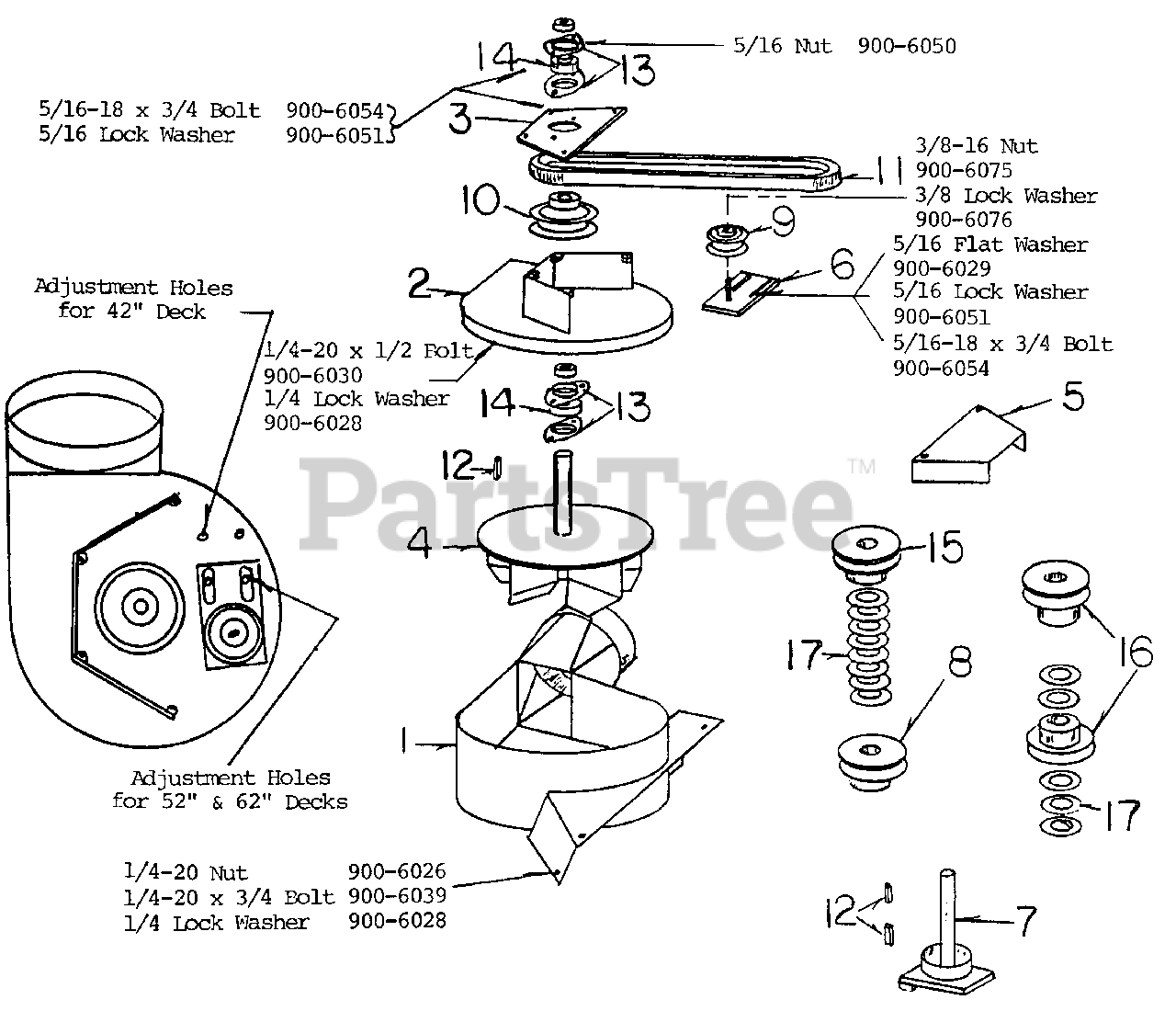

FR-11 (136-001-190) - White Outdoor Front-Mount Riding Mower (1986) > Parts Diagrams (16) > Blower Assembly

  • Title
WD-400-0000

1

Blower Housing 42" & 52" Deck

Part# WD-400-0000

OEM Warranty Repair Part for White Outdoor

Not available

WD-400-0007

Blower Housing 62" Deck

Part# WD-400-0007

OEM Warranty Repair Part for White Outdoor

Not available

WD-400-0001

2

Blower Cap

Part# WD-400-0001

OEM Warranty Repair Part for White Outdoor

Not available

WD-400-0002

3

Blower Bearing Plate

Part# WD-400-0002

OEM Warranty Repair Part for White Outdoor

Not available

WD-400-0001

4

Blower Blade Assembly

Part# WD-400-0001

OEM Warranty Repair Part for White Outdoor

Not available

WD-400-0004

5

Blower Blade

Part# WD-400-0004

OEM Warranty Repair Part for White Outdoor

Not available

WD-400-0005

6

Belt Tightener

Part# WD-400-0005

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0031

7

Long Spindle Shaft 42" & 52" Deck

Part# WD-300-0031

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0040

LoIIg Spindle Shaft 62" Deck

Part# WD-300-0040 (Superseded to WD-C37948)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2507

8

Pulley 42" Deck

Part# WD-900-2507 (Superseded to WD-C37887)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2501

9

Idler Pulley

Part# WD-900-2501 (Superseded to WD-C38864)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2521

10

Blower Pulley

Part# WD-900-2521 (Superseded to WD-C37933)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $84.69

WD-900-3010

11

Belt 42" Deck W/l6 0 or 18 HP

Part# WD-900-3010 (Superseded to WD-C37762)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3011

Belt 42" Deck w/ 1205 HP

Part# WD-900-3011

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3000

Belt 52" Deck

Part# WD-900-3000

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3014

Belt 62" Deck

Part# WD-900-3014

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0021

12

Key

Part# WD-300-0021 (Superseded to 914-0105)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

WD-900-3508

13

Flange

Part# WD-900-3508 (Superseded to 941-0311)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3509

14

3/4" Bearing w/ lock collar

Part# WD-900-3509

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2507

15

Spindle Pulley 42" Deck w/ 16 or 18 HP

Part# WD-900-2507 (Superseded to WD-C37887)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2528

Spindle Pulley 42" Deck w/ 12.5 HP

Part# WD-900-2528

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2511

16

Spindle Pulley 52" Deck

Part# WD-900-2511 (Superseded to WD-C37931)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2512

Spindle Pulley 62" Deck

Part# WD-900-2512

OEM Warranty Repair Part for White Outdoor

Not available

17

UNKNOWN

Part#

Not available
