FR-11 (137-001-190) - White Outdoor Front-Mount Riding Mower (1988)

Front-Mount Riding Mower

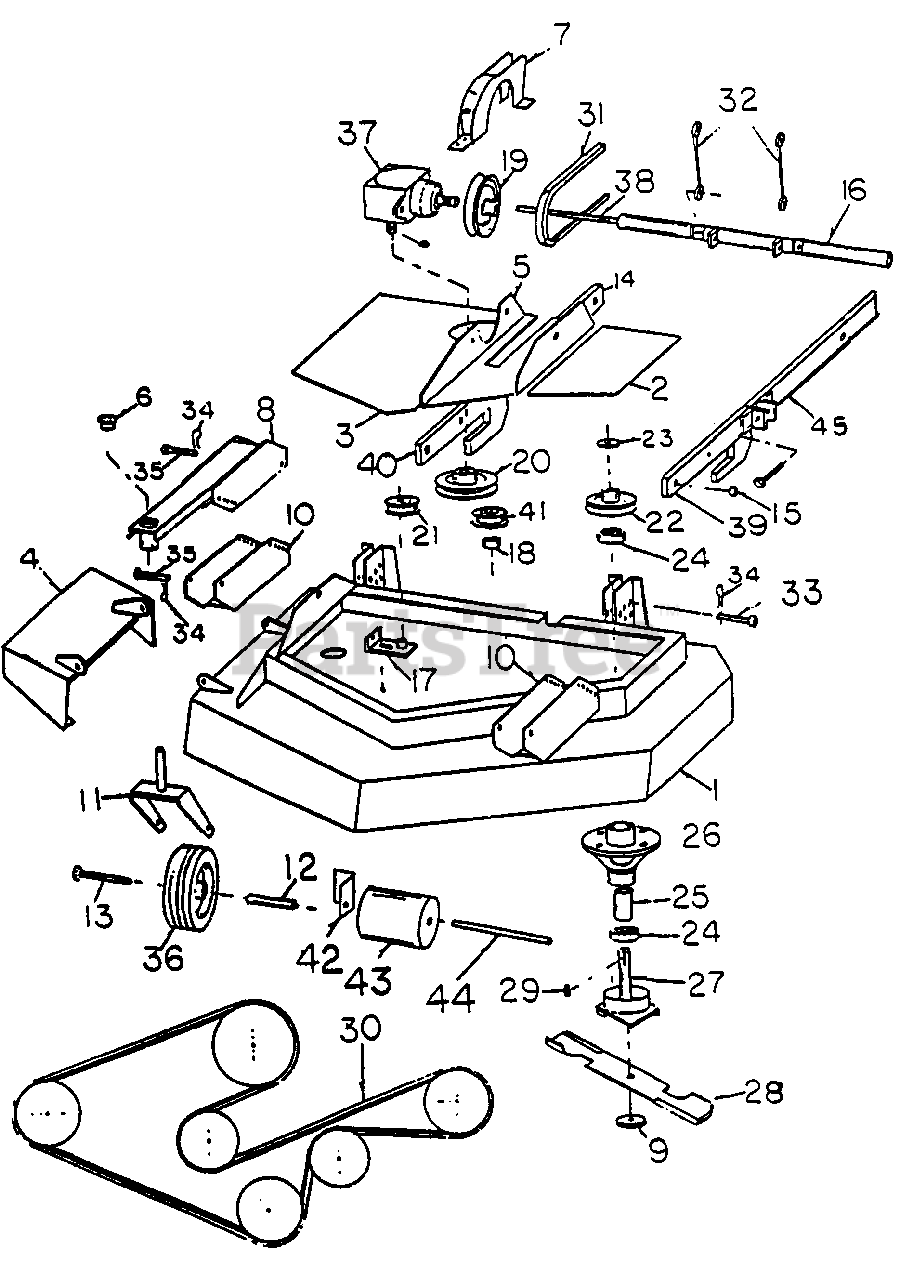

FR-11 (137-001-190) - White Outdoor Front-Mount Riding Mower (1988) > Parts Diagrams (12) > 42" Mower Deck (0042-T-11)

  • Title
WD-300-0000

1

MOWER DECK

Part# WD-300-0000

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0001

2

COVER (SMALL)

Part# WD-300-0001

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0028

3

COVER (LARGE)

Part# WD-300-0028

Not available

WD-300-0035

4

FOOT GUARD

Part# WD-300-0035

Not available

WD-301-0004

5

GEAR BOX MOUNT

Part# WD-301-0004

Not available

WD-900-3507

6

GAGE WHEEL BUSHING

Part# WD-900-3507

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0036

7

BELT GUARD

Part# WD-300-0036

Not available

WD-300-0007

8

GAGE WHEEL MOUNT

Part# WD-300-0007

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5534

9

SPRING WASHER

Part# WD-900-5534

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0009

10

BRACKET, GAGE WHEEL MOUNT

Part# WD-300-0009

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0010

11

PORK, GAGE WHEEL

Part# WD-300-0010

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0011

12

AXLE, GACE WHEEL

Part# WD-300-0011

OEM Warranty Repair Part for White Outdoor

Not available

13

GAGE WHEEL BOLT

Part#

Not available

WD-301-0024

14

DECK LIFT ARM BACK ADJUSTABLE

Part# WD-301-0024

Not available

WD-300-0013

15

BUSHING, DECK LIFT ARM

Part# WD-300-0013 (Superseded to WD-C37586)

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0014

16

CROSSHAIR

Part# WD-300-0014

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0015

17

BELT TIGHTNER

Part# WD-300-0015

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0016

18

SPACER, IDLER

Part# WD-300-0016 (Superseded to WD-C37937)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2525

19

PULLEY, GEAR B0X

Part# WD-900-2525 (Superseded to WD-C37892)

Note: (IN-PUT)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2505

20

PULLEY, GEAR B0X

Part# WD-900-2505

Note: (OUT-PUT)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2518

21

PULLEY, IDLER TIGHTENER

Part# WD-900-2518

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2507

22

PUELEY, SPINDLE

Part# WD-900-2507 (Superseded to WD-C37887)

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0017

23

WASHER, SPINDLE

Part# WD-300-0017

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3506

24

BEARING, SPINDLE

Part# WD-900-3506 (Superseded to WD-C42786P)

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0027

25

SPACER, SPINDLE

Part# WD-300-0027

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0025

26

HOUSING, SPINDLE

Part# WD-300-0025

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0026

27

SHAFT, SPINDLE

Part# WD-300-0026 (Superseded to WD-C37883)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5531

28

BLADE

Part# WD-900-5531

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0021

29

KEY, SPINDLE

Part# WD-300-0021 (Superseded to 914-0105)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

WD-900-3003A

30

DECK BELT

Part# WD-900-3003A

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3004

31

DRIVE BELT

Part# WD-900-3004

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5518

32

CALE, DECK

Part# WD-900-5518

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5519

33

PINS, DECK

Part# WD-900-5519

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5520

34

HAIR PINS

Part# WD-900-5520

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5521

35

PINS, GAGE WHEEL

Part# WD-900-5521

Not available

WD-900-4007

36

GAGE WHEEL

Part# WD-900-4007

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5526

37

GEAR BOX

Part# WD-900-5526

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0022

38

CROSS BAR PI

Part# WD-300-0022

Not available

WD-300-0023

39

L.H. 1 DECK LIFT ARM FRONT ADJUSTABLE

Part# WD-300-0023

Not available

WD-300-0023

40

R.H. 1 DECK LIFT ARM FRONT ADJUSTALE 0 R.H,

Part# WD-300-0023

Not available

WD-900-2508B

41

IDLER PULLEY

Part# WD-900-2508B

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0037

42

ROLLAR BRACKET

Part# WD-300-0037

Not available

WD-900-5559

43

RUBBER ROLLAR

Part# WD-900-5559

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0038

44

ROLLAR SHAFT

Part# WD-300-0038

OEM Warranty Repair Part for White Outdoor

Not available

WD-301-0024

45

L.H. 1 DECK LIFT ARM BACK ADJUSTABLE

Part# WD-301-0024

Not available
