FR-11 (137-001-190) - White Outdoor Front-Mount Riding Mower (1988)

Front-Mount Riding Mower

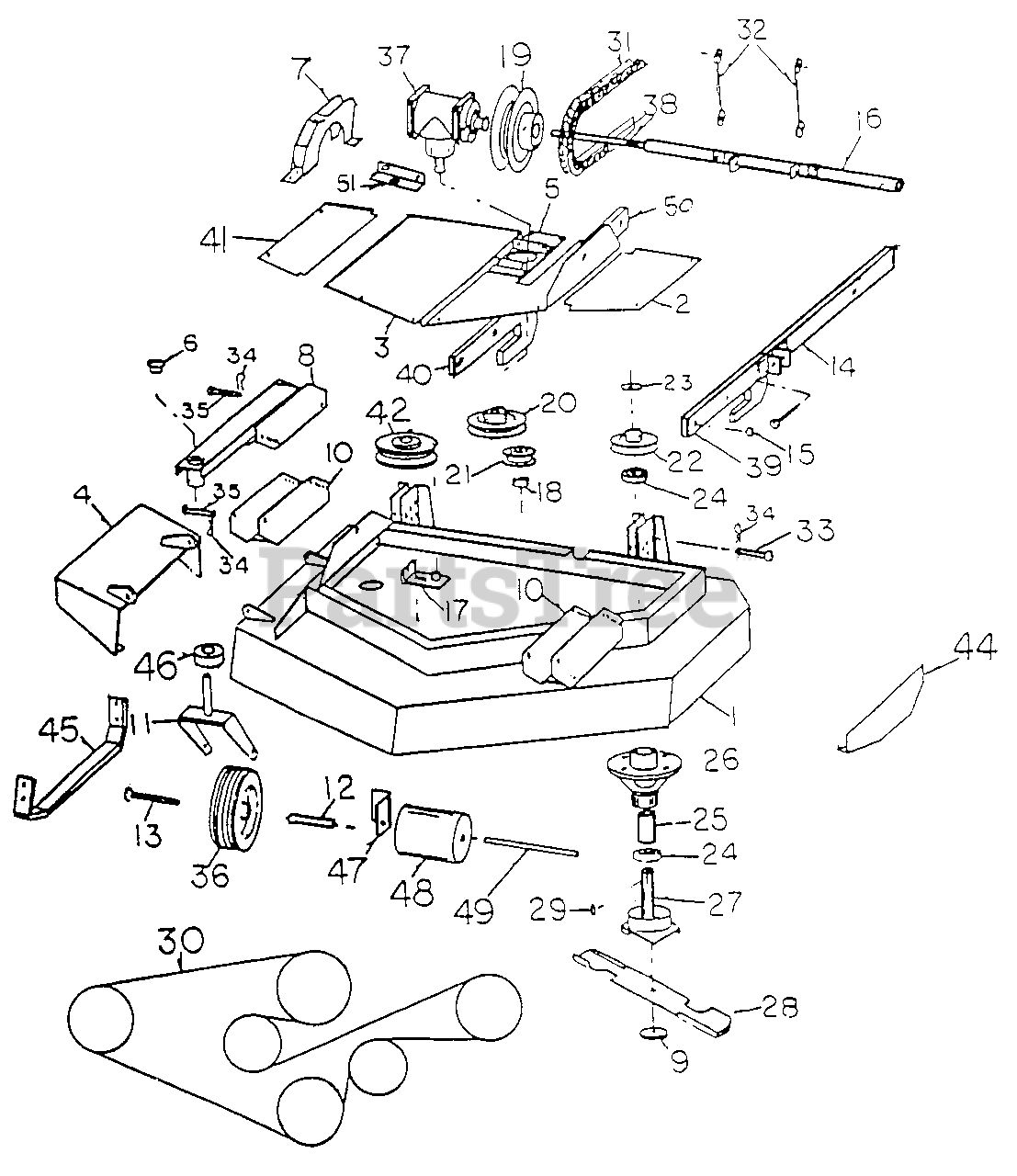

FR-11 (137-001-190) - White Outdoor Front-Mount Riding Mower (1988) > Parts Diagrams (12) > 62" Mower Deck (0062-T)

  • Title
WD-330-0000

1

Mower Deck

Part# WD-330-0000 (Superseded to WD-CS48614)

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0001

2

Cover

Part# WD-330-0001

Note: (Small)

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0002

3

Cover

Part# WD-330-0002

Note: (Large)

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0001

4

Foot Guard

Part# WD-330-0001

OEM Warranty Repair Part for White Outdoor

Not available

WD-331-0004

5

Gear Box Mount

Part# WD-331-0004

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3503

6

Gauge Wheel Bearings

Part# WD-900-3503 (Superseded to 941-3002)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.53

WD-311-0002

7

Belt Guard

Part# WD-311-0002

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0005

8

Gage Wheel Mount

Part# WD-330-0005

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5534

9

Spring Washer

Part# WD-900-5534

OEM Warranty Repair Part for White Outdoor

Not available

WD-320-0006

10

Bracket, Gage Wheel Mount

Part# WD-320-0006

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0007

11

Fork Gage Wheel

Part# WD-330-0007

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0017

12

Axle

Part# WD-200-0017 (Superseded to WD-C37915)

OEM Warranty Repair Part for White Outdoor

Not available

13

Axle Bolt

Part#

Not available

WD-330-0024

14

LHI Deck Lift Arm Back Adjustable

Part# WD-330-0024

Not available

WD-300-0013

15

Bushing, Deck Lift Arm

Part# WD-300-0013 (Superseded to WD-C37586)

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0014

16

Cross Bar

Part# WD-300-0014

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0012

17

Belt Tightener

Part# WD-330-0012

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0016

18

Spacer Idler

Part# WD-330-0016

Not available

WD-900-2525

19

Pulley Gear Box

Part# WD-900-2525 (Superseded to WD-C37892)

Note: (In Put)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2510

20

Pulley Gear Box

Part# WD-900-2510

Note: (Out Put)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2522

21

5" Idler

Part# WD-900-2522 (Superseded to WD-C45655)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2512

22

Pulley Spindle

Part# WD-900-2512

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0017

23

Washer Spindle

Part# WD-300-0017

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3506

24

Bearing, Spindle

Part# WD-900-3506 (Superseded to WD-C42786P)

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0034

25

Spacer Spindle

Part# WD-300-0034

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0031

26

Housing Spindle

Part# WD-300-0031

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0032

27

Shaft Spindle

Part# WD-300-0032 (Superseded to WD-C37947)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $143.36

WD-900-5529

28

Blade

Part# WD-900-5529

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0021

29

Key Spindle

Part# WD-300-0021 (Superseded to 914-0105)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

WD-900-3008B

30

Belt, Deck

Part# WD-900-3008B

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3012

31

Belt, Drive

Part# WD-900-3012

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5518

32

Cable Deck

Part# WD-900-5518

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5519

33

Pin, Deck

Part# WD-900-5519

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5520

34

Hair Pin

Part# WD-900-5520

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5536

35

Pins, Gage Wheel

Part# WD-900-5536

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-4004

36

Gage Wheel

Part# WD-900-4004

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5535

37

Gear Box

Part# WD-900-5535

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0022

38

Cross Bar Pin

Part# WD-300-0022

Not available

WD-300-0023

39

L.H.1 Deck Lift Arm Front Adjustable L.H.

Part# WD-300-0023

Not available

WD-300-0023

40

R.H.1 Deck Lift Arm Front Adjustable R.H.

Part# WD-300-0023

Not available

WD-330-0009

41

Cover, Right Hand Side

Part# WD-330-0009

Not available

WD-900-2521

42

Pulley, Idler Large

Part# WD-900-2521 (Superseded to WD-C37933)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $84.69

WD-330-0008

44

Shoe Left Hand Side

Part# WD-330-0008

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0011

45

Shoe Right Hande Side

Part# WD-330-0011 (Superseded to WD-C37957)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5510

46

Set Collar

Part# WD-900-5510

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0037

47

Rollar Bracket

Part# WD-300-0037

Not available

WD-900-5559

48

Rubber Rollar

Part# WD-900-5559

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0038

49

Rollar Shaft

Part# WD-300-0038

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0024

50

R.H.1 Deck Lift Arm, Back Adjustable

Part# WD-330-0024

Not available

WD-310-0006

51

Gear Box Mount Angle

Part# WD-310-0006

OEM Warranty Repair Part for White Outdoor

Not available
