FR-12 (131-002-190) - White Outdoor Front-Mount Riding Mower (1991) 52" Deck Parts Parts Diagram

Front-Mount Riding Mower

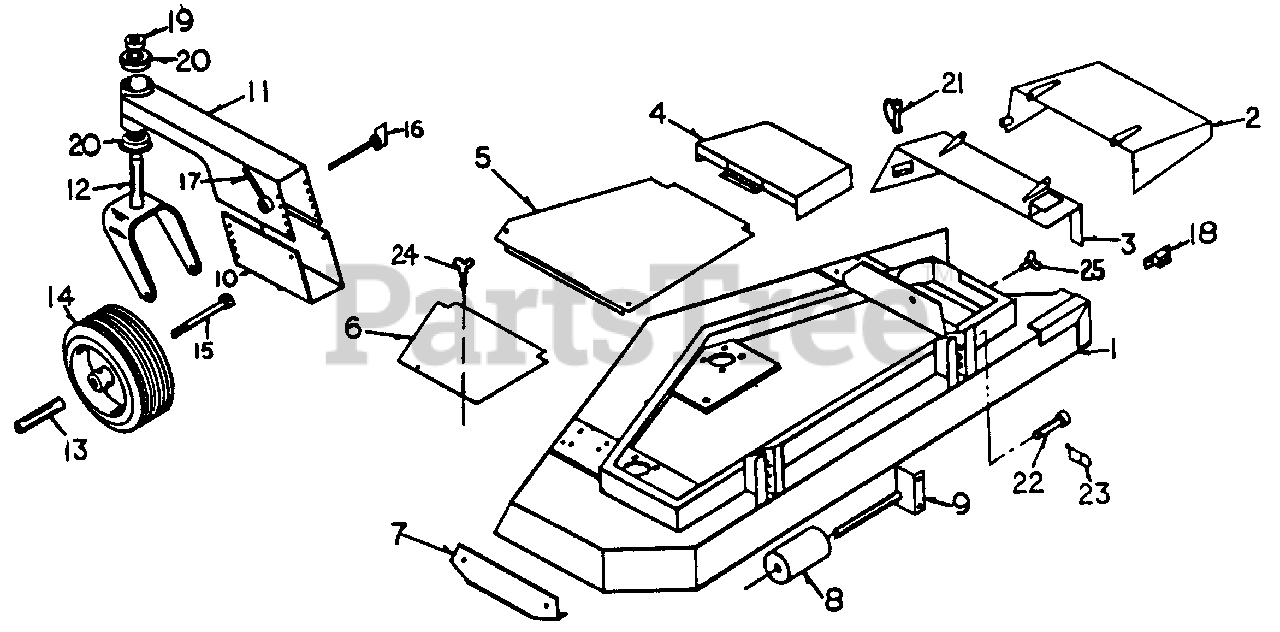

52" Deck Parts Parts Diagram

  • Title

$

$

Not available

$

$

Not available

3

White Outdoor WD-320-0016

Foot Guard Mount

$

$

Not available

4

$

$

Not available

5

$

$

Not available

$

$

Not available

$

$

Not available

8

White Outdoor WD-900-5559

Anti-scalp Roller

$

$

Not available

9

White Outdoor WD-300-0038

Shaft & 8racket

$

$

Not available

10

White Outdoor WD-300-0044

Gauge Wheel Mount Bracket

$

$

Not available

11

White Outdoor WD-300-0043

Gauge Wheel Mount

$

$

Not available

$

$

Not available

13

White Outdoor WD-200-0017

Axle
(Superseded to WD-C37915)

$

$

Not available

14

White Outdoor WD-900-4004

Gauge Wheel Assembly

$

$

Not available

White Outdoor WD-900-4006

Tire, 11 x 4.00

$

$

Not available

$

$

Not available

White Outdoor WD-900-3505

Bearing, Wheel Assembly

$

$

Not available

15

White Outdoor WD-900-6036

Hex Bolt, 1/4-20 x 4 1/2", GRS

$

$

Not available

$

$

Not available

$

$

Not available

18

White Outdoor WD-900-2044

10 Amp Circuit Breaker

$

$

Not available

19

White Outdoor WD-900-5510

Set Collar, 1"

$

$

Not available

20

$

$

Not available

21

$

$

Not available

$

$

Not available

23

White Outdoor WD-900-5520

Hair Pin Cotter

$

$

Not available

24

White Outdoor WD-900-6043

Thumb Screw, 1/4-20 x 1/2"

$

$

Not available

25

White Outdoor WD-900-6020

Wing Screw, 1/2-20 x 1"

$

$

Not available
