FR-12 (136-002-190) - White Outdoor Front-Mount Riding Mower (1986) Grass Bagger Assembly Parts Diagram

Front-Mount Riding Mower

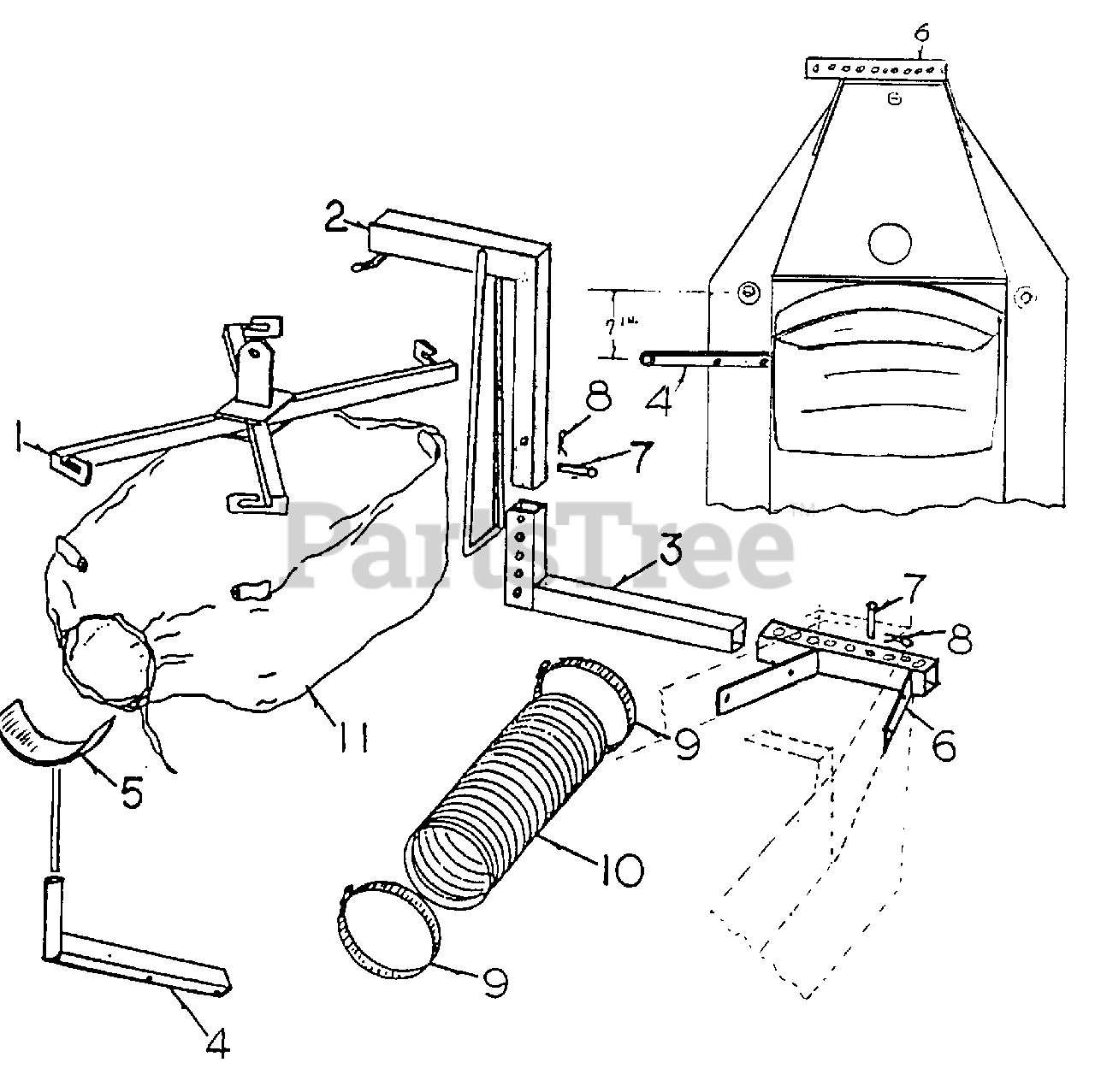

Grass Bagger Assembly Parts Diagram

  • Title
1

WD-410-0000

GRASS BAG HANGER

$

$

Not available

2

WD-410-0001

VERTICAL ARM

$

$

Not available

3

WD-410-0002

HORIZONTAL ARM

$

$

Not available

4

WD-410-0001

HANCER BRACKET

$

$

Not available

5

WD-410-0004

VAC HOSE SADDLE

$

$

Not available

6

WD-410-0005

REAR MOUNTINC BRCKET

$

$

Not available

7

WD-900-5555

PINS

$

$

Not available

$

$

Not available

$

$

Not available

10

WD-900-5551

HOSE

$

$

Not available

11

WD-900-5551

BAG

$

$

Not available

4

WD-900-6050

5/16-18 Nut

$

$

Not available

WD-900-6051

5/16 LOCK WASHER

$

$

Not available

WD-900-6054

5/16-18 x 3/4 BOLT

$

$

Not available

6

WD-900-6050

5/16-18 Nut

$

$

Not available

WD-900-6051

5/16 LOCK WASHER

$

$

Not available

WD-900-6054

5/16-18 x 3/4 BOLT

$

$

Not available
