FR 13 - Jonsered Rear-Engine Riding Mower (2000-02) STEERING Parts Diagram

Rear-Engine Riding Mower

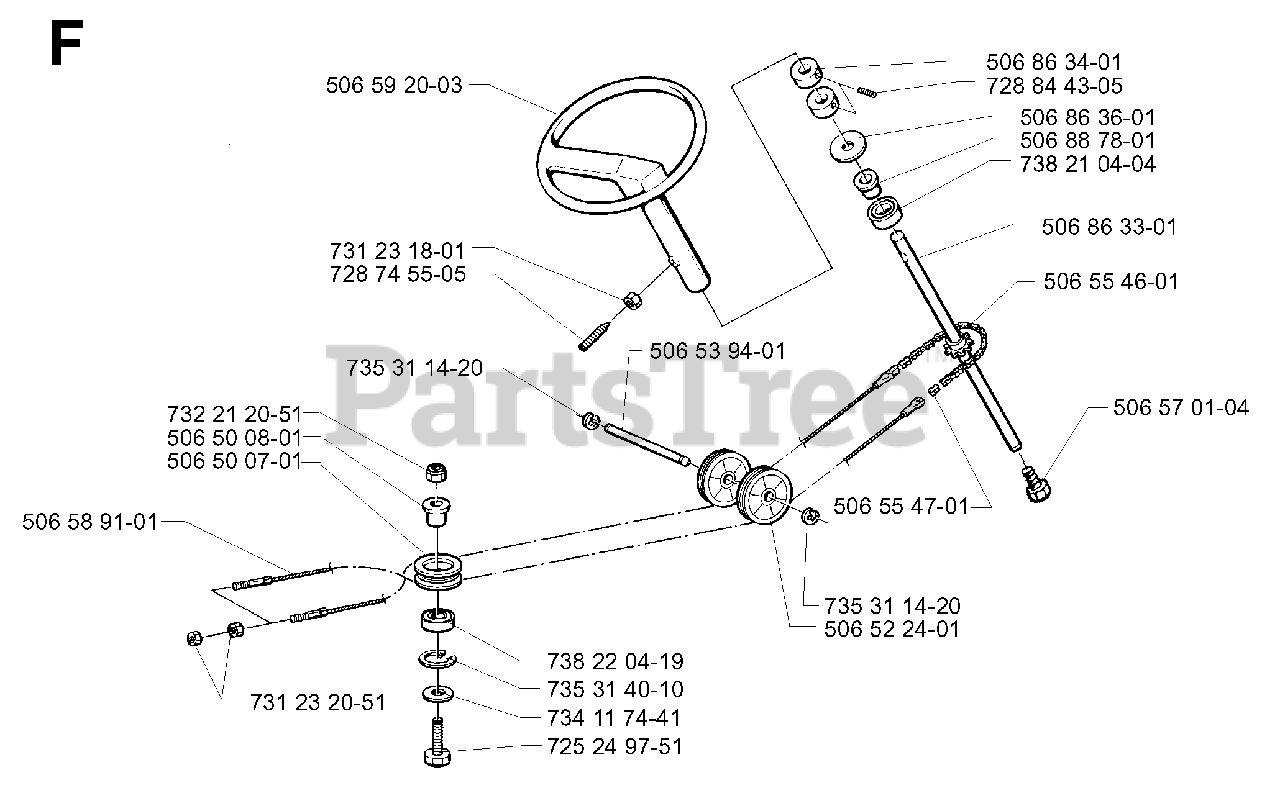

STEERING Parts Diagram

  • Title

5065920-03

Jonsered 506592003

STEERING WHEEL

$

$

Not available

7312318-01

Jonsered 731231801

NUT
(Superseded to 695008078)

$

$

Not available

7287455-05

Jonsered 728745505

SCREW

$5.99

$

Usually ships in 3-10 days

0

7353114-20

Jonsered 735311420

RETAINING RING

$4.99

$

In Stock, Qty 5

0

7322120-51

Jonsered 732212051

NUT

$6.99

$

In Stock, only 4 left!

0

5065008-01

Jonsered 506500801

SPACER

$

$

Not available

5065007-01

Jonsered 506500701

PULLEY

$56.99

$

Usually ships in 3-10 days

0

5065891-01

Jonsered 506589101

RP STEERING WIRE
(Superseded to 577199901)

$31.99

$

In Stock, Qty 20+

0

7312320-51

Jonsered 731232051

NUT

$

$

Not available

7252497-51

Jonsered 725249751

SCREW

$7.99

$

Usually ships in 3-10 days

0

7341174-41

Jonsered 734117441

WASHER

$6.99

$

In Stock, Qty 6

0

7353140-10

Jonsered 735314010

CIRCLIP SGH 47

$7.99

$

In Stock, only 1 left!

0

7382204-19

Jonsered 738220419

BALL-BEARING 6204-2RS

$26.99

$

In Stock, Qty 11

0

5065394-01

Jonsered 506539401

RP PIN
(Superseded to 506539403)

$28.99

$

Usually ships in 3-10 days

0

5065547-01

Jonsered 506554701

LINK

$7.99

$

In Stock, only 2 left!

0

7353114-20

Jonsered 735311420

RETAINING RING

$4.99

$

In Stock, Qty 5

0

5065224-01

Jonsered 506522401

ROLLER

$20.99

$

In Stock, only 3 left!

0

5065701-04

Jonsered 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

5065546-01

Jonsered 506554601

STEERING CHAIN

$31.99

$

In Stock, only 2 left!

0

5068633-01

Jonsered 506863301

SHAFT

$

$

Not available

7382104-04

Jonsered 738210404

BALL BEARING 6004-2RS1

$22.99

$

In Stock, Qty 20+

0

5068878-01

Jonsered 506887801

SPACER

$9.49

$

Usually ships in 3-10 days

0

5068636-01

Jonsered 506863601

WASHER

$9.49

$

Usually ships in 3-10 days

0

7288443-05

Jonsered 728844305

SCREW

$

$

Not available

5068634-01

Jonsered 506863401

SPACER

$

$

Not available
