FR-14 (133-005-190) - White Outdoor Front-Mount Riding Mower (1993)

Front-Mount Riding Mower

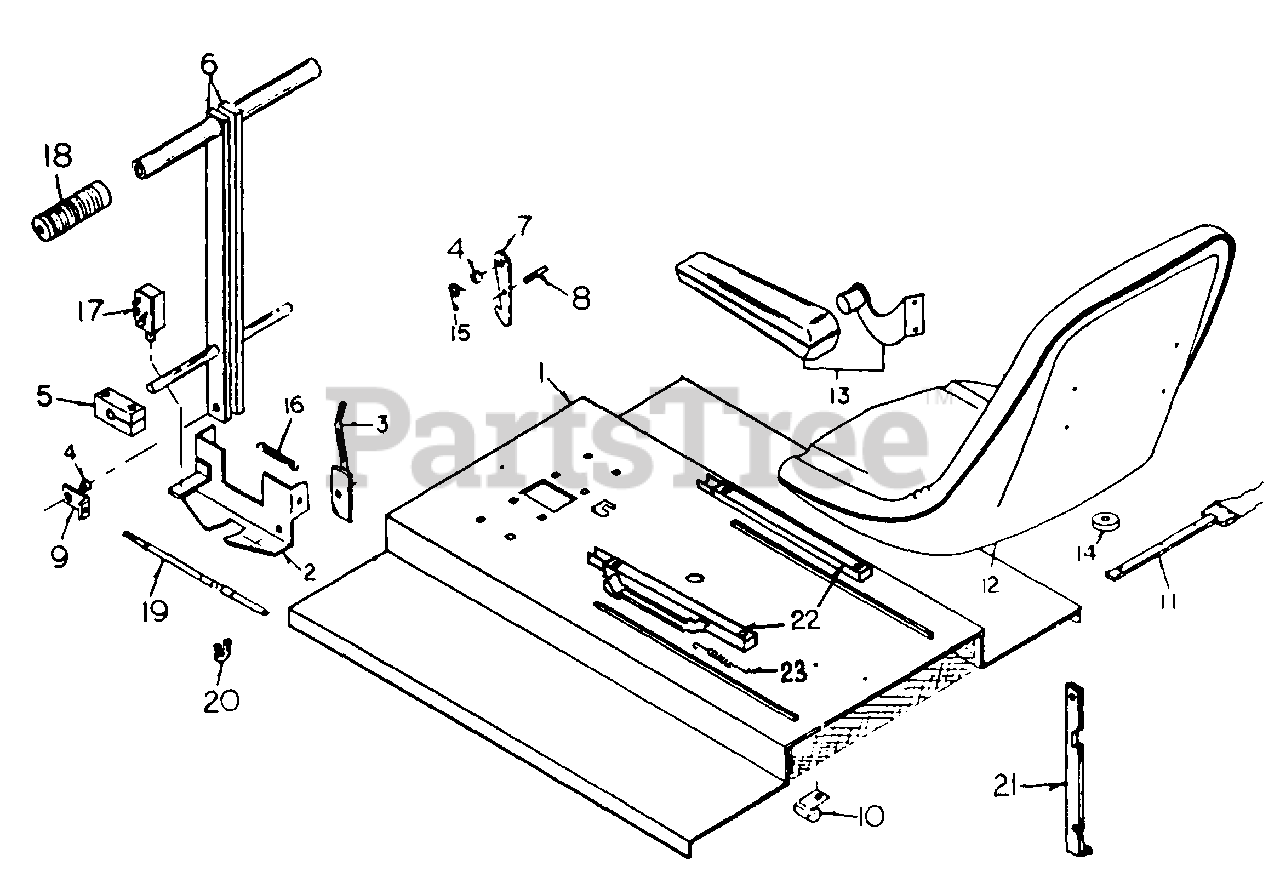

FR-14 (133-005-190) - White Outdoor Front-Mount Riding Mower (1993) > Parts Diagrams (15) > Seat Lid Assembly

  • Title
WD-201-0004

1

Seat Lid

Part# WD-201-0004

OEM Warranty Repair Part for White Outdoor

Not available

WD-201-0010

2

Lever Lock

Part# WD-201-0010

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0012

3

Latch, Lever Lock

Part# WD-200-0012

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0014

4

Bushing

Part# WD-200-0014 (Superseded to WD-C42895)

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0010

5

Bearing Block

Part# WD-200-0010

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0009

6

Steering Lever

Part# WD-200-0009

OEM Warranty Repair Part for White Outdoor

Not available

WD-201-0015

7

Seat Lid Latch

Part# WD-201-0015

OEM Warranty Repair Part for White Outdoor

Not available

WD-201-0014

8

Seat Lid Latch Bolt

Part# WD-201-0014

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0013

9

Steering Cable End

Part# WD-200-0013 (Superseded to WD-C37614)

OEM Warranty Repair Part for White Outdoor

Not available

WD-201-0018

10

Seat Lid Harness Retainer

Part# WD-201-0018

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2001

11

Seat Switch

Part# WD-900-2001

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5597

12

Seat

Part# WD-900-5597

OEM Warranty Repair Part for White Outdoor

Not available

13

Arm Rest Kit

Part#

Note: (Optional)

Not available

WD-900-5523

14

Seat Spacer

Part# WD-900-5523

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5700

15

Seat Lid Latch Spring

Part# WD-900-5700

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5501

16

Lever Lock Spring

Part# WD-900-5501

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2029

17

Safety Switch

Part# WD-900-2029

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5500

18

Handle Grip

Part# WD-900-5500 (Superseded to WD-C37631)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5502

19

Steering Cable

Part# WD-900-5502

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5503

20

Steering Cable Clamp

Part# WD-900-5503 (Superseded to WD-C37616)

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0008

21

Lid Prop

Part# WD-200-0008

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5813

22

Seat Rail Kit (Pair)

Part# WD-900-5813

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5767

23

Seat Spring

Part# WD-900-5767

OEM Warranty Repair Part for White Outdoor

Not available
