FR-16 (135-006-190) - White Outdoor Front-Mount Riding Mower (1995) Parking Brake Parts Diagram

Front-Mount Riding Mower

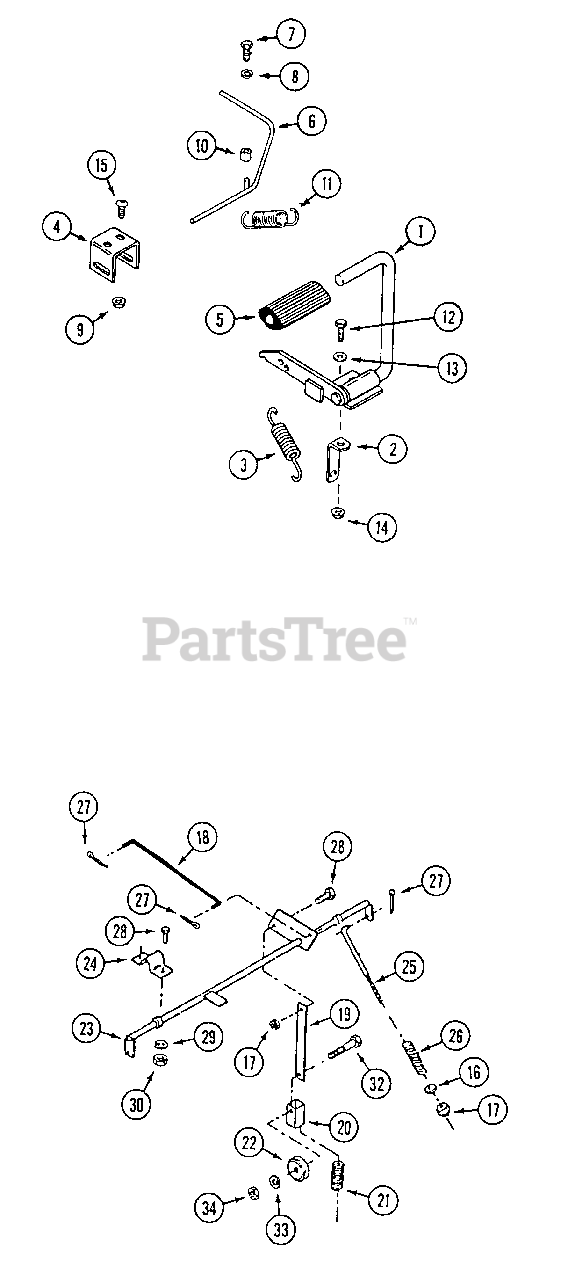

Parking Brake Parts Diagram

  • Title

1

White Outdoor WD-C44420

PEDAL - parking brake

$

$

Not available

2

WD-C44424

TAB - spring mount

$

$

Not available

3

White Outdoor WD-900-5569

SPRING - brake return

$

$

Not available

4

WD-C44425

BRACKET - brack lock

$

$

Not available

5

White Outdoor WD-900-5563

PAD - brake pedal
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 8

0

6

WD-C44969

LEVER - brake lock

$

$

Not available

7

White Outdoor WD-C42056

SCREW - 5/16" - 18 x 5/8" allen head

$

$

Not available

8

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

9

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

10

White Outdoor WD-201-0002

TAB - pivot

$

$

Not available

11

White Outdoor WD-900-5562

SPRING - return, lock lever

$

$

Not available

12

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

13

White Outdoor WD-195-103

WASHER - 5/16"

$

$

Not available

14

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

15

WD-C44981

SCREW - 1/4" - 20 x 1/2" allen head

$

$

Not available

16

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

17

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

18

White Outdoor WD-113-0006

ROD - brake pedal

$

$

Not available

19

White Outdoor WD-113-0012

LINK - idler pulley

$

$

Not available

20

White Outdoor WD-111-0019

TUBE - drive idler

$

$

Not available

21

White Outdoor WD-900-5580

SPRING - idler

$

$

Not available

22

WD-900-2519

PULLEY - idler

$

$

Not available

23

White Outdoor WD-111-0037

ROD - cross, brake and clutch

$

$

Not available

24

White Outdoor WD-111-0004

BEARING - cross rod

$

$

Not available

25

White Outdoor WD-111-0007

ROD - caliper

$

$

Not available

26

White Outdoor WD-900-5722

SPRING - caliper

$

$

Not available

27

White Outdoor WD-132-332

PIN - cotter 3/32" x 1"

$

$

Not available

28

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

29

WD-102-19

LOCKWASHER - 1/4"

$

$

Not available

30

WD-129-101

NUT - 1/4" - 20

$

$

Not available

?31

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

32

UNKNOWN

$

$

Not available

33

UNKNOWN

$

$

Not available

34

UNKNOWN

$

$

Not available
