FR-16 (135-006-190) - White Outdoor Front-Mount Riding Mower (1995) Transmission & Drive Chains Parts Diagram

Front-Mount Riding Mower

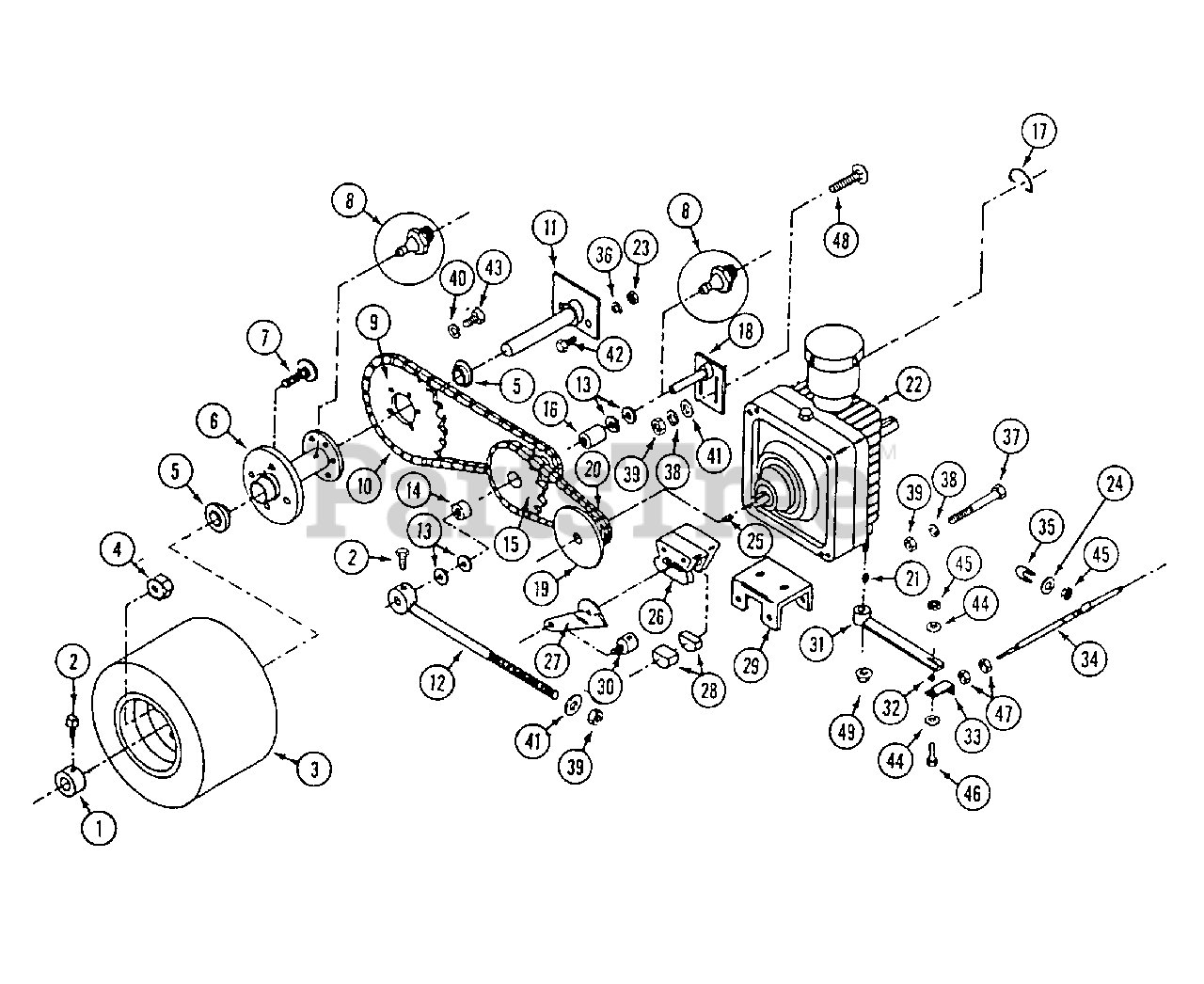

Transmission & Drive Chains Parts Diagram

  • Title

1

White Outdoor WD-900-5510

COLLAR - set 1"

$

$

Not available

2

White Outdoor WD-85-58

SCREW - set 5/16" - 18 x 1/2" square head

$

$

Not available

3

White Outdoor WD-C37988

WHEEL ASSEMBLY - drive

$

$

Not available

White Outdoor WD-C37989

TIRE - 16 x 7.50 - 8

$

$

Not available

White Outdoor WD-C37990

RIM - wheel

$

$

Not available

4

White Outdoor WD-C37657

NUT - lug 1/2" - 20

$

$

Not available

5

White Outdoor WD-900-3501

BEARING - wheel

$

$

Not available

6

White Outdoor WD-900-4033

HUB - wheel (7" long)

$

$

Not available

7

White Outdoor WD-C37661

BOLT - lug 1/2" - 20 x 1-1/4"

$

$

Not available

8

White Outdoor WD-219-20

FITTING - grease 1/4" - 28 self tapping

$

$

Not available

9

White Outdoor WD-901-1502

SPROCKET - final drive

$

$

Not available

10

White Outdoor WD-C44081

CHAIN - final drive (71 pitches)

$

$

Not available

11

White Outdoor WD-120-0001

AXLE - drive wheel (8-3/4" shaft)

$

$

Not available

12

White Outdoor WD-100-0017

COLLAR - support
(Superseded to WD-C37998)

$

$

Not available

13

White Outdoor WD-900-6003

WASHER - 3/4" 10 ga.

$

$

Not available

14

White Outdoor WD-900-3500

BEARING - idler sprocket 1/2"
(Superseded to 741-0665)

$19.99

$

In Stock, only 1 left!

0

15

White Outdoor WD-901-1501A

SPROCKET - idler

Note: (Includes bearings)

$

$

Not available

16

White Outdoor WD-900-3502

BEARING - idler sprocket 3/4"

$

$

Not available

17

White Outdoor WD-900-4510

CLIP - transmission dump valve

$

$

Not available

18

White Outdoor WD-100-0002

SHAFT - idler sprocket
(Superseded to WD-C38005)

$

$

Not available

19

White Outdoor WD-901-1505

SPROCKET - transmission

Note: (Includes brake disc)

$

$

Not available

20

White Outdoor WD-C44083

CHAIN - primary drive

$

$

Not available

21

WD-126-6

KEY - 1/8" x 3/8" Woodruff

$

$

Not available

22

White Outdoor WD-900-4504

TRANSMISSION - L.H. (CW)
(Superseded to WD-C47003P)

Note: (Shown)

$

$

Not available

White Outdoor WD-900-4505

TRANSMISSION - R.H. (CCW)

$

$

Not available

White Outdoor WD-900-4528

KIT - seal
(Superseded to ET-990314-000)

$

$

Not available

White Outdoor WD-900-4529

KIT - reservoir, transmission

$

$

Not available

23

White Outdoor WD-129-105

NUT - 1/2" - 13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

25

WD-126-9

KEY - woodruff 1/8" x 1/2"

$

$

Not available

White Outdoor WD-900-5690

BRAKE ASSEMBLY - L.H.

$

$

Not available

White Outdoor WD-900-5691

BRAKE ASSEMBLY - R.H.

$

$

Not available

26

~NSS

CALIPER - brake

$

$

Not available

27

White Outdoor WD-900-5565

LEVER - caliper L.H.

$

$

Not available

27

WD-900-5566

LEVER - caliper R.H.

$

$

Not available

28

White Outdoor WD-900-5567

PAD - brake (set)

$

$

Not available

29

White Outdoor WD-C38018

BRACKET - caliper

$

$

Not available

30

White Outdoor WD-111-0014

COLLAR - caliper rod

$

$

Not available

31

White Outdoor WD-900-4506

ARM - transmission L.H.

$

$

Not available

31

White Outdoor WD-900-4507

ARM - transmission R.H.

$

$

Not available

32

White Outdoor WD-C42895

BUSHING - cable end

$

$

Not available

33

White Outdoor WD-C42896

END - steering cable

$

$

Not available

34

White Outdoor WD-900-5502

CABLE - steering

$

$

Not available

35

White Outdoor WD-900-5503

CLAMP - steering cable
(Superseded to WD-C37616)

$

$

Not available

36

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

37

WD-113-241

BOLT - 3/8" - 16 x 3"

$

$

Not available

38

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

39

White Outdoor WD-129-103

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

41

White Outdoor WD-195-104

WASHER - 3/8"

$

$

Not available

42

White Outdoor WD-113-410

BOLT - 1/2" - 13 x 1-1/2"

$

$

Not available

43

White Outdoor WD-113-103

BOLT - 5/16" 18 x 1"

$

$

Not available

44

White Outdoor WD-195-520

WASHER - 1/4"

$

$

Not available

45

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

46

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

47

White Outdoor WD-193-1000

NUT - #10 - 32 lock

$

$

Not available

48

WD-111-366

BOLT - carriage 3/8" - 16 x 1-1/4"

$

$

Not available

49

White Outdoor WD-131-1352

NUT - 3/8" - 16 flange lock

$

$

Not available
