FR-18 (136-008-190) - White Outdoor Front-Mount Riding Mower (1996) Base Assembly Parts Diagram

Front-Mount Riding Mower

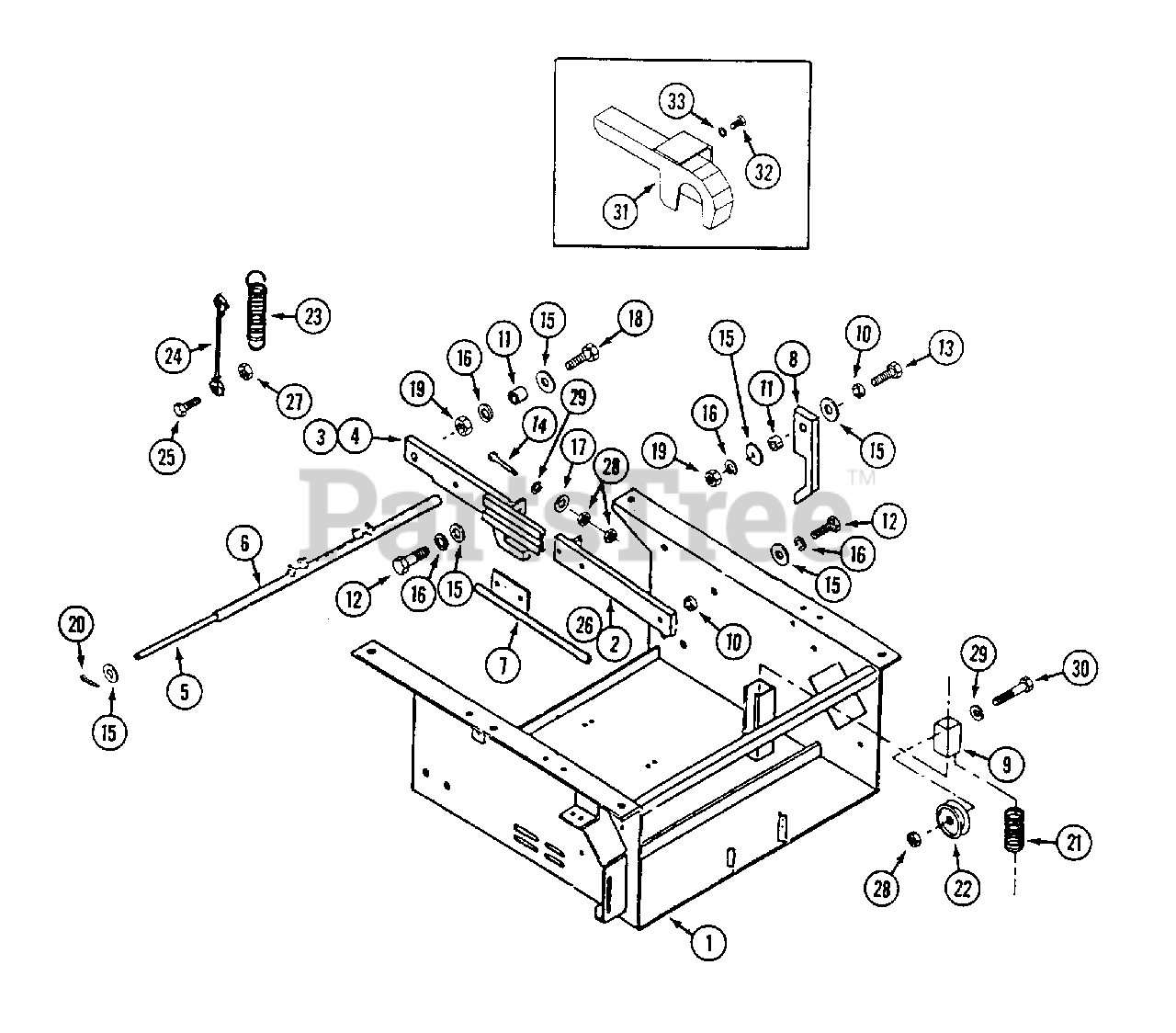

Base Assembly Parts Diagram

  • Title

1

WD-C45924

BASE

$

$

Not available

2

White Outdoor WD-C37575

ARM - deck lift R.H.

$

$

Not available

3

White Outdoor WD-C37574

ARM - front L.H.

$

$

Not available

4

White Outdoor WD-C37573

ARM - front R.H.

$

$

Not available

5

WD-C37578

PIN - cross bar

$

$

Not available

6

White Outdoor WD-C37579

BAR - cross

$

$

Not available

7

White Outdoor WD-C37577

TUBE - wire

$

$

Not available

8

White Outdoor WD-C37583

LOCK - forward nose down

$

$

Not available

9

White Outdoor WD-C37603

TUBE - drive idler

$

$

Not available

10

White Outdoor WD-C37576

BUSHING - deck lift arm (3/8" long)

$

$

Not available

11

White Outdoor WD-C37586

BUSHING - pivot (1/2" long)

$

$

Not available

12

White Outdoor WD-113-417

BOLT - 1/2" - 13 x 1-1/4"

$

$

Not available

13

White Outdoor WD-113-441

BOLT - 1/2" - 13 x 2-1/4"

$

$

Not available

14

White Outdoor WD-113-210

BOLT - 3/8" - 16 x 3"

$

$

Not available

15

White Outdoor WD-195-106

WASHER - 1/2"

$

$

Not available

16

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

17

White Outdoor WD-195-104

WASHER - 3/8"

$

$

Not available

18

White Outdoor WD-113-410

BOLT - 1/2" - 13 x 1-1/2"

$

$

Not available

19

White Outdoor WD-129-105

NUT - 1/2" - 13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

20

WD-132-310

PIN - cotter 1/8" x 1"

$

$

Not available

21

White Outdoor WD-C37595

SPRING - idler tension

$

$

Not available

22

White Outdoor WD-C38864

PULLEY idler

$

$

Not available

23

White Outdoor WD-C37815

SPRING - lift assist

$

$

Not available

24

White Outdoor WD-C37816

CABLE - lift

$

$

Not available

25

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

26

White Outdoor WD-C38594

ARM - deck lift L.H.

$

$

Not available

27

White Outdoor WD-131-71

NUT - lock 1/4" - 20

$

$

Not available

28

White Outdoor WD-129-103

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

30

White Outdoor WD-113-213

BOLT - 3/8" - 16 x 2-1/4"

$

$

Not available

31

White Outdoor WD-C44403

GUARD - belt

$

$

Not available

32

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

33

White Outdoor WD-192-20

WASHER - lock

$

$

Not available
