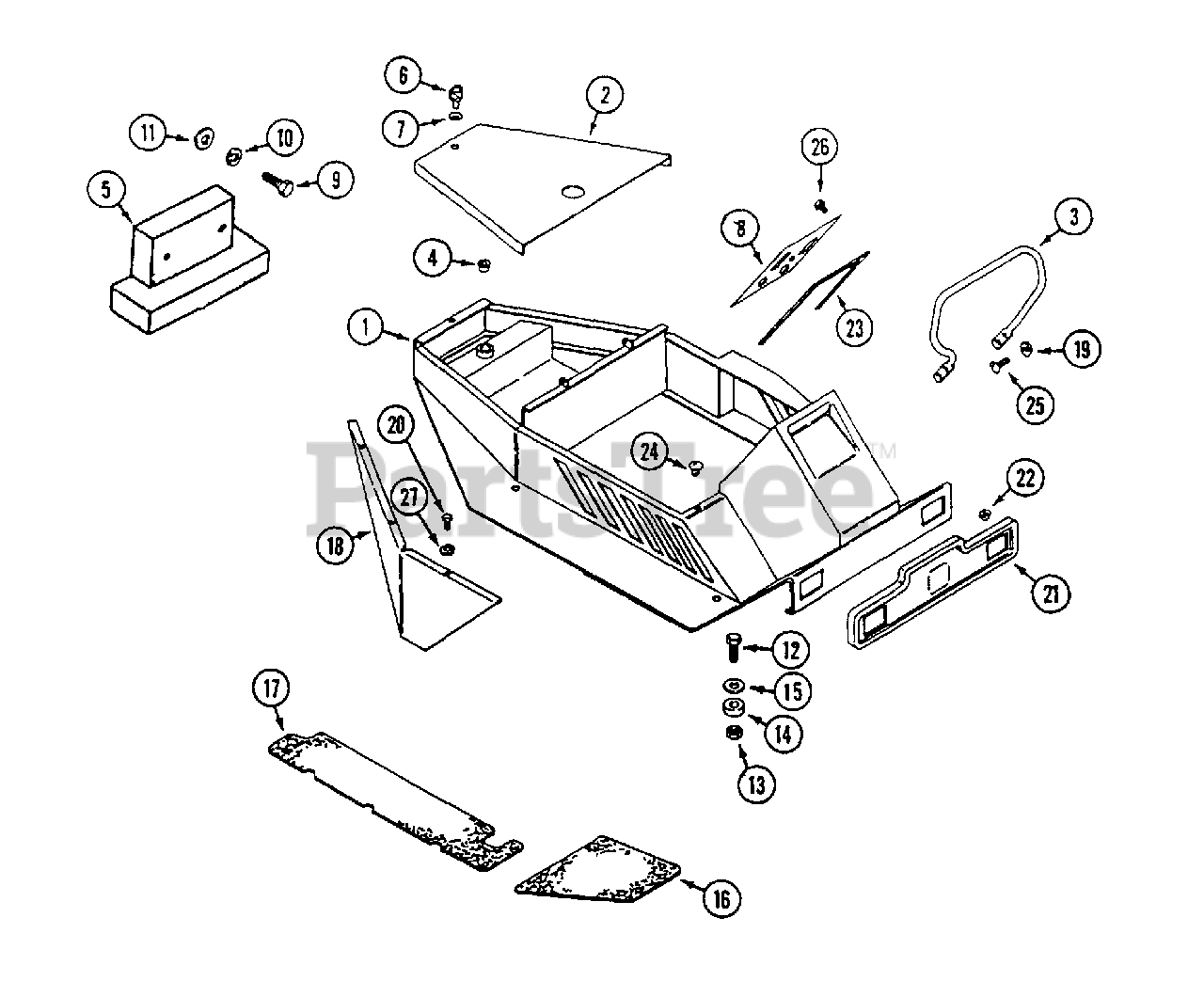

FR-18 (136-008-190) - White Outdoor Front-Mount Riding Mower (1996) Body Parts Diagram

Front-Mount Riding Mower

Body Parts Diagram

  • Title

1

WD-C44954

BODY

$

$

Not available

2

White Outdoor WD-C41163

COVER - back

$

$

Not available

3

White Outdoor WD-C44844

BAR - handle

$

$

Not available

4

White Outdoor WD-C37824

BEARING - rear wheel fork

$

$

Not available

5

White Outdoor WD-C37810

WEIGHT - tail

$

$

Not available

6

White Outdoor WD-C41944

STUD - fastener

$

$

Not available

7

White Outdoor WD-C41945

GROMMET - fastener

$

$

Not available

8

White Outdoor WD-C42053

PANEL - dash

$

$

Not available

9

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

10

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

11

White Outdoor WD-195-103

WASHER - 6/16"

$

$

Not available

12

White Outdoor WD-113-425

BOLT - 1/2" - 13 x 3"
(Superseded to 710-0182A)

$7.49

$

In Stock, only 2 left!

0

13

White Outdoor WD-131-70

NUT - 1/2" lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor WD-C37818

MOUNT - body, rubber

$

$

Not available

15

White Outdoor WD-C37581

WASHER - mount, body

$

$

Not available

16

WD-C39525

PAD - footrest, front L.H.

$

$

Not available

White Outdoor WD-C39526

PAD - footrest, front R.H.

Note: (Shown)

$

$

Not available

17

White Outdoor WD-C44955

PAD - footrest, rear L.H.

$

$

Not available

WD-C44956

PAD - footrest, rear R.H.

$

$

Not available

18

White Outdoor WD-C41167

SKIRT - L.H.

$

$

Not available

White Outdoor WD-C41171

SKIRT - R.H.

$

$

Not available

19

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

20

WD-C34808

BOLT - 1/4" - 20 x 3/4" self-tap

$

$

Not available

White Outdoor WD-C42056

BOLT - 5/16" - 18 x 5/8" black

$

$

Not available

White Outdoor WD-C42057

BOLT - 5/16" - 18 x 1-3/4" black

$

$

Not available

21

White Outdoor WD-C44973

PLATE - face

$

$

Not available

22

White Outdoor WD-131-971

NUT - #8 - 32 flange lock

$

$

Not available

23

WD-C44035

TRIM - 28"

$

$

Not available

24

White Outdoor WD-C41944

BUMPER - nylon

$

$

Not available

25

White Outdoor WD-111-132

BOLT - 5/16" - 18 x 3/4" carriage

$

$

Not available

26

WD-C39403

SCREW - #12 x 1/2"

$

$

Not available

27

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available
