FR-18 (136-008-190) - White Outdoor Front-Mount Riding Mower (1996) Mower Drive (62") Parts Diagram

Front-Mount Riding Mower

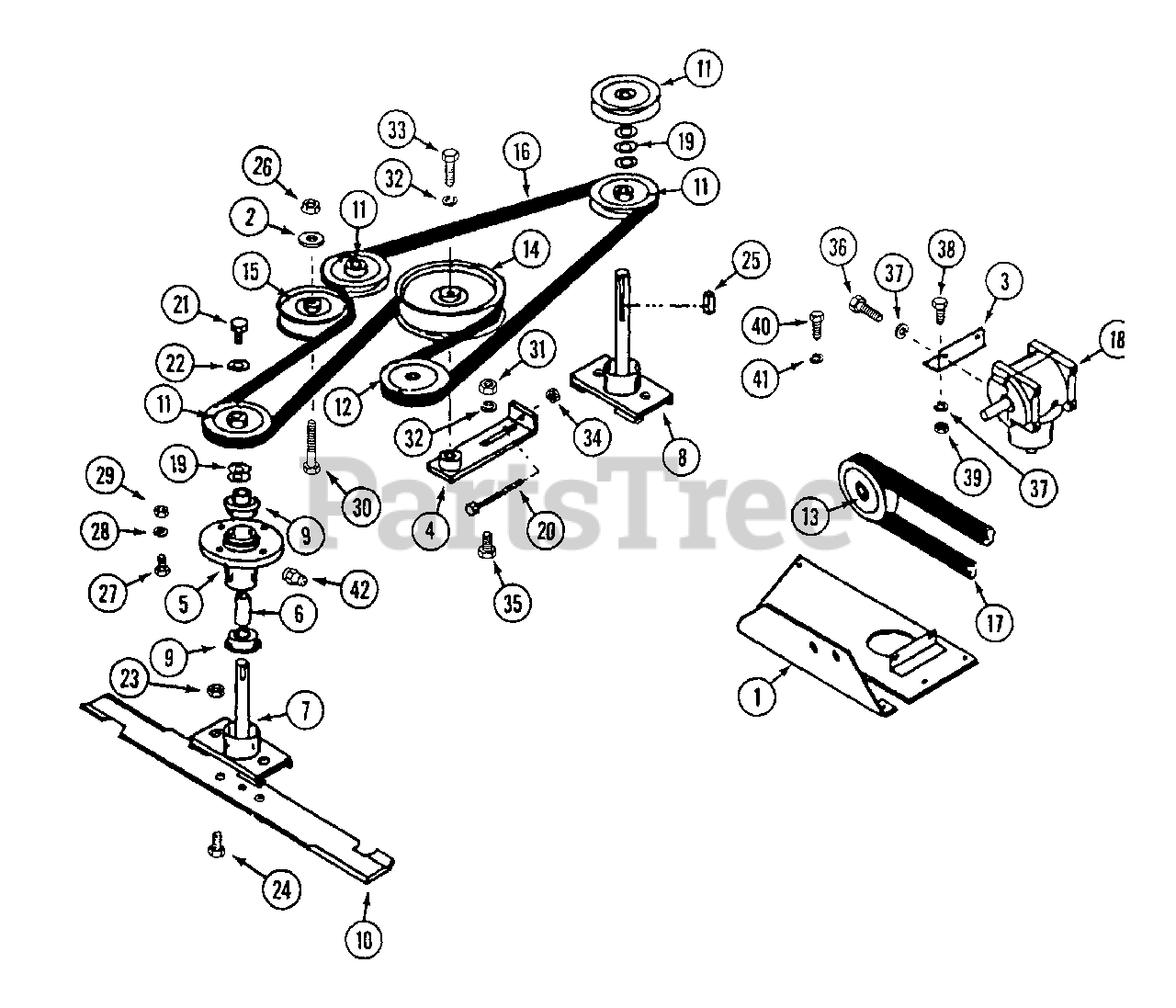

Mower Drive (62") Parts Diagram

  • Title

1

White Outdoor WD-C41757

MOUNT - gear box

$

$

Not available

2

White Outdoor WD-195-103

WASHER - 3/8"

$

$

Not available

3

White Outdoor WD-C37877

ANGLE - gear box mount

$

$

Not available

4

White Outdoor WD-C37929

TIGHTENER - belt

$

$

Not available

5

White Outdoor WD-C45860

HOUSING ASSEMBLY - spindle

Note: (Included 6, 9, 42)

$

$

Not available

5

White Outdoor WD-C37945

HOUSING - spindle

$

$

Not available

6

White Outdoor WD-C45885

SPACER - spindle

$

$

Not available

7

White Outdoor WD-C44132

SHAFT - spindle, short

$

$

Not available

8

White Outdoor WD-C44134

SHAFT - spindle, long

$

$

Not available

9

White Outdoor WD-C45886

BEARING - spindle

$

$

Not available

10

White Outdoor WD-C44138

BLADE - mower

$

$

Not available

11

White Outdoor WD-C37950

PULLEY - spindle

$

$

Not available

12

White Outdoor WD-C37932

PULLEY - gear box output

$

$

Not available

13

White Outdoor WD-C37892

PULLEY - gear box input

$

$

Not available

14

White Outdoor WD-C37933

PULLEY - idler, large

$104.99

$

Usually ships in 3-6 days

0

15

White Outdoor WD-C37934

PULLEY - idler, small

$

$

Not available

16

White Outdoor WD-C38929

BELT - deck

$

$

Not available

17

White Outdoor WD-C37894

BELT - drive

$

$

Not available

18

White Outdoor WD-C37898

GEAR BOX - angle drive

Note: See "Gearbox" Illustration & Parts List

$

$

Not available

19

White Outdoor WD-C37888

SPACER - washer

$

$

Not available

20

White Outdoor WD-C37901

BOLT - 1/4" - 20 x 4"

$

$

Not available

21

White Outdoor WD-114-201

BOLT - 3/8" - 24 x 1-1/4"

$

$

Not available

22

White Outdoor WD-C45846

WASHER - 3/8" - 10 ga.

$

$

Not available

23

WD-131-1261

NUT - lock 3/8" - 16

$

$

Not available

24

White Outdoor WD-113-268

BOLT - 3/8" - 16 x 1"

$

$

Not available

25

White Outdoor WD-C29581

KEY - 3/16" x 1"

$

$

Not available

26

White Outdoor WD-131-1352

NUT - 3/8" flange lock

$

$

Not available

27

White Outdoor WD-113-312

BOLT - 7/16" - 14 x 1-1/4"

$

$

Not available

28

WD-192-22

LOCKWASHER - 7/16"

$

$

Not available

29

WD-129-104

NUT - 7/16" - 14

$

$

Not available

30

White Outdoor WD-113-213

BOLT - 3/8" - 16 x 2-1/4"

$

$

Not available

31

White Outdoor WD-129-103

NUT - 3/8"
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

33

White Outdoor WD-113-208

BOLT - 3/8" - 16 x 1-1/4"

$

$

Not available

34

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

35

WD-111-371

BOLT - 3/8" - 16 x 1" carriage

$

$

Not available

36

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

37

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

38

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

39

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

40

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

41

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

42

White Outdoor WD-219-20

FITTING - grease 1/4" - 28

$

$

Not available
