FR-18 C (137-004-190) - White Outdoor Front-Mount Riding Mower (1988) Base Assembly Parts Diagram

Front-Mount Riding Mower

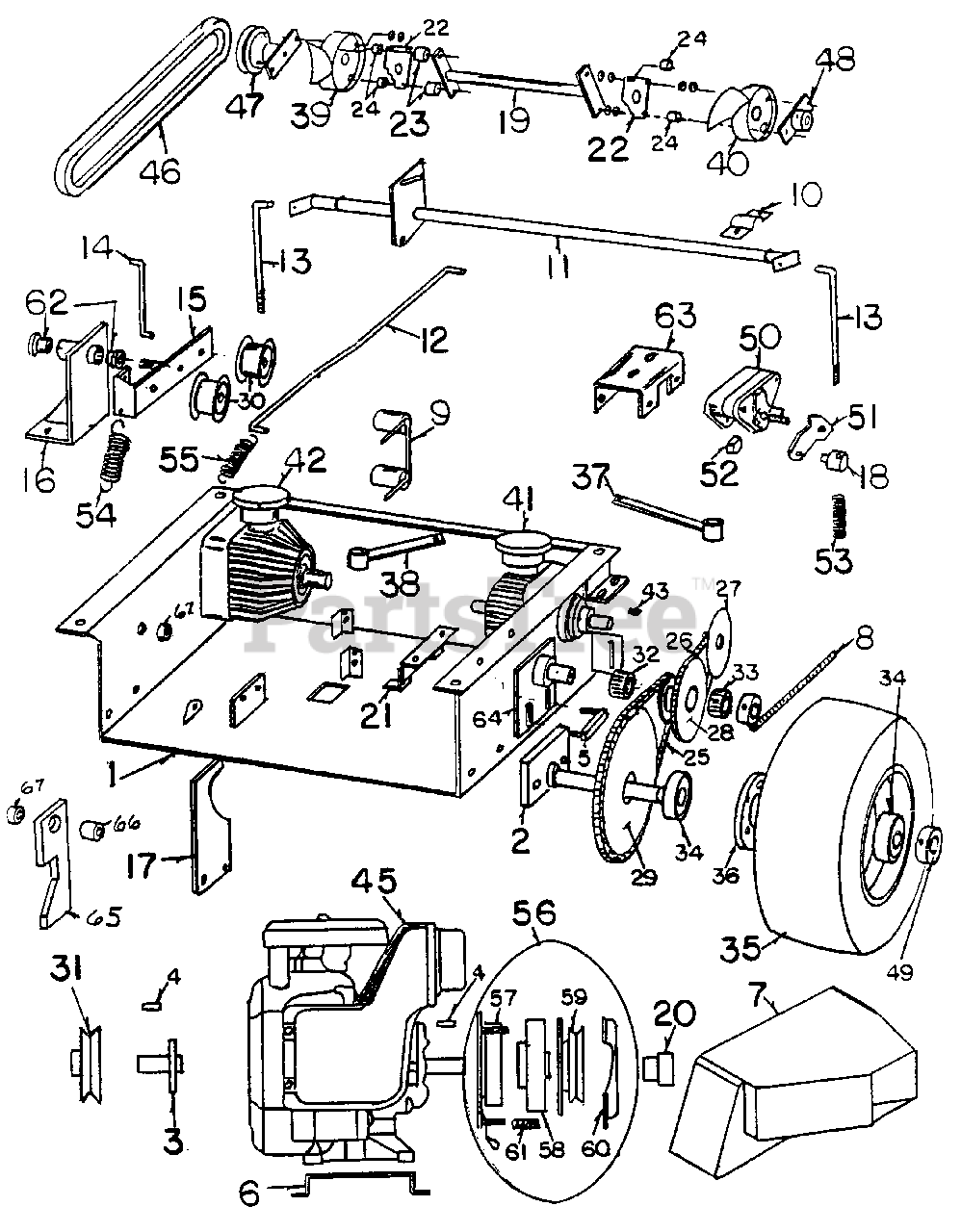

Base Assembly Parts Diagram

  • Title

1

WD-111-0000

Base

$

$

Not available

2

White Outdoor WD-100-0001

Axle, Drive Wheel

Note: (FR11, FR18)

$

$

Not available

White Outdoor WD-120-0001

Axle, Drive Wheel

Note: (FR18C)

$

$

Not available

3

White Outdoor WD-100-0013

Engine Shaft

$

$

Not available

4

White Outdoor WD-100-0014

Key Stock
(Superseded to 714-0128)

$4.49

$

In Stock, Qty 6

0

5

White Outdoor WD-100-0016

Bolt Bar

$

$

Not available

6

White Outdoor WD-101-0001

11 H.P. Adapter Plate

$

$

Not available

7

WD-101-0002

Air Duct

Note: (FR11)

$

$

Not available

White Outdoor WD-111-0001

Air Duct

Note: (FR18 FR18C)

$

$

Not available

8

White Outdoor WD-100-0017

L.H. 1 R.H. Support Collars
(Superseded to WD-C37998)

$

$

Not available

9

White Outdoor WD-111-0003

Belt Retainer

$

$

Not available

10

White Outdoor WD-111-0004

Bearing, Clutch & Brake Cross Rod

$

$

Not available

11

White Outdoor WD-111-0005

Clutch & Brake Cross Rod

$

$

Not available

12

White Outdoor WD-111-0006

Brake Pedal Rod

$

$

Not available

13

White Outdoor WD-111-0007

Caliper Rod

$

$

Not available

14

White Outdoor WD-111-0008

Clutch Rod

$

$

Not available

15

WD-111-0009

Clutch Pulley Mount

$

$

Not available

16

White Outdoor WD-111-0010

Clutch Bracket

$

$

Not available

17

White Outdoor WD-111-0012

Belt Retainer, Engine

$

$

Not available

18

White Outdoor WD-111-0014

Caliper Rod Collar

$

$

Not available

19

White Outdoor WD-111-0018

Cross Shaft

$

$

Not available

20

White Outdoor WD-111-0020

Electric Clutch Retainer

Note: (FR11)

$

$

Not available

White Outdoor WD-900-5575

Electric Clutch Retainer

Note: (FR18 FR18C)

$

$

Not available

21

WD-111-0024

Electric Clutch Stop

Note: (FR11 Only)

$

$

Not available

22

White Outdoor WD-111-0021

Drive Plate
(Superseded to WD-C37700)

$

$

Not available

23

White Outdoor WD-111-0022

Spacer

$

$

Not available

24

White Outdoor WD-111-0025

Bolt Spacer

$

$

Not available

25

White Outdoor WD-900-1000

Chain, Final Drive

Note: (FR11 FR18)

$

$

Not available

White Outdoor WD-900-1003

Chain, Final Drive

Note: (FR18C)

$

$

Not available

26

White Outdoor WD-900-1001

Chain, Primary Drive

Note: (FR11 FR18)

$

$

Not available

White Outdoor WD-900-1005

Chain, Primary Drive

Note: (FR18)

$

$

Not available

27

White Outdoor WD-901-1505

Sprocket Transmission & Disc Brake

$

$

Not available

28

White Outdoor WD-901-1501

Sprocket, Primary Drive

Note: (FR11 FR18)

$

$

Not available

White Outdoor WD-901-1504

Sprocket, Primary Drive
(Superseded to WD-C38539)

Note: (FR18C)

$

$

Not available

29

White Outdoor WD-901-1502

Sprocket, Final Drive

Note: (FR11 FR18)

$

$

Not available

White Outdoor WD-901-1503

Sprocket, Final Drive

Note: (FR18C)

$

$

Not available

30

White Outdoor WD-900-2501

Idler Pulley
(Superseded to WD-C38864)

$

$

Not available

31

White Outdoor WD-900-2503

Pulley, Engine

$

$

Not available

32

White Outdoor WD-900-3500

Short Bearing, Idler Sprocket
(Superseded to 741-0665)

$19.99

$

In Stock, only 2 left!

0

33

White Outdoor WD-900-3502

Long Bearing, Idler Sprocket

Note: (2 ea. FR 11 FR18)

$

$

Not available

34

White Outdoor WD-900-3501

Bearing, Drive Wheel

$

$

Not available

35

White Outdoor WD-900-4012

Drive Wheel Assembly

Note: (FR18)

$

$

Not available

White Outdoor WD-900-4013

Drive Wheel Assembly

Note: (FR18C)

$

$

Not available

WD-900-4011

Drive Wheel Assembly

Note: (FR11)

$

$

Not available

36

White Outdoor WD-900-4009

Wheel Hub

Note: (FR11 FR18)

$

$

Not available

White Outdoor WD-900-4010

Wheel Hub

Note: (FR18C)

$

$

Not available

37

WD-901-4506

Arm, Transmission R.H.

$

$

Not available

38

WD-901-4507

Arm, Transmission L.H.

$

$

Not available

39

White Outdoor WD-900-4519

C.W. Fan R.H. Side

$

$

Not available

40

White Outdoor WD-900-4520

C.C.W. Fan L.H. Side

$

$

Not available

41

White Outdoor WD-900-4504

Transmission L.H. C.W.
(Superseded to WD-C47003P)

$

$

Not available

42

White Outdoor WD-900-4505

Transmission R.H. C.C.W.

$

$

Not available

43

White Outdoor WD-900-4508

Transmission Key
(Superseded to 914-0112)

$

$

Not available

WD-111-0026

Electric Clutch Stop

Note: (FR18 FR18C)

$

$

Not available

45

WD-900-5002

Briggs & Stratton 18 H.P.

$

$

Not available

WD-900-5000

Briggs & Stratton 11 H.P.

$

$

Not available

46

White Outdoor WD-900-3011

Belt, Transmission

$

$

Not available

47

White Outdoor WD-900-4521

Pulley, Transmission with Drive Plate Bar

$

$

Not available

48

White Outdoor WD-900-4522

Hub, Transmission with Drive Plate Bar

$

$

Not available

49

White Outdoor WD-900-5510

Set Collar, Drive Wheel

$

$

Not available

50

WD-900-5564

Brake Caliper

$

$

Not available

51

White Outdoor WD-900-5565

L.H. 900-5566 R.H. 1 ea. Caliper Lever

$

$

Not available

52

White Outdoor WD-900-5567

Brake Pad

$

$

Not available

53

White Outdoor WD-900-5568

Caliper Spring

$

$

Not available

54

White Outdoor WD-900-5569

Clutch Spring

$

$

Not available

55

White Outdoor WD-900-5570

Brake Pedal Spring

$

$

Not available

56

White Outdoor WD-900-5581

Electric Clutch

$

$

Not available

57

White Outdoor WD-900-5585

Electric Clutch Coil
(Superseded to 759-3541)

$

$

Not available

58

White Outdoor WD-900-5584

Electric Clutch Coil Housing
(Superseded to WD-C37551)

$

$

Not available

59

White Outdoor WD-900-5583

Clutch Armature

$

$

Not available

60

White Outdoor WD-900-5582

Clutch Brake

$

$

Not available

61

White Outdoor WD-900-5586

Clutch Spring

$

$

Not available

62

White Outdoor WD-900-3507

Bushing

$

$

Not available

63

White Outdoor WD-900-5588

Caliper Bracket

$

$

Not available

64

White Outdoor WD-100-0002

Shaft Idler Sprocket
(Superseded to WD-C38005)

$

$

Not available

65

White Outdoor WD-111-0023

Forward Nose Down Lock

$

$

Not available

66

White Outdoor WD-300-0013

Bushing Long
(Superseded to WD-C37586)

$

$

Not available

67

White Outdoor WD-300-0013S

Bushing Short
(Superseded to WD-C37576)

$

$

Not available
