FR-180 (134-013-190) - White Outdoor Front-Mount Riding Mower (1994) 62" Mower Drive Parts Diagram

Front-Mount Riding Mower

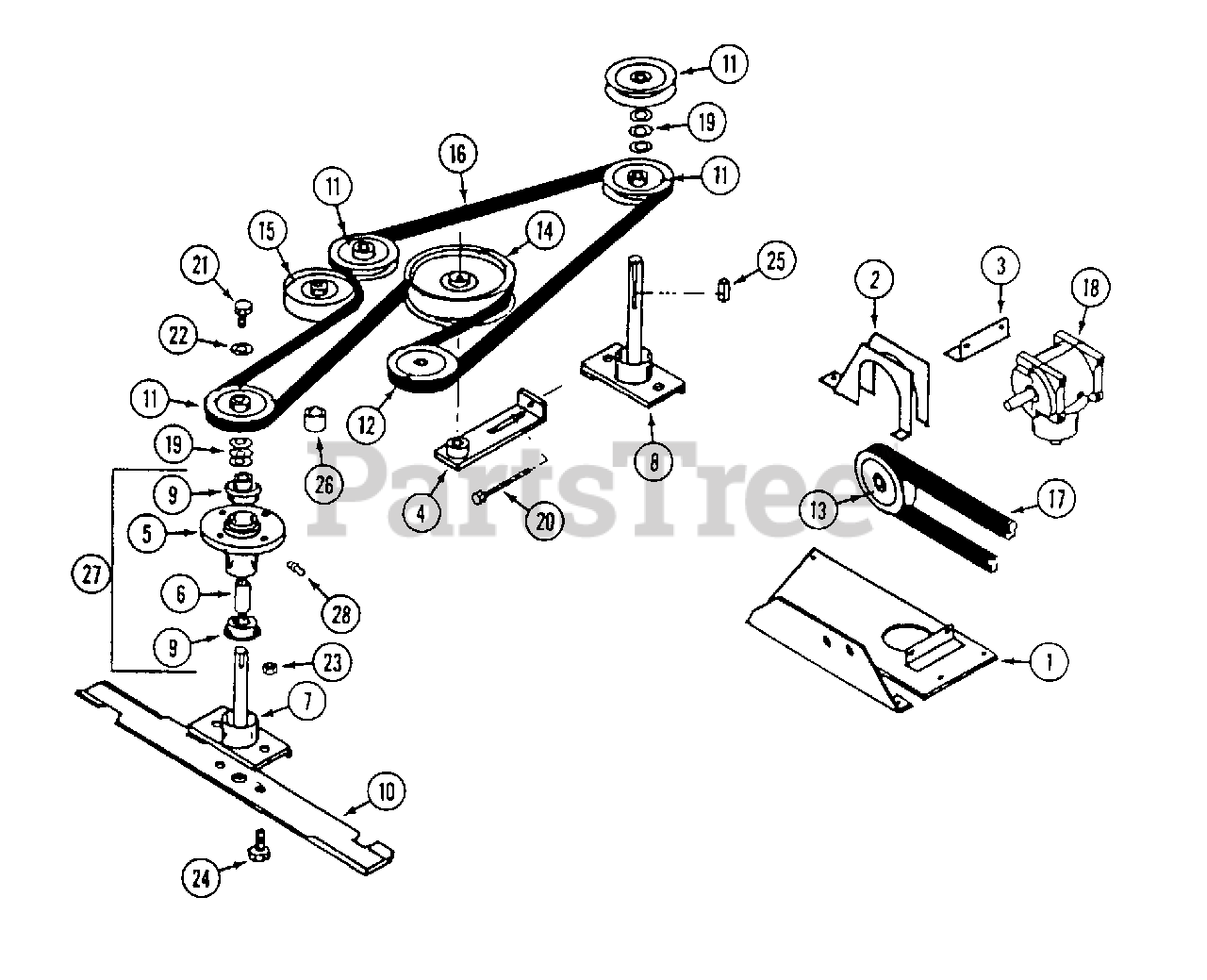

62" Mower Drive Parts Diagram

  • Title

1

White Outdoor WD-331-0004

MOUNT - gear box

$

$

Not available

2

White Outdoor WD-311-0002

GUARD - belt

Note: (Early production)

$

$

Not available

3

WD-310 0006

ANGLE - gear box mount

$

$

Not available

4

White Outdoor WD-330-0012

TIGHTENER - belt

$

$

Not available

5

White Outdoor WD-300-0031

HOUSING - spindle

$

$

Not available

6

White Outdoor WD-300-0034

SPACER - spindle

$

$

Not available

White Outdoor WD-C45885

SPACER - spindle

$

$

Not available

7

White Outdoor WD-C44132

SHAFT - spindle, short

$

$

Not available

8

White Outdoor WD-C44134

SHAFT - spindle, long

$

$

Not available

9

~NSS

BEARING - spindle

Note: (Use C45886 (2) and C45885)

$

$

Not available

White Outdoor WD-C45886

BEARING - spindle 7/8"

$

$

Not available

10

White Outdoor WD-C44138

BLADE

$

$

Not available

11

White Outdoor WD-900-2512

PULLEY - spindle

$

$

Not available

12

White Outdoor WD-900-2510

PULLEY - gear box output

$

$

Not available

13

White Outdoor WD-900-2525

PULLEY - gear box input
(Superseded to WD-C37892)

$

$

Not available

14

White Outdoor WD-900-2521

PULLEY - idler, large
(Superseded to WD-C37933)

$104.99

$

Usually ships in 3-6 days

0

15

White Outdoor WD-900-2522

PULLEY - idler, small
(Superseded to WD-C45655)

$

$

Not available

16

White Outdoor WD-900-3008B

BELT - deck

$

$

Not available

17

White Outdoor WD-C44241

BELT - drive

$

$

Not available

18

White Outdoor WD-900-5842

GEAR BOX - angle drive

Note: (For service). (Curtis model)

$

$

Not available

White Outdoor WD-C42775

GEAR BOX - angle drive

Note: (For service). (Superior model)

$

$

Not available

19

White Outdoor WD-900-6002

WASHER - spacer

$

$

Not available

20

White Outdoor WD-900-6034

BOLT - 1/4" - 20 x 4"

$

$

Not available

21

White Outdoor WD-114-201

BOLT - 3/8" - 24 x 1-1/4"

$

$

Not available

22

White Outdoor WD-C45846

WASHER - spindle

$

$

Not available

23

White Outdoor WD-131-1216

NUT - 3/8" - 16 lock

$

$

Not available

24

White Outdoor WD-113-268

BOLT - 3/8" - 16 x 1"

$

$

Not available

25

White Outdoor WD-300-0021

KEY - 3/16" x 3/16" x 1"
(Superseded to 914-0105)

$3.49

$

Usually ships in 3-6 days

0

26

White Outdoor WD-300-0016

SPACER - idler pulley
(Superseded to WD-C37937)

$

$

Not available

27

White Outdoor WD-C45860

HOUSING ASSEMBLY - spindle

Note: (Includes ref. 5, 6, 9)

$

$

Not available

28

White Outdoor WD-219-20

FITTING - grease 1/4" - 28

$

$

Not available
