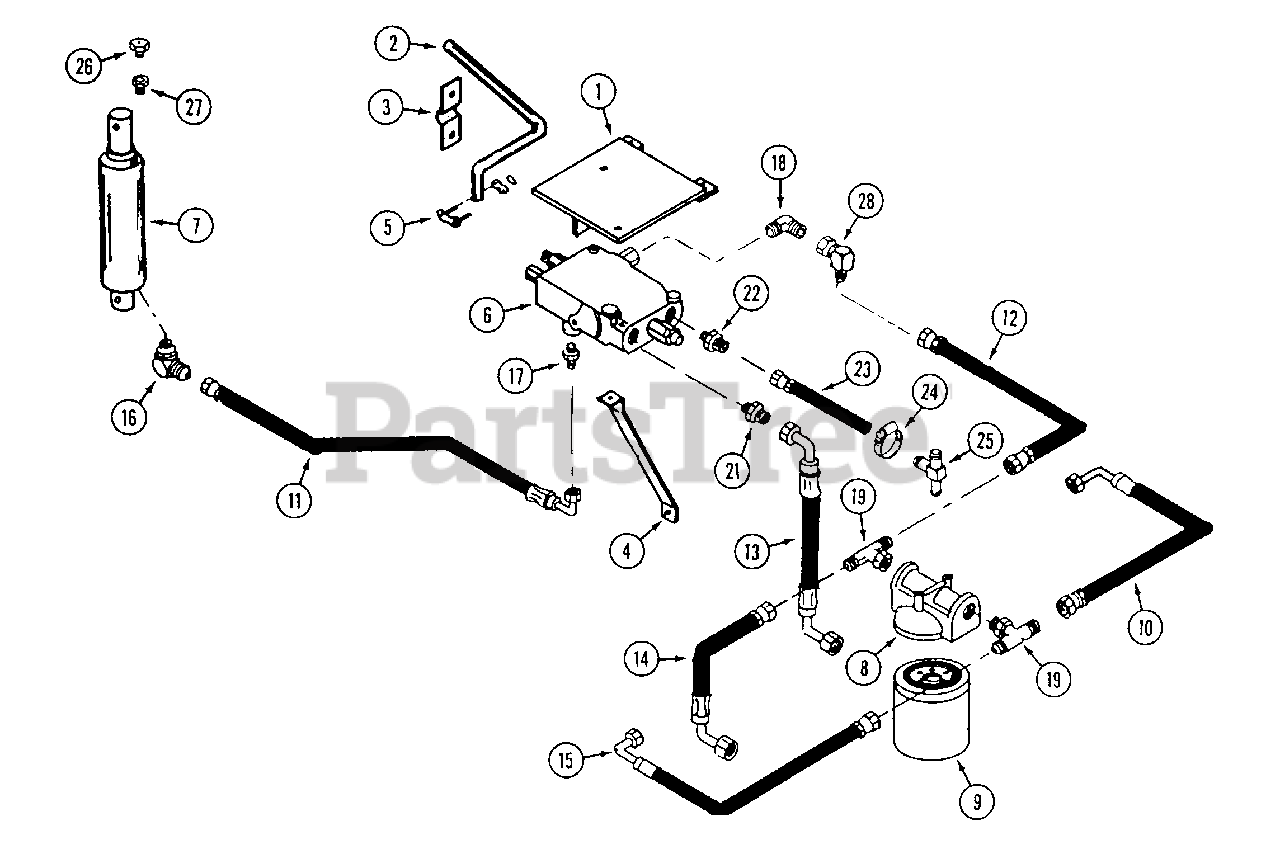

FR-180 (134-013-190) - White Outdoor Front-Mount Riding Mower (1994) Hydraulic Lift Assembly (W/Single Acting Lift Cylinder) Parts Diagram

Front-Mount Riding Mower

Hydraulic Lift Assembly (W/Single Acting Lift Cylinder) Parts Diagram

  • Title
1

WD-212-0002

MOUNT - valve

$

$

Not available

2

WD-272-0003

LEVER - actuator

$

$

Not available

$

$

Not available

4

WD-232-0005

SUPPORT - valve

$

$

Not available

5

White Outdoor WD-900-1004

CONNECTING LINK - #50

$

$

Not available

6

WD-C42937

VALVE - lift

$

$

Not available

7

WD-C44030

CYLINDER - lift

$

$

Not available

8

White Outdoor WD-900-8072

HOUSING - oil filter
(Superseded to WD-C37636)

$

$

Not available

9

White Outdoor WD-900-8073

ELEMENT - oil filter
(Superseded to WD-C37637)

$61.99

$

Usually ships in 3-6 days

0

10

White Outdoor WD-900-8103

HOSE - 3/8" ID x 26" long
(Superseded to WD-C37794)

$

$

Not available

11

White Outdoor WD-900-8106

HOSE - 3/8" ID x 31" long

$

$

Not available

12

White Outdoor WD-900-8101

HOSE - 3/8" ID x 20" long

$

$

Not available

13

WD-900-8302

HOSE - 3/8" ID x 13" long

$

$

Not available

14

WD-900-8105

HOSE - 3/8" ID x 13.5" long

$

$

Not available

15

WD-900-8104

HOSE - 3/8" ID x 21" long

$

$

Not available

16

White Outdoor WD-900-8116

FITTING - 90° male tube adp.

$

$

Not available

17

White Outdoor WD-900-8094

FITTING - straight

$

$

Not available

18

WD-218-5128

FITTING - tee

$

$

Not available

19

$

$

Not available

?20

WD-218-5105

FITTING - straight

$

$

Not available

21

WD-218-5058

FITTING - straight

$

$

Not available

22

WD-218-5059

FITTING - straight

$

$

Not available

23

WD-C44636

HOSE - 1/2"

$

$

Not available

24

WD-900-5629

CLAMP - hose

$

$

Not available

25

WD-C44193

FITTING - tee

$

$

Not available

26

WD-C42935

BREATHER

$

$

Not available

27

WD-C42936

FITTING - adaptor

Note: (If required)

$

$

Not available

28

White Outdoor WD-900-8121

FITTING - 90°

$

$

Not available
