FR-180 C (135-018-190) - White Outdoor Front-Mount Riding Mower (1995)

Front-Mount Riding Mower

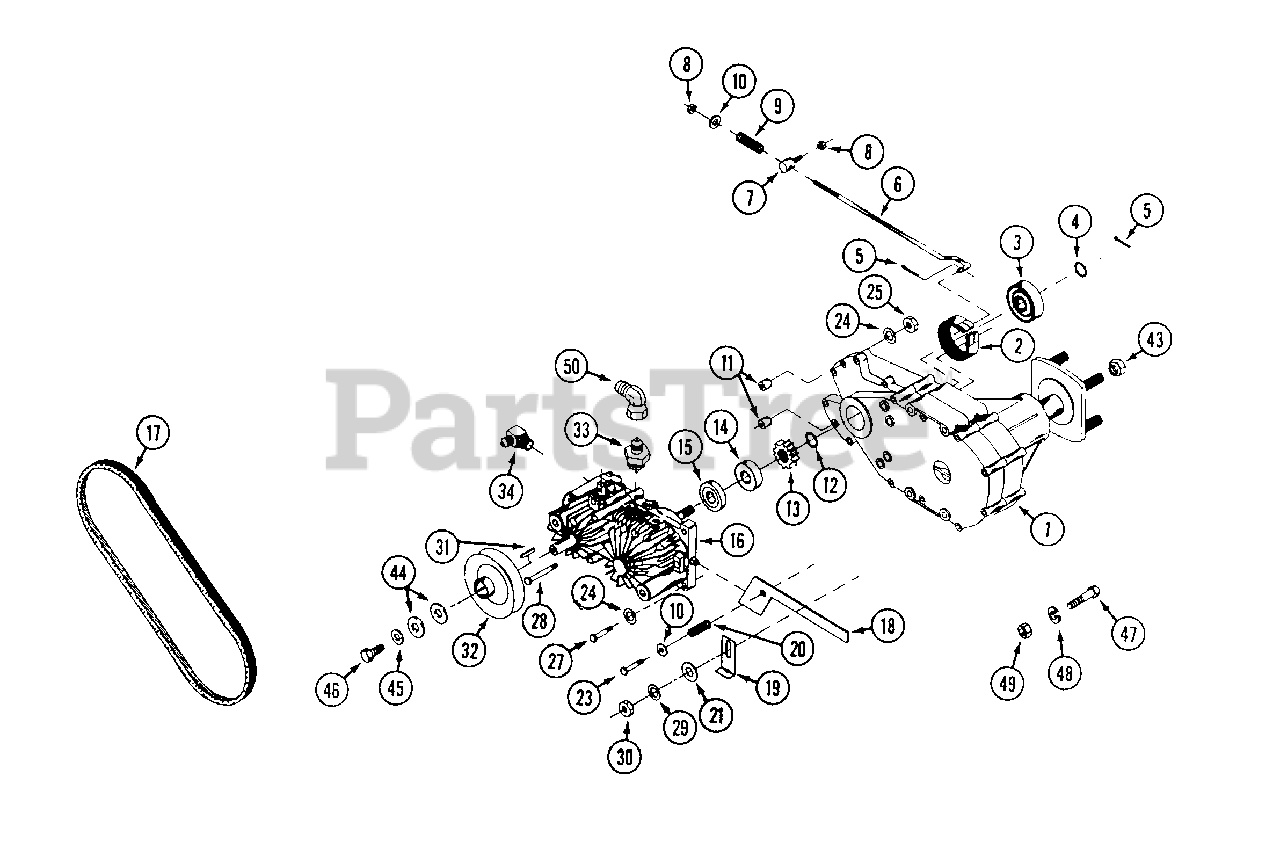

FR-180 C (135-018-190) - White Outdoor Front-Mount Riding Mower (1995) > Parts Diagrams (30) > Drive Assembly L.H.

  • Title
WD-900-8134

1

TRANSMISSION - ZT

Part# WD-900-8134

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-7050

2

BAND - brake

Part# WD-900-7050

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-7051

3

DRUM - brake

Part# WD-900-7051

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-7052

4

RING - snap

Part# WD-900-7052

OEM Warranty Repair Part for White Outdoor

Not available

WD-132-332

5

PIN - cotter 1/8" x 1"

Part# WD-132-332

OEM Warranty Repair Part for White Outdoor

Not available

WD-114-0004

6

ROD - brake

Part# WD-114-0004

OEM Warranty Repair Part for White Outdoor

Not available

WD-111-0014

7

COLLAR - rod

Part# WD-111-0014

OEM Warranty Repair Part for White Outdoor

Not available

WD-131-71

8

NUT - lock 1/4" - 20

Part# WD-131-71

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5722

9

SPRING

Part# WD-900-5722

OEM Warranty Repair Part for White Outdoor

Not available

WD-195-102

10

WASHER - 1/4"

Part# WD-195-102

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-7045

11

SPACER

Part# WD-900-7045

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-7046

12

RING - snap

Part# WD-900-7046 (Superseded to 716-0865)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

WD-900-7047

13

GEAR

Part# WD-900-7047

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-7048

14

BEARING

Part# WD-900-7048 (Superseded to 941-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.54

WD-900-7049

15

SPACER

Part# WD-900-7049

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45398

16

PUMP - hydro. L.H.

Part# WD-C45398

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3027

17

BELT - pump drive

Part# WD-900-3027

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45165

18

LEVER - transmission dump L.H.

Part# WD-C45165

Not available

WD-114-0001

19

BRACKET - dump lever stop

Part# WD-114-0001

Not available

WD-900-6501

20

SPRING - compression

Part# WD-900-6501

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6052

21

WASHER - 3/8"

Part# WD-900-6052

Not available

WD-900-6019

23

BOLT - dump lever

Part# WD-900-6019

Not available

WD-192-20

24

LOCKWASHER - 5/16"

Part# WD-192-20

OEM Warranty Repair Part for White Outdoor

Not available

WD-129-102

25

NUT - 5/16" - 18

Part# WD-129-102

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-120

27

BOLT - 5/16" - 18 x 1-3/4"

Part# WD-113-120

Not available

WD-113-134

28

BOLT - 5/16" - 18 x 7-1/2"

Part# WD-113-134

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37591

29

LOCKWASHER - 3/8"

Part# WD-C37591

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37592

30

NUT - 3/8" - 16

Part# WD-C37592 (Superseded to 712-04065)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

WD-900-6168

31

KEY - 5 x 5 x 25 mm

Part# WD-900-6168

OEM Warranty Repair Part for White Outdoor

Not available

~NSS

32

PULLEY - 4" O.D. x 15 mm ID

Part# ~NSS

Note: (Use C45473, C45474)

Not available

WD-C45473

32

PULLEY - 4"

Part# WD-C45473

Note: (Use C32199 set screw)

OEM Warranty Repair Part for White Outdoor

Not available

WD-218-5354

33

FITTING - male adapter

Part# WD-218-5354

Not available

WD-218-5278

34

FITTING - male adaptor 90°

Part# WD-218-5278

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-4048

WHEEL ASSEMBLY -

Part# WD-900-4048

Note: (Not shown)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-4042

TIRE - 18 x 9.50-8

Part# WD-900-4042

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-4040

RIM - wheel

Part# WD-900-4040

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6138

43

NUT - lug 1/2" - 20

Part# WD-900-6138

OEM Warranty Repair Part for White Outdoor

Not available

WD-195-2063

44

WASHER - .625" x 1"

Part# WD-195-2063

OEM Warranty Repair Part for White Outdoor

Not available

WD-195-520

45

WASHER - .312" x .875"

Part# WD-195-520

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45273

?46

BOLT - M6 - 1.0 x 12 mm flange

Part# WD-C45273

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-203

47

BOLT - 3/8" - 16 x 3-1/2" mounting

Part# WD-113-203

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-267

BOLT - 3/8" - 16 x 4" mounting

Part# WD-113-267

Not available

WD-192-21

48

LOCKWASHER - 3/8"

Part# WD-192-21 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

WD-129-103

49

NUT - 3/8" - 16

Part# WD-129-103 (Superseded to 712-04065)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

WD-218-5172

50

FITTING - 45° male to female

Part# WD-218-5172

Not available
