FR-1800 (131-013-190) - White Outdoor Front-Mount Riding Mower (1991) 52" Rear Discharge Deck Parts Parts Diagram

Front-Mount Riding Mower

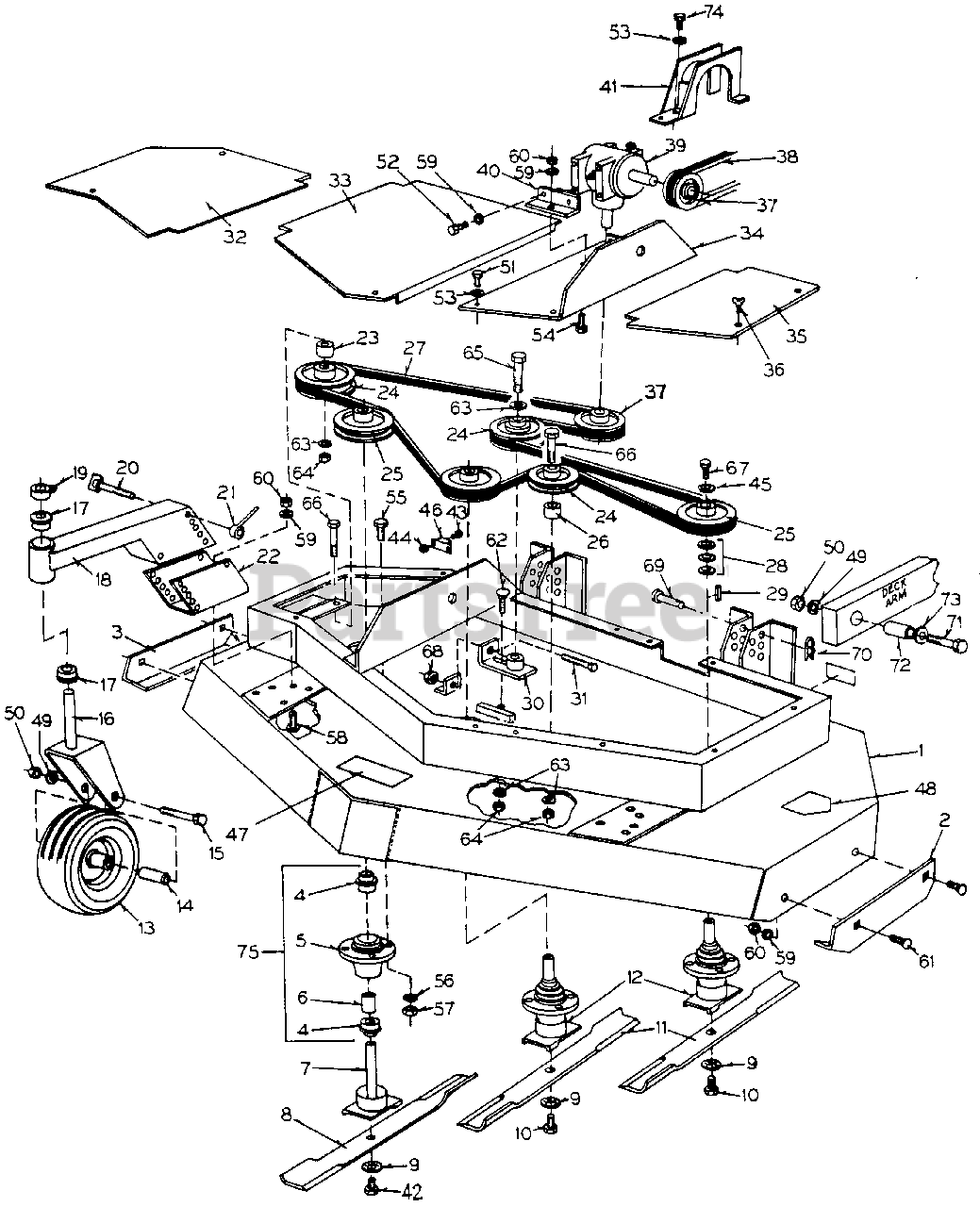

52" Rear Discharge Deck Parts Parts Diagram

  • Title

1

WD-321-0000

Rear Discharge Deck, 52"

$

$

Not available

2

White Outdoor WD-320-0014

Shoe, LH

$

$

Not available

3

White Outdoor WD-321-0003

Shoe, RH

$

$

Not available

4

White Outdoor WD-900-3506

Spindle Bearing
(Superseded to WD-C42786P)

$88.99

$

In Stock, only 1 left!

0

5

White Outdoor WD-300-0025

Spindle Housing

$

$

Not available

6

White Outdoor WD-300-0027

SpindleSpacer

$

$

Not available

7

White Outdoor WD-321-0004

Spindle Shaft, LH

$

$

Not available

8

White Outdoor WD-900-5814

Blade, LH

$

$

Not available

9

White Outdoor WD-900-5534

Blade Washer

$

$

Not available

10

White Outdoor WD-900-6080

Hex Bolt, 3/8-24 x 1 1/4, GRS
(Superseded to WD-114-201)

$

$

Not available

11

White Outdoor WD-900-5814

Blade, RH

$

$

Not available

12

White Outdoor WD-300-0026

Spindle Shaft, RH
(Superseded to WD-C37883)

$

$

Not available

13

White Outdoor WD-900-4004

Gauge Wheel Assembly

$

$

Not available

White Outdoor WD-900-4006

Tire, 11 x 4.00

$

$

Not available

White Outdoor WD-900-4005

Rim, 5"

$

$

Not available

White Outdoor WD-900-3505

Bearing, Wheel Assembly

$

$

Not available

14

White Outdoor WD-200-0017

Axle
(Superseded to WD-C37915)

$

$

Not available

15

White Outdoor WD-900-6133

Hex Bolt, 1/2-13 x 6 1/2, GR2

$

$

Not available

16

White Outdoor WD-330-0007

Fork

$

$

Not available

17

White Outdoor WD-900-3501

Bearing, 1"

$

$

Not available

18

White Outdoor WD-300-0043

GaugeWheel Mount

$

$

Not available

19

White Outdoor WD-900-5510

SetCollar, 1"

$

$

Not available

20

White Outdoor WD-900-6096

Wing Bolt

$

$

Not available

21

White Outdoor WD-900-6092

Handle Nut

$

$

Not available

22

White Outdoor WD-300-0044

GaugeWheel Mount Bracket

$

$

Not available

23

White Outdoor WD-321-0005

IdlerSpacer, RH

$

$

Not available

24

White Outdoor WD-900-2558

Idler Pulley

$

$

Not available

25

White Outdoor WD-900-2557

Spindle Pulley

$

$

Not available

26

White Outdoor WD-300-0016

Idler Pulley Spacer
(Superseded to WD-C37937)

$

$

Not available

27

White Outdoor WD-900-3028

Deck Belt

$

$

Not available

28

White Outdoor WD-900-6002

Spacer Washer

$

$

Not available

29

White Outdoor WD-300-0021

Key, 3/16 x 3/16 x 1"
(Superseded to 914-0105)

$3.49

$

Usually ships in 3-6 days

0

30

White Outdoor WD-300-0015

Belt Tightener

$

$

Not available

31

White Outdoor WD-900-6034

Hex Tap Bolt, 1/4-20 x 4 "

$

$

Not available

32

White Outdoor WD-321-0002

Cover, RH

$

$

Not available

33

White Outdoor WD-320-0002

Cover, Center

$

$

Not available

34

White Outdoor WD-321-0001

Gearbox Mount

$

$

Not available

35

White Outdoor WD-320-0001

Cover, LH

$

$

Not available

36

White Outdoor WD-900-6043

ThumbScrew, 1/4-20x 1/2

$

$

Not available

37

White Outdoor WD-900-2525

Gearbox Pulley
(Superseded to WD-C37892)

$

$

Not available

38

White Outdoor WD-900-3004

Deck Drive Belt

$

$

Not available

39

White Outdoor WD-900-5842

Gearbox Assembly

$

$

Not available

40

White Outdoor WD-310-0006

Gearbox Mount Angle

$

$

Not available

41

White Outdoor WD-311-0002

Ben Guard

$

$

Not available

42

White Outdoor WD-900-6100

Hex Bolt, 318-24 x 1 1/4, GRS, LH

$

$

Not available

43

Panhead Machine Screw, No. 10- 32x1/2 *

$

$

Not available

44

White Outdoor WD-900-6150

Integral Star Washer Nut, No. 10-32

$

$

Not available

45

White Outdoor WD-300-0017

Spindle Washer

$

$

Not available

46

White Outdoor WD-900-2044

10 Amp Circuit Breaker

$

$

Not available

47

White Outdoor WD-900-5542

Decal, Caution-Whirling Blade

$

$

Not available

48

White Outdoor WD-900-5549

Decal, Danger

$

$

Not available

49

Lockwasher, 1/2" *

$

$

Not available

50

Hex Nut, 1/2-13 *

$

$

Not available

51

Hex Capscrew, 114-20 x 3/4, GR5 *

$

$

Not available

52

Hex Capscrew, 5/16-18 x l, GR5 *

$

$

Not available

53

Lockwasher, 1/4 *

$

$

Not available

54

Hex Capscrew, 5/16-18 x 3/4, GR5*

$

$

Not available

55

Hex Capscrew, 7/16-14 x 1 1/4, GRS *

$

$

Not available

56

Lockwasher, 7/16 *

$

$

Not available

57

Hex Nut, 7/16-14*

$

$

Not available

58

Carriage Bolt, 5/16-18 x 1, GRS *

$

$

Not available

59

Lockwasher, 5/16 *

$

$

Not available

60

Hex Nut, 5/16 *

$

$

Not available

61

Carriage Bolt, 5/16-18 x 3/4 *

$

$

Not available

62

Carriage Bolt, 3/8-16x l *

$

$

Not available

63

Lockwasher, 3/8 *

$

$

Not available

64

Hex Nut, 3/8-16*

$

$

Not available

65

Hex Capscrew, 3/8-16 x 1 1/4 GR5*

$

$

Not available

66

HexCapscrew,3/8-16x21/2 GR5*

$

$

Not available

67

White Outdoor WD-900-6053

Hex Capscrew, 5/16-24 x 3/4, GRS
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

68

Elastic Stop Nut, 1/4-20 *

$

$

Not available

69

White Outdoor WD-900-5519

Clevis Pin, 1/2x 1 1/2

$

$

Not available

70

White Outdoor WD-900-5520

Hairpin Cotter, .120 x 21/4

$

$

Not available

71

Hex Capscrew, 1/2-13 x l 1/2 GR5 *

$

$

Not available

72

White Outdoor WD-300-0013

Bushing, Deck Lift Arm
(Superseded to WD-C37586)

$

$

Not available

73

Flatwasher, 1/2 *

$

$

Not available

74

Hex Capscrew, 1/4-20 x 1/2, GR5 *

$

$

Not available

75

White Outdoor WD-600-0000

Spindle Housing Assembly

Note: (Includes Items 4,5,6)

$

$

Not available
