FR-1800 (132-013-190) - White Outdoor Front-Mount Riding Mower (1992) AGRI-FAB Sundstrand Base Assembly - S/N 41-027-012841 & Later Parts Diagram

Front-Mount Riding Mower

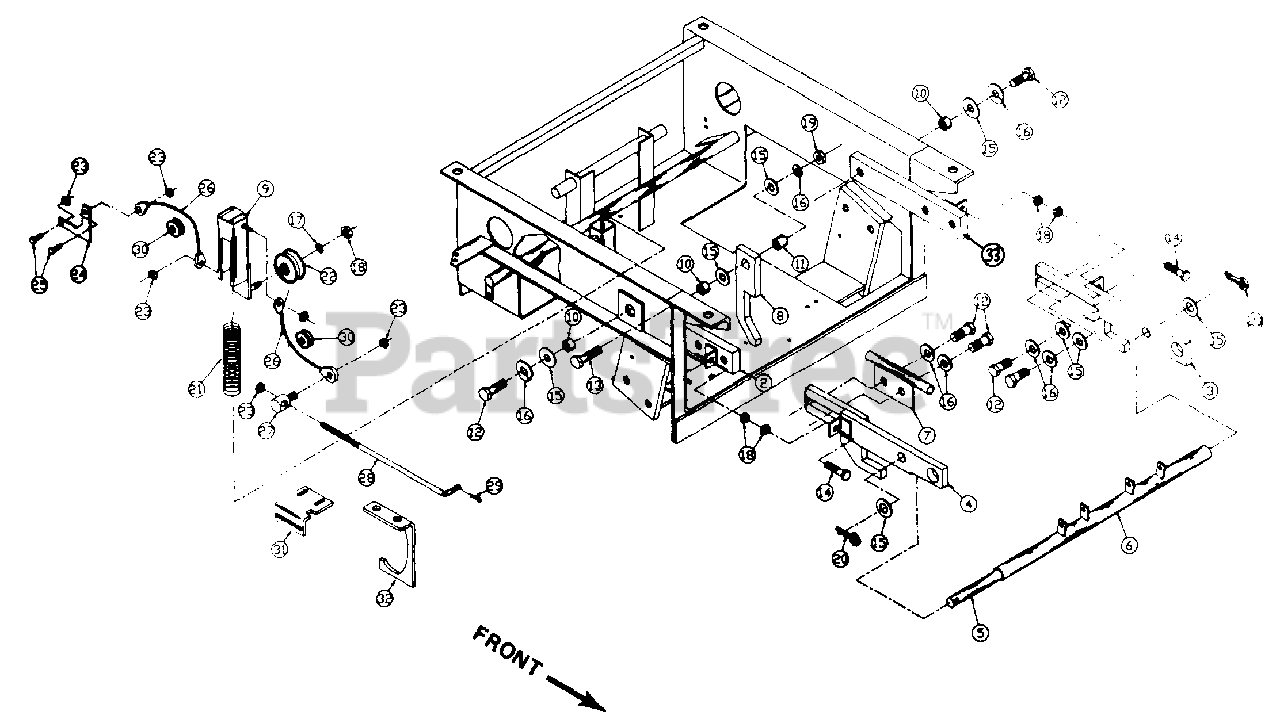

AGRI-FAB Sundstrand Base Assembly - S/N 41-027-012841 & Later Parts Diagram

  • Title

?1

White Outdoor WD-114-0000

Base, SA

$

$

Not available

2

WD-301-0024

Deck Arm

$

$

Not available

3

White Outdoor WD-300-0023LH

Deck Arm, Front, LH

$

$

Not available

4

White Outdoor WD-300-0023RH

Deck Arm, Front, RH

$

$

Not available

5

WD-300-0022

Cross Bar Pin

$

$

Not available

6

White Outdoor WD-300-0014

Cross Bar

$

$

Not available

7

White Outdoor WD-300-0041

Wire Tube

$

$

Not available

8

White Outdoor WD-111-0023

Forward Nose Down Lock

$

$

Not available

9

White Outdoor WD-114-0003

Drive Idler Tube

$

$

Not available

10

White Outdoor WD-300-0013S

Deck Lift Arm Bushing, Short
(Superseded to WD-C37576)

$

$

Not available

11

White Outdoor WD-300-0013

Deck Lift Arm Bushing
(Superseded to WD-C37586)

$

$

Not available

12

WD-900-6129

Hex Bolt, 1/2-13 x 1 1/4", GR5

$

$

Not available

13

WD-900-6131

Hex Bolt, 1/2-13 x 2 1/4", GR5

$

$

Not available

14

White Outdoor WD-900-6088

Hex Tap Bolt, 3/8-16 x 3", GR5

$

$

Not available

15

WD-900-6128

Flatwasher, 1/2"

$

$

Not available

16

White Outdoor WD-900-6127

Lockwasher, 1/2"
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

17

WD-900-6067

Lockwasher, 3/8"

$

$

Not available

18

WD-900-6075

Hex Nut, 3/8-16

$

$

Not available

19

White Outdoor WD-900-6125

Hex Nut, 1/2-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

20

WD-900-6176

Cotter Pin, 1/8" x 1"

$

$

Not available

21

White Outdoor WD-900-5580

Trans. Belt Tightener Spring

$

$

Not available

22

White Outdoor WD-900-2553

Idler Pulley, 2 1/4" OD

$

$

Not available

23

WD-900-6027

Elastic Stop Nut, 1/4-20

$

$

Not available

24

WD-114-0014

L Brake Linkage

$

$

Not available

25

WD-900-6031

Hex Bolt, 1/4-20 x 1", GR5

$

$

Not available

26

WD-900-5824

Clutch Brake Cable

$

$

Not available

27

White Outdoor WD-111-0014

Caliper Rod Collar

$

$

Not available

28

White Outdoor WD-111-0007

Caliper Rod

$

$

Not available

29

WD-900-6175

Cotter Pin, 3/32" x 1"

$

$

Not available

30

WD-900-2554

Cable Pulley, 1 1/2" OD

$

$

Not available

31

WD-114-0010

Engine Belt Retainer Bracket

$

$

Not available

32

White Outdoor WD-114-0011

Engine Belt Retainer

$

$

Not available

33

WD-301-0024LH

Deck Arm, LH

$

$

Not available
