FR-1800 (132-013-190) - White Outdoor Front-Mount Riding Mower (1992) Base Assembly - Prior to S/N 41-027-012814 Parts Diagram

Front-Mount Riding Mower

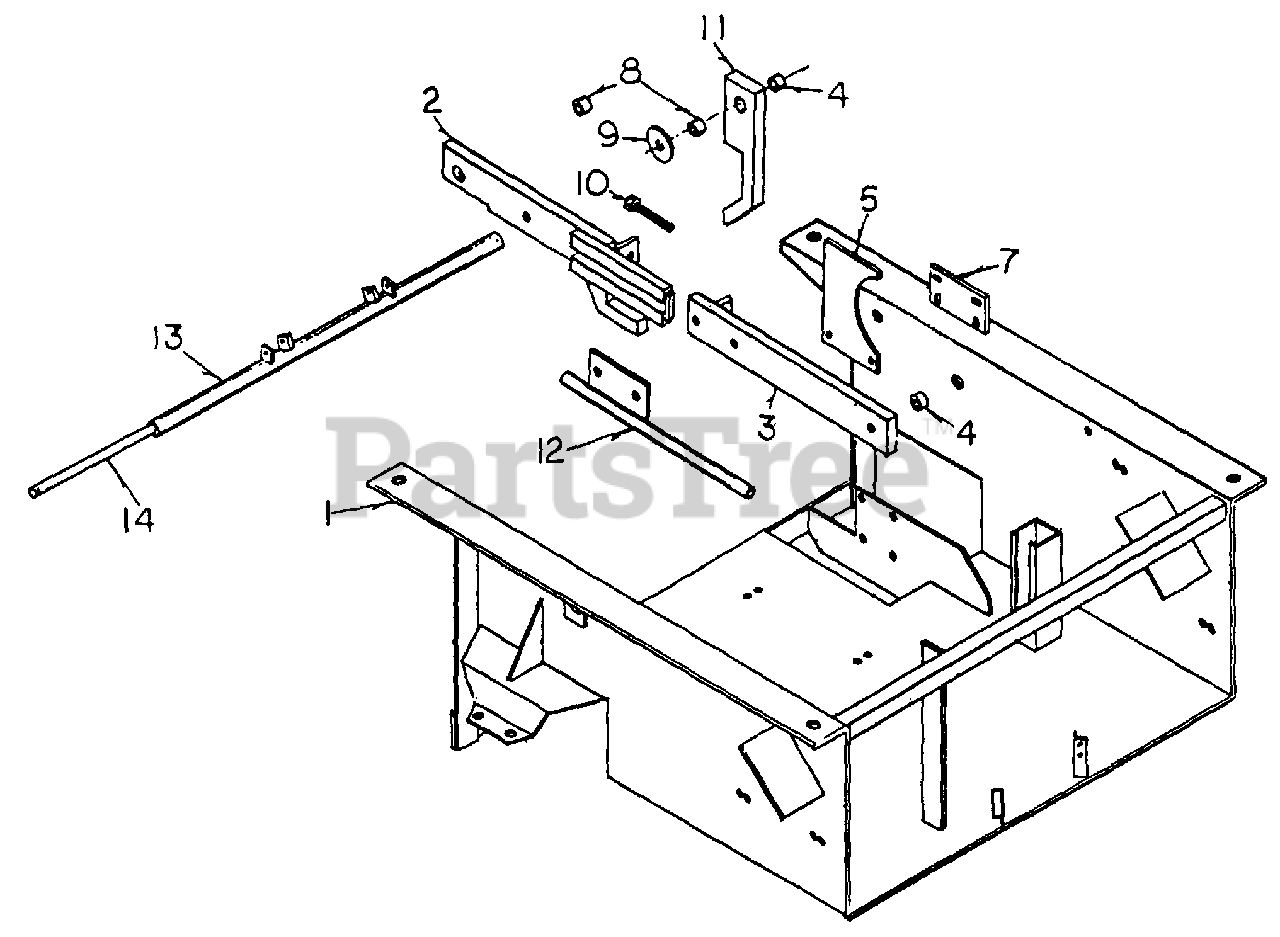

Base Assembly - Prior to S/N 41-027-012814 Parts Diagram

  • Title

1

WD-113-0000

Base

$

$

Not available

2

White Outdoor WD-300-0023RH

Deck Lift Arm, Front RH

$

$

Not available

White Outdoor WD-300-0023LH

Deck Lift Arm, Front LH

$

$

Not available

3

WD-301-0024

Deck Lift Arm, Back

$

$

Not available

4

White Outdoor WD-300-0013S

Bushing, Short
(Superseded to WD-C37576)

$

$

Not available

5

WD-113-0007

Belt Retainer

$

$

Not available

7

WD-112-0008

Belt Retainer Mount

$

$

Not available

8

White Outdoor WD-300-0013

Bushing, Long
(Superseded to WD-C37586)

$

$

Not available

9

White Outdoor WD-200-0015

Washer

$

$

Not available

10

White Outdoor WD-900-6088

Deck Belt Adjustment Bolt

$

$

Not available

11

White Outdoor WD-111-0023

Forward Nose Down Lock

$

$

Not available

12

White Outdoor WD-300-0041

Wire Tube

$

$

Not available

13

White Outdoor WD-300-0014

Cross Bar

$

$

Not available

14

WD-300-0022

Cross Bar Pin

$

$

Not available
