FR-1800 (133-013-190) - White Outdoor Front-Mount Riding Mower (1993) Pump Drive (S/N Prior to 41-027-012814) Parts Diagram

Front-Mount Riding Mower

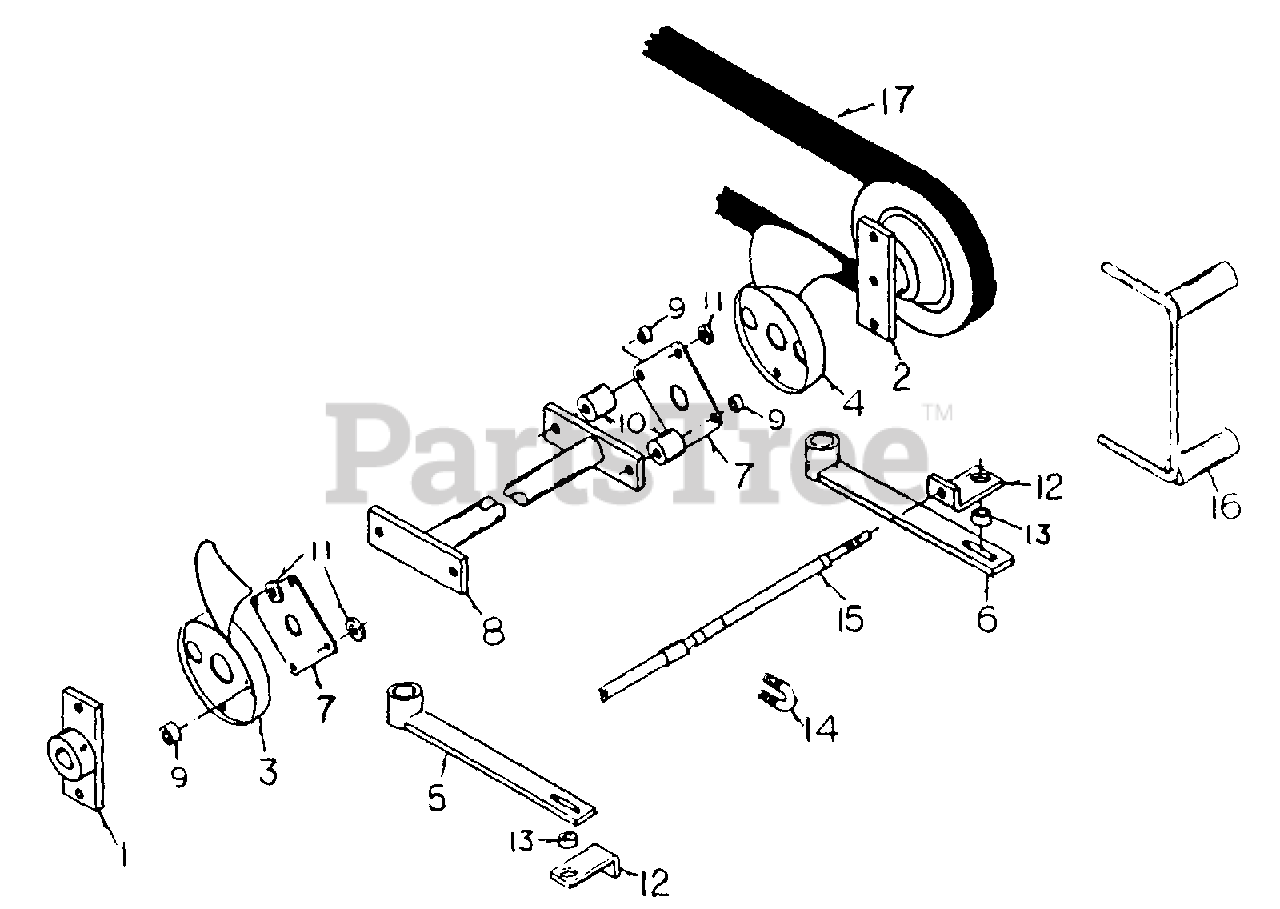

Pump Drive (S/N Prior to 41-027-012814) Parts Diagram

  • Title
1

White Outdoor WD-900-4522

Hub w/drive plate

$

$

Not available

2

White Outdoor WD-900-4521

PULLEY w/drive plate

$

$

Not available

$

$

Not available

$

$

Not available

5

White Outdoor WD-900-4506

TRANSMISSION ARM - L.H.

$

$

Not available

6

White Outdoor WD-900-4507

TRANSMISSION ARM - R.H.

$

$

Not available

7

White Outdoor WD-111-0021

DRIVE PLATE
(Superseded to WD-C37700)

$

$

Not available

8

White Outdoor WD-113-0002

TRANSMISSION CROSS SHAFT

$

$

Not available

$

$

Not available

$

$

Not available

11

White Outdoor WD-900-6161

WASHER - 1/4" 10 ga.

$

$

Not available

12

White Outdoor WD-200-0013

STEERING CABLE END
(Superseded to WD-C37614)

$

$

Not available

13

White Outdoor WD-200-0014

BUSHING - steering lever
(Superseded to WD-C42895)

$

$

Not available

14

White Outdoor WD-900-5503

STEERING CABLE CLAMP
(Superseded to WD-C37616)

$

$

Not available

15

White Outdoor WD-900-5502

STEERING CABLE

$

$

Not available

16

White Outdoor WD-111-0003

BELT RETAINER - Transmission

$

$

Not available

$

$

Not available
