FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) 52" Mower Deck And Attaching Parts Parts Diagram

Front-Mount Riding Mower

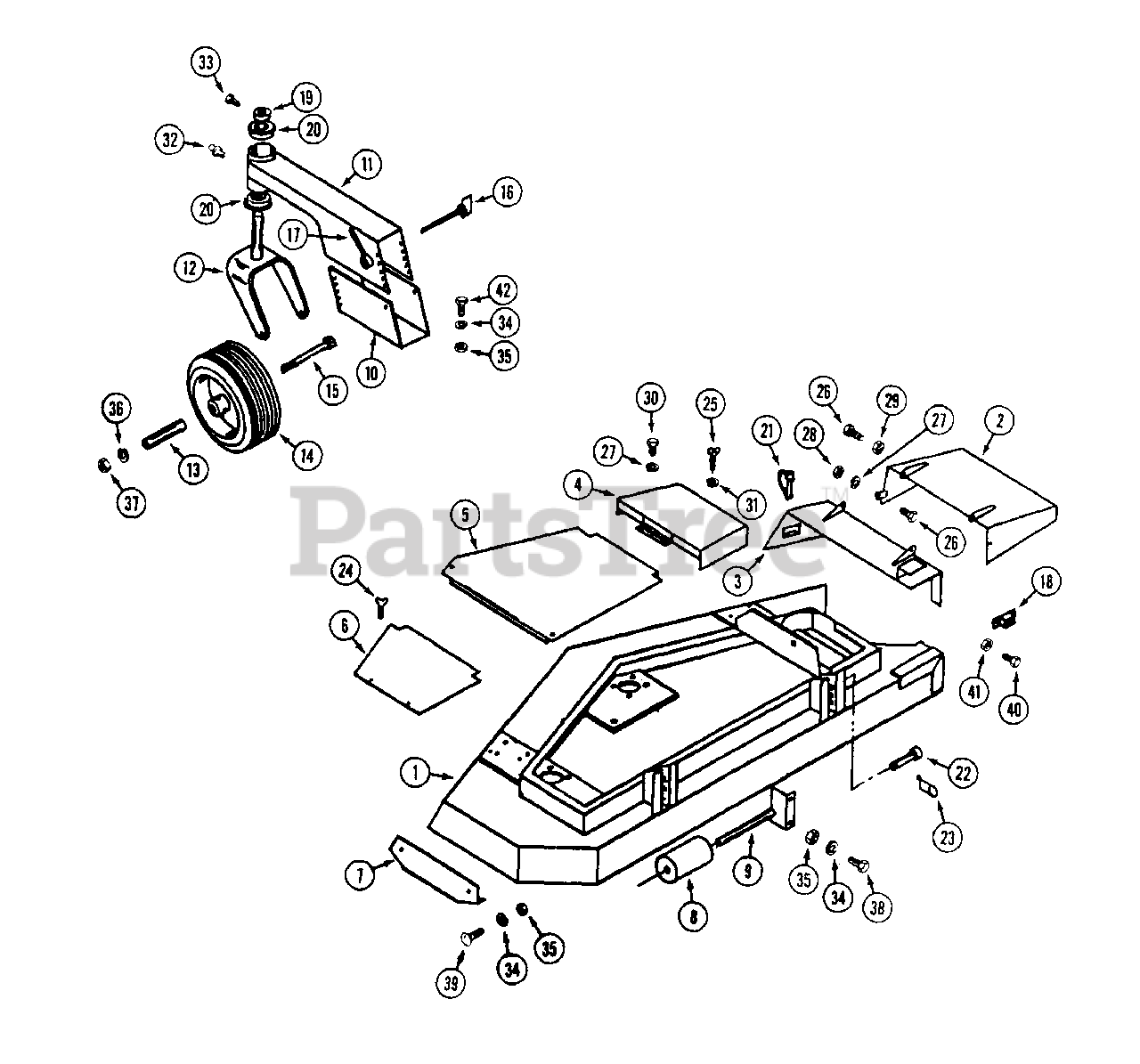

52" Mower Deck And Attaching Parts Parts Diagram

  • Title

1

White Outdoor WD-C44086

Deck 52"

$

$

Not available

2

White Outdoor WD-C39208

CHUTE - foot guard

Variations

White Outdoor WD-C39208-0483

No Longer Available CHUTE - CHARCOAL GRAY (0483)

$

$

Not available

$

$

3

White Outdoor WD-C39209

MOUNT - foot guard

$

$

Not available

4

White Outdoor WD-C39204

COVER - pulley

$

$

Not available

5

White Outdoor WD-C39203

COVER - center

$

$

Not available

6

White Outdoor WD-C39200

COVER - L.H.

$

$

Not available

7

White Outdoor WD-C37942

SHOE - skid

$

$

Not available

8

White Outdoor WD-C37910

ROLLER - anti-scalp

$

$

Not available

9

White Outdoor WD-C37911

SHAFT - roller

$

$

Not available

10

White Outdoor WD-C37912

BRACKET - gauge wheel mount

$

$

Not available

11

White Outdoor WD-C37913

MOUNT - gauge wheel

$

$

Not available

12

White Outdoor WD-C37914

FORK

$

$

Not available

13

White Outdoor WD-C37915

AXLE - wheel

$

$

Not available

14

White Outdoor WD-C37916

WHEEL - gauge

$

$

Not available

White Outdoor WD-C37917

TIRE - 11 x 4.00 - 5

$

$

Not available

White Outdoor WD-C37918

RIM - 5"

$

$

Not available

White Outdoor WD-C44499

BEARING - wheel

$

$

Not available

15

White Outdoor WD-113-2419

BOLT - 1/2" - 13 x 6-1/2"

$

$

Not available

16

White Outdoor WD-C37920

BOLT - wing

$

$

Not available

17

White Outdoor WD-C37921

NUT - gauge wheel handle

$

$

Not available

18

White Outdoor WD-C37505

BREAKER - circuit, 10 amp

$

$

Not available

19

White Outdoor WD-C37860

COLLAR - set

$

$

Not available

20

White Outdoor WD-C37824

BEARING - 1"

$

$

Not available

21

White Outdoor WD-C37922

PIN - "fas-tatch"

$

$

Not available

22

White Outdoor WD-C10821

PIN - deck

$

$

Not available

23

White Outdoor WD-C29029

PIN - cotter, hair

$

$

Not available

24

~NSS

SCREW - thumb 1/4" - 20 x 1/2"

Note: (Use 113-3 and 192-19)

$

$

Not available

25

~NSS

SCREW - wing 1/4" - 20 x 1"

Note: (Use 113-3)

$

$

Not available

26

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

27

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

28

WD-129-101

NUT - 1/4" - 20

$

$

Not available

29

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

30

WD-113-1

BOLT - 1/4" - 20 x 1"

$

$

Not available

31

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

32

White Outdoor WD-C37993

FITTING - grease

$

$

Not available

?33

White Outdoor WD-C37756

SCREW - set 5/16" - 18 x 1/2" square head

$

$

Not available

34

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

35

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

36

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

37

White Outdoor WD-129-105

NUT - 1/2" - 13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

39

White Outdoor WD-111-202

BOLT - 5/16" - 18 x 3/4" carriage

$

$

Not available

40

WD-182-528

SCREW - #10 - 32 x 1/2"

$

$

Not available

41

White Outdoor WD-C37598

NUT #10 - 32

$

$

Not available

42

White Outdoor WD-111-203

BOLT - 5/16" - 18 x 1" carriage

$

$

Not available
