FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Air Cleaner Parts Diagram

Front-Mount Riding Mower

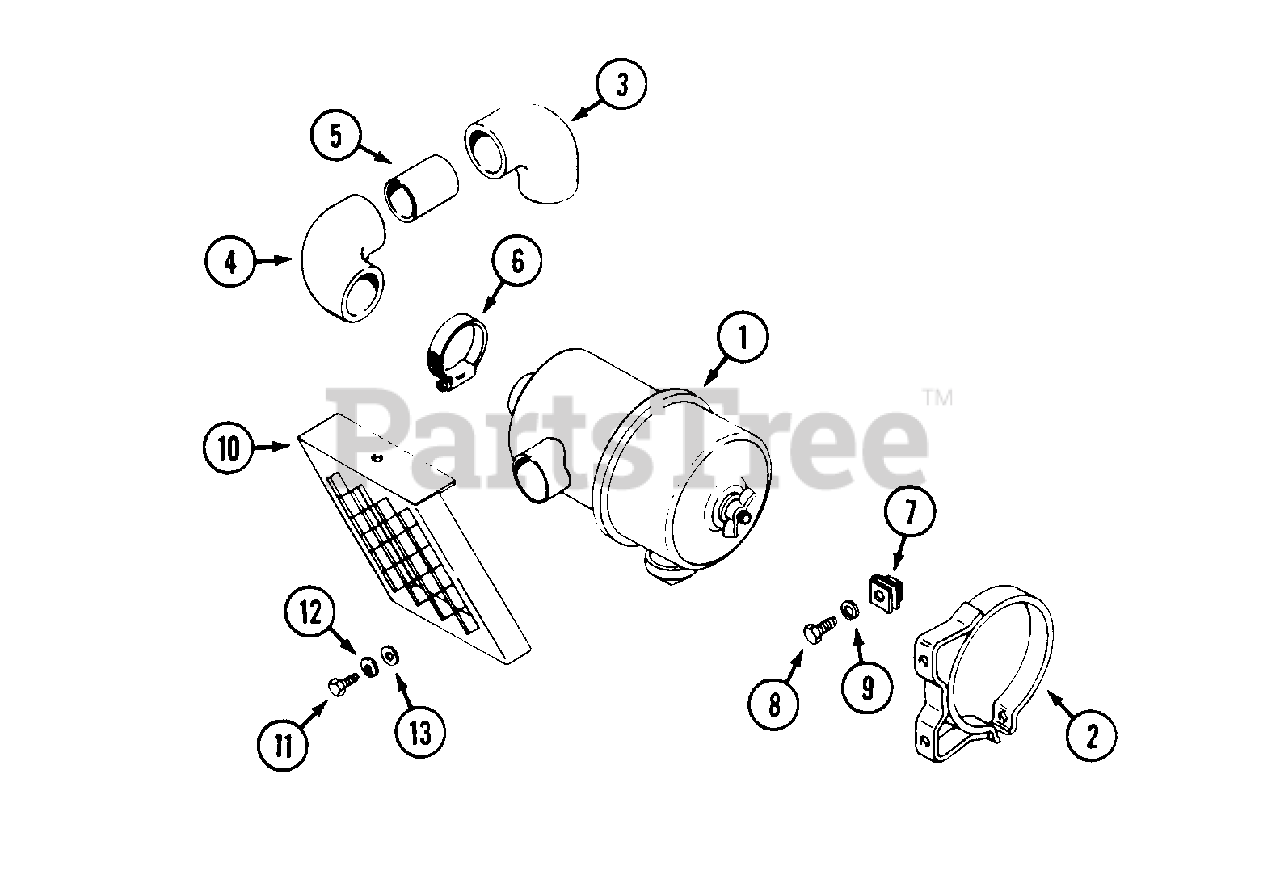

Air Cleaner Parts Diagram

  • Title

1

WD-C43030

AIR CLEANER ASSEMBLY

$

$

Not available

White Outdoor WD-C43445

ELEMENT - air cleaner

$

$

Not available

WD-C43594

WING NUT - element

$

$

Not available

WD-C43595

WING NUT - cup

$

$

Not available

WD-C43596

WASHER - cup

$

$

Not available

2

WD-C43033

BRACKET - air cleaner

$

$

Not available

3

WD-C45305

HOSE - engine

$

$

Not available

4

WD-C45340

HOSE - air cleaner

$

$

Not available

5

WD-C43366

TUBE - air

$

$

Not available

6

WD-214-258

CLAMP - hose

$

$

Not available

7

WD-C31973

NUT - "J" 1/4" - 20

$

$

Not available

8

WD-113-2

BOLT - 1/4" - 20 x 5/8"

$

$

Not available

9

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

10

WD-C45306

INTAKE - air

$

$

Not available

11

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

12

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

13

WD-195-518

WASHER - 1/4"

$

$

Not available
