FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Camshaft Case And Throttle Linkage Parts Diagram

Front-Mount Riding Mower

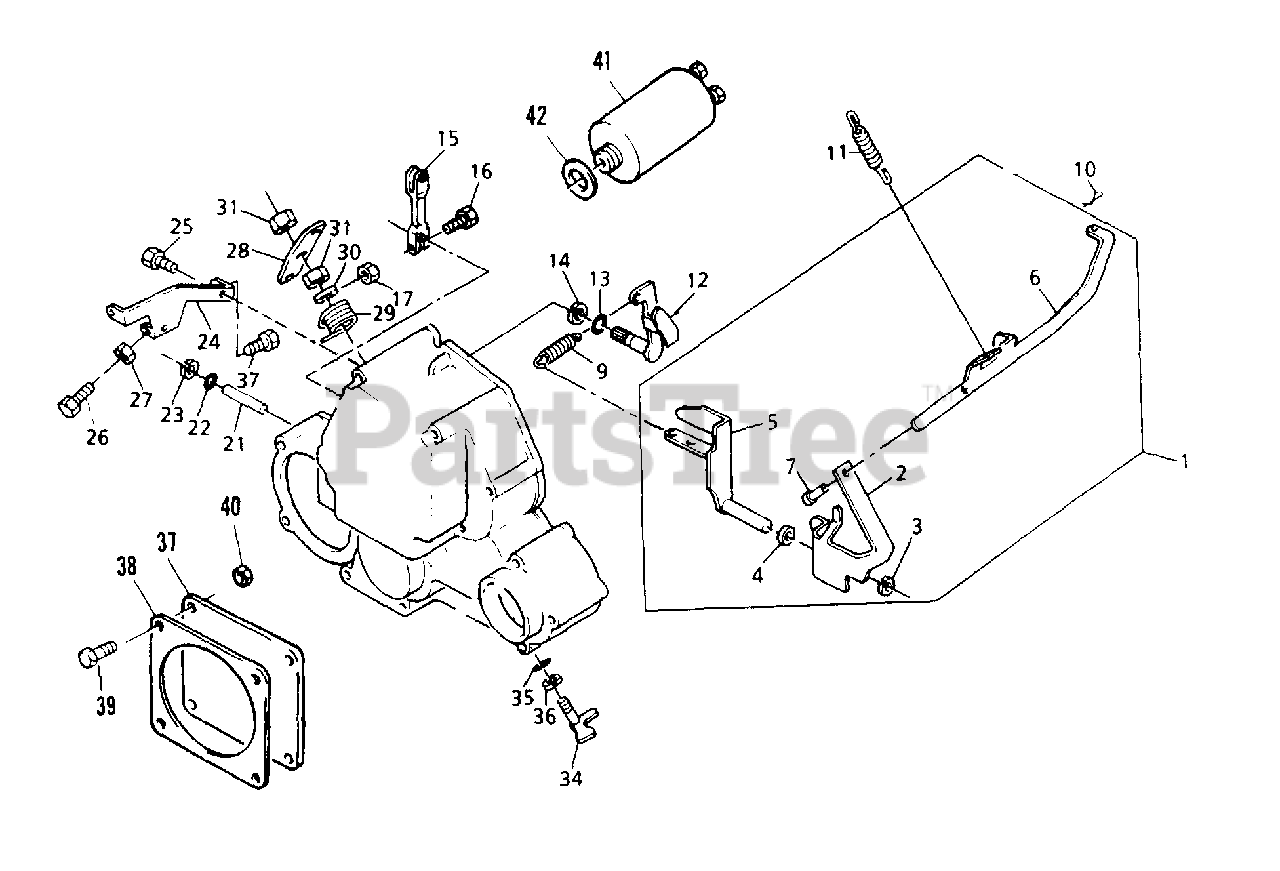

Camshaft Case And Throttle Linkage Parts Diagram

  • Title

1

WD-P125046140

LEVER ASSEMBLY

$

$

Not available

2

~NSS

LEVER

$

$

Not available

3

WD-P036800008

CIRCLIP

$

$

Not available

4

WD-P026200010

WASHER

$

$

Not available

5

WD-P125406071

LEVER

$

$

Not available

6

~NSS

LINK

$

$

Not available

7

~NSS

PIN

$

$

Not available

9

WD-P198217110

SPRING

$

$

Not available

10

WD-P031100004

PIN

$

$

Not available

11

WD-P198216731

SPRING

$

$

Not available

12

WD-P125156170

ARM

$

$

Not available

13

WD-P052100070

"O" RING

$

$

Not available

14

WD-P036800008

CIRCLIP

$

$

Not available

15

WD-P125416020

LEVER

$

$

Not available

16

WD-P010110630

SCREW

$

$

Not available

17

WD-P023100006

NUT

$

$

Not available

21

WD-P125116130

SHAFT

$

$

Not available

22

WD-P052100030

"O" RING

$

$

Not available

23

WD-P036800005

CIRCLIP

$

$

Not available

24

WD-P125976120

STAY

$

$

Not available

25

WD-P011300616

SCREW

$

$

Not available

26

WD-P010109264

SCREW

$

$

Not available

27

WD-P023100006

NUT

$

$

Not available

28

WD-P125176080

LEVER

$

$

Not available

29

WD-P198216760

SPRING

$

$

Not available

30

WD-P026200008

WASHER

$

$

Not available

31

WD-P020300008

NUT

$

$

Not available

34

WD-P125156180

ARM

$

$

Not available

35

WD-P052100050

"O" RING

$

$

Not available

36

WD-P036800006

CIRCLIP

$

$

Not available

37

WD-P165206360

PLATE

$

$

Not available

38

WD-P165996420

GASKET

$

$

Not available

39

WD-P010110850

SCREW

$

$

Not available

40

WD-P023100008

NUT

$

$

Not available

41

WD-P185206082

SOLENOID - fuel shut off

$

$

Not available

42

WD-P025100016

WASHER

$

$

Not available
