FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Drive Idler Parts Diagram

Front-Mount Riding Mower

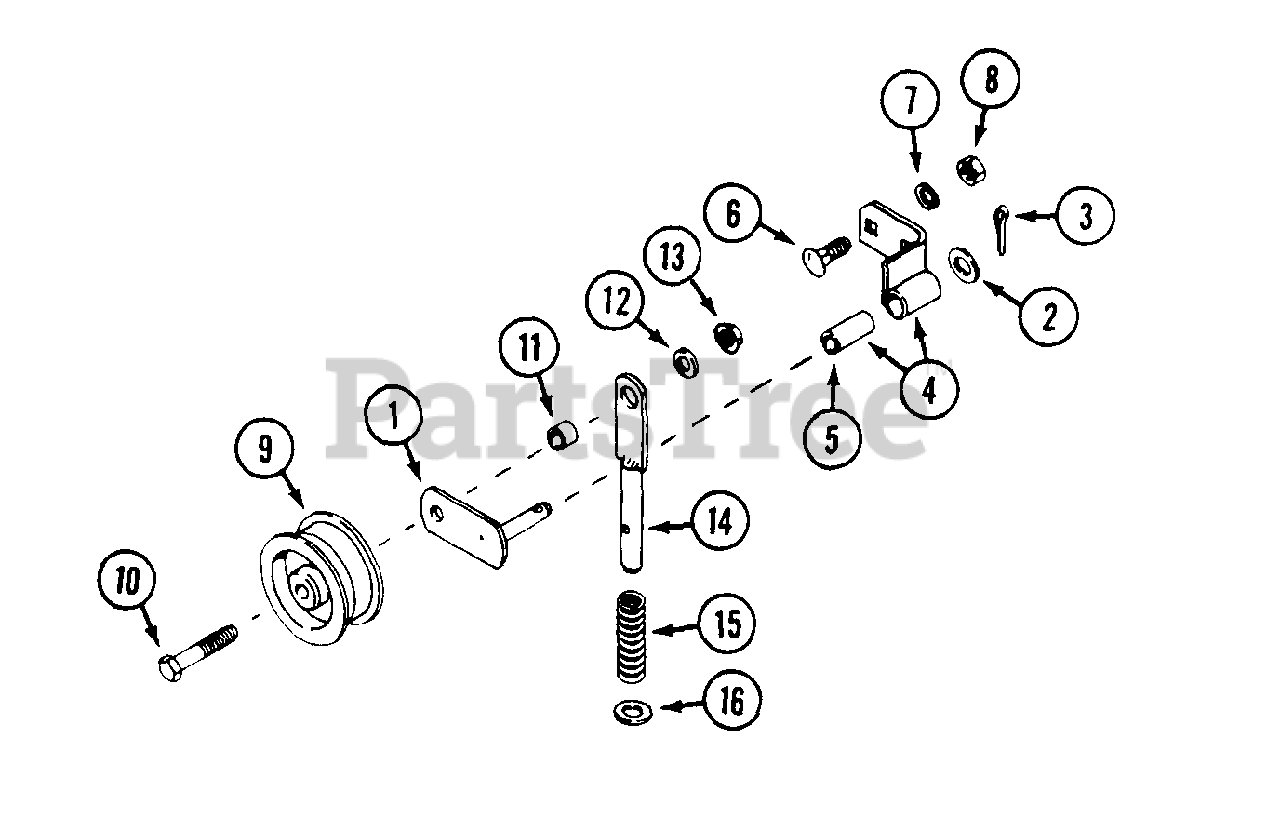

Drive Idler Parts Diagram

  • Title

1

WD-C45230

ARM - idler

$

$

Not available

2

WD-195-2067

WASHER - 1/2" x 7/8"

$

$

Not available

3

WD-132-320

PIN - cotter 3/32" x 3/4"

$

$

Not available

4

WD-C45400

BRACKET - pivot

Note: (Includes bushing)

$

$

Not available

5

White Outdoor WD-C16714

BUSHING - .50" x .62" x 1.5"

$

$

Not available

6

WD-111-342

BOLT - carriage 3/8" - 16 x 1"

$

$

Not available

7

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

8

White Outdoor WD-129-103

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor WD-C38445

PULLEY - 3.25" x 1.38"

$

$

Not available

10

White Outdoor WD-113-213

BOLT - 3/8" - 16 x 2-1/4"

$

$

Not available

11

White Outdoor WD-C16573

SPACER - .38" x .62" x .41"

$

$

Not available

12

WD-195-525

WASHER - 3/8"

$

$

Not available

13

White Outdoor WD-131-1352

NUT - 3/8" - 16 flange lock

$

$

Not available

14

WD-C45403

GUIDE - spring

$

$

Not available

15

WD-C45407

SPRING - compression

$

$

Not available

16

WD-C44383

WASHER - thrust

$

$

Not available
