FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Electrical System Parts Diagram

Front-Mount Riding Mower

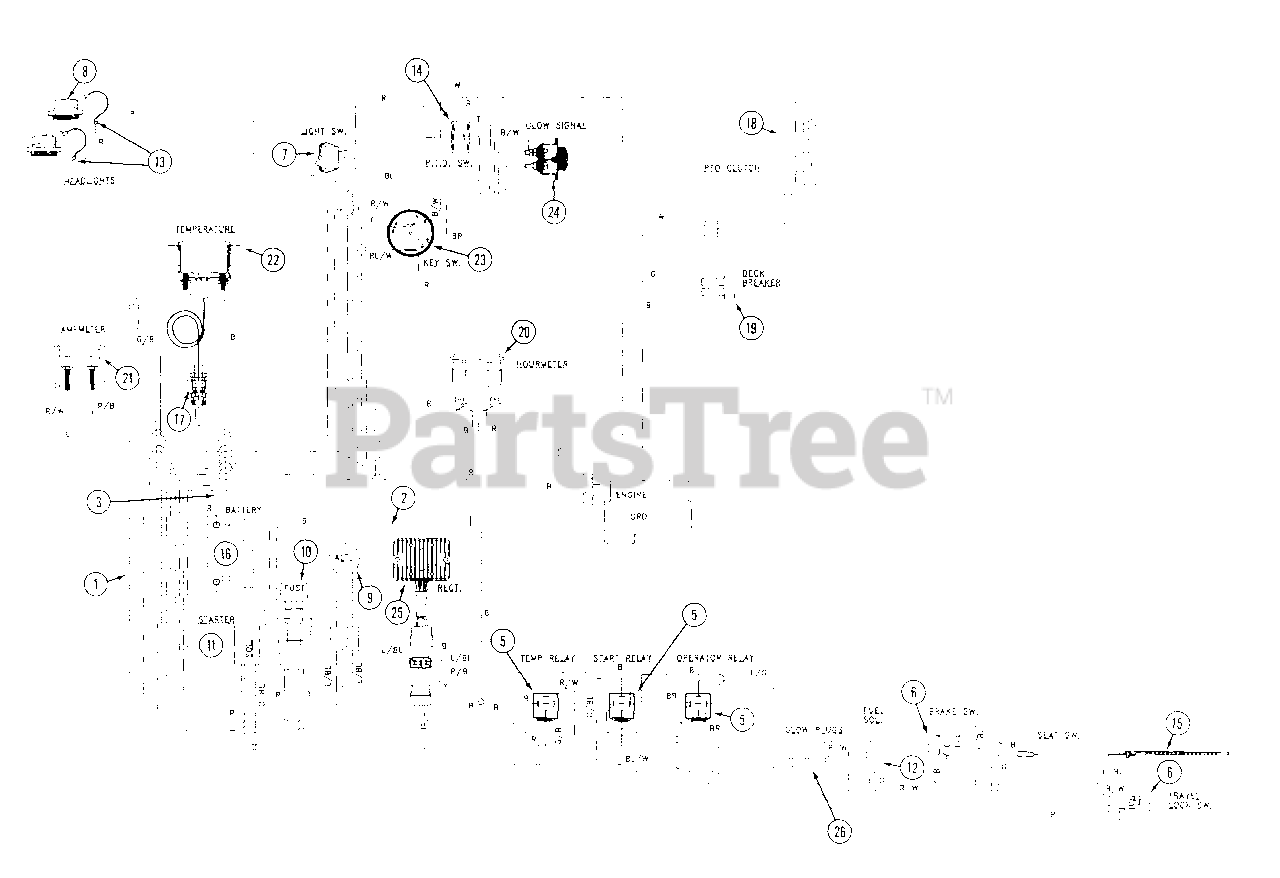

Electrical System Parts Diagram

  • Title

1

WD-C45359

HARNESS main

$

$

Not available

2

WD-C43350

CABLE - battery (-)

$

$

Not available

3

WD-C43349

CABLE - battery (+)

$

$

Not available

?4

WD-C43046

INSULATOR - battery post

$

$

Not available

5

White Outdoor WD-C37515

RELAY

$

$

Not available

WD-182-573

SCREW - #10 - 24 x 1/2" (relay mount)

$

$

Not available

WD-192-18

LOCKWASHER - #10 (relay mount)

$

$

Not available

6

White Outdoor WD-C37521

SWITCH - 2 circuit

$

$

Not available

WD-182-525

SCREW - #10 - 32 x 3/8" (2 circuit switch mount)

$

$

Not available

WD-182-528

SCREW - #10 - 32 x 1/2" (2 circuit switch mount)

$

$

Not available

WD-192-18

LOCKWASHER - #10 (2 circuit switch mount)

$

$

Not available

White Outdoor WD-193-1000

NUT - #10 - 32 lock (2 circuit switch mount)

$

$

Not available

7

White Outdoor WD-C43044

SWITCH - light

$

$

Not available

8

White Outdoor WD-C32178

HEADLIGHT

$

$

Not available

9

WD-C43610

ALTERNATOR

$

$

Not available

10

WD-C31947

KIT - fuse holder

$

$

Not available

White Outdoor WD-C30260

FUSE - 30 amp

$

$

Not available

11

WD-C43609

STARTER

$

$

Not available

12

WD-P185206082

SOLENOID - fuel shut off

$

$

Not available

13

WD-C44169

CONNECTOR - headlight terminal

$

$

Not available

14

White Outdoor WD-C31937

SWITCH - PTO

$

$

Not available

White Outdoor WD-C31620

NUT - 1/2" - 27 black (PTO switch mount)

$

$

Not available

White Outdoor WD-C31619

CAP - PTO switch

$

$

Not available

15

WD-C44012

SWITCH - seat (N.O.)

$

$

Not available

16

WD-C44071

BATTERY - 12 volt, 450 CCA

$

$

Not available

17

WD-C43602

SENDER - temperator, water

$

$

Not available

18

White Outdoor WD-C37511

CLUTCH - PTO, electric

$

$

Not available

19

White Outdoor WD-C37505

BREAKER - circuit, 10 amp

$

$

Not available

20

WD-C42929

HOURMETER

$

$

Not available

21

White Outdoor WD-C29413

AMMETER

$

$

Not available

22

WD-C45363

GAGE - temperatures

$

$

Not available

WD-C45364

TERMINAL - temperature gage

$

$

Not available

WD-C44169

CONNECTOR - temperature gage

$

$

Not available

WD-C31977

CLAMP - temperature tube

$

$

Not available

23

White Outdoor WD-C42829

SWITCH - ignition

$

$

Not available

White Outdoor WD-C42855

KEY - ignition

$

$

Not available

24

White Outdoor WD-C42830

INDICATOR - glow plug

$

$

Not available

25

White Outdoor WD-C42831

REGULATOR - voltage

$

$

Not available

WD-113-17

BOLT - 1/4" - 20 x 1-1/4" (regulator mount)

$

$

Not available

WD-192-19

LOCKWASHER - 1/4" (regulator mount)

$

$

Not available

WD-129-101

NUT - 1/4" - 20 (regulator mount)

$

$

Not available

26

WD-C43603

HEATER - glow plug

$

$

Not available
