FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Engine Mounts Parts Diagram

Front-Mount Riding Mower

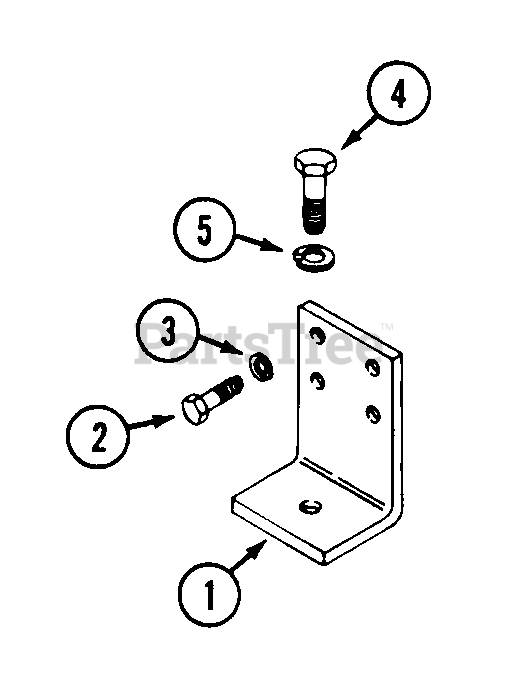

Engine Mounts Parts Diagram

  • Title

1

WD-C45303

BRACKET - engine mount

$

$

Not available

2

WD-814-10025

BOLT - M10 x 1.5 x 25

$

$

Not available

3

WD-192-22

LOCKWASHER - 7/16"

$

$

Not available

4

WD-113-1

BOLT - 1/2" - 13 x 1-1/4"

$

$

Not available

5

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available
