FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Exhaust System Parts Diagram

Front-Mount Riding Mower

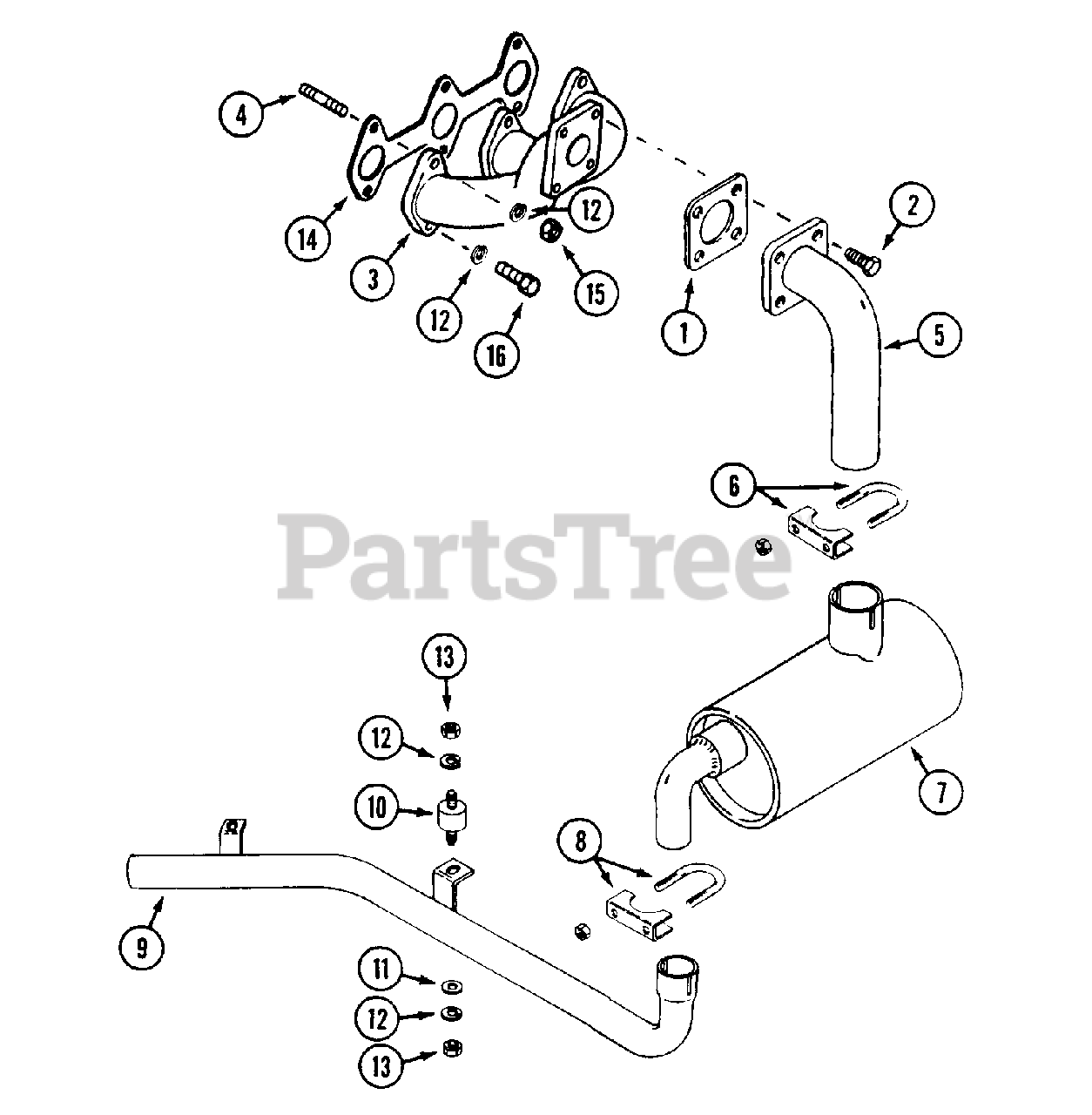

Exhaust System Parts Diagram

  • Title

1

WD-C42833

GASKET - exhaust

$

$

Not available

2

WD-C42834

BOLT - M8 - 1.25 x 25

$

$

Not available

3

WD-C45769

MANIFOLD - exhaust

$

$

Not available

4

WD-C45770

STUD - manifold

$

$

Not available

5

WD-C43135

PIPE - engine to muffler

$

$

Not available

6

WD-C42055

CLAMP - muffler 1-3/4"

$

$

Not available

7

WD-C45461

MUFFLER ASSEMBLY

$

$

Not available

8

White Outdoor WD-C31417

CLAMP - muffler 1-3/8"

$

$

Not available

9

WD-C45444

PIPE - exhaust

$

$

Not available

10

WD-C43012

MOUNT - rubber

$

$

Not available

11

WD-195-518

WASHER - 1/4"

$

$

Not available

12

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

13

WD-129-101

NUT - 1/4" - 20

$

$

Not available

14

WD-C43988

GASKET - manifold

$

$

Not available

15

WD-825-1106

NUT - M6 - 1.0

$

$

Not available

16

WD-814-6025

BOLT - M6 - 1.0 x 25

$

$

Not available
